6 WF 4 TX-Series Maintenance Return a maintained TH 10 min 1 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Machine S…
5 WF 4 TX-Series Maintenance Remove the TH 10 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7; T8, T9, T31, T87
Wear Part: Consumables:
www.asm-smt.com
7 Put the TH into the transport container. 8 Unplug the 3 compressed air connections
from the right head.
9 Disconnect the ribbon cables from the
right head.
10 Remove 3 screws fixing the right head
segment (1) to (3).
11 Hold the head and remove the last screw
and take the head away.
12 Put the TH into transport container.
6 WF 4 TX-Series Maintenance Return a maintained TH 10 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T87
Wear Part: Consumables:
www.asm-smt.com
1 Take the right side head segment out of
the transport box.
2 Place the segment head holder and fix it
slightly with one screw.
3 Fix the screws position (1) to (3) slightly.
4 Fasten the screws (1) to (4) with 2,7 Nm. 5 Connect the ribbon cables. 6 Connect the 3 compressed air connec-
tions.

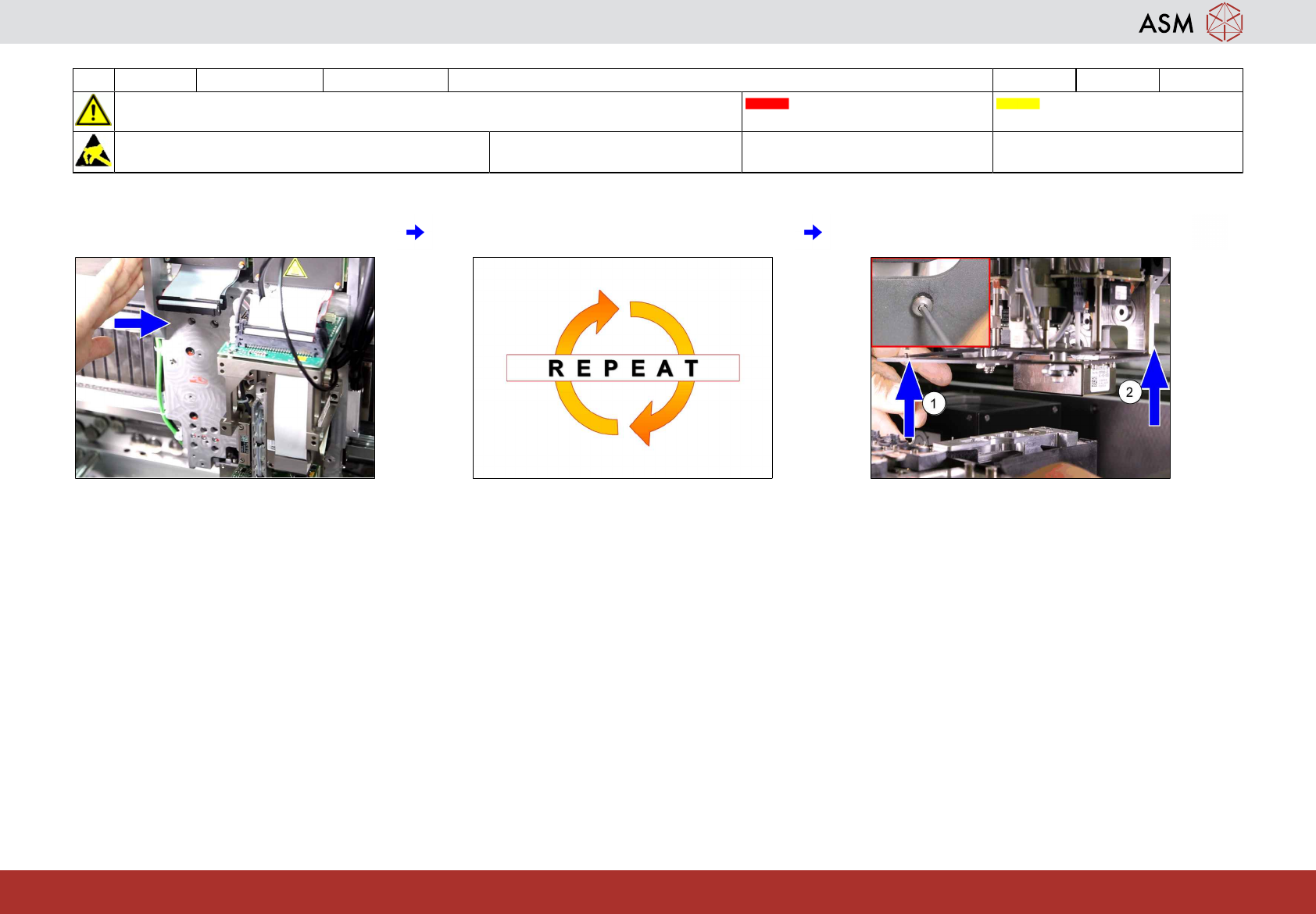

6 WF 4 TX-Series Maintenance Return a maintained TH 10 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T87
Wear Part: Consumables:
www.asm-smt.com
7 Move the gantries to a good working posi-
tion.
8 Repeat steps 1 to 7 for the left head seg-
ment.
9 Mount the camera visual shield: TH.
