3 Technical data User Manual SIPLACE HF Series 3.8 Dimensions and weight of the placement mach ine Software Version SR. 505.xx 05/2004 US Edition 114 3.8 Dimensions and weight of the placement mac hine 3.8.1 Dimensi ons …
User Manual SIPLACE HF Series 3 Technical data
Software Version SR.505.xx 05/2004 US Edition 3.7 Electrical and pneumatic connection points
113
3.7.2 Pneumatic connection point

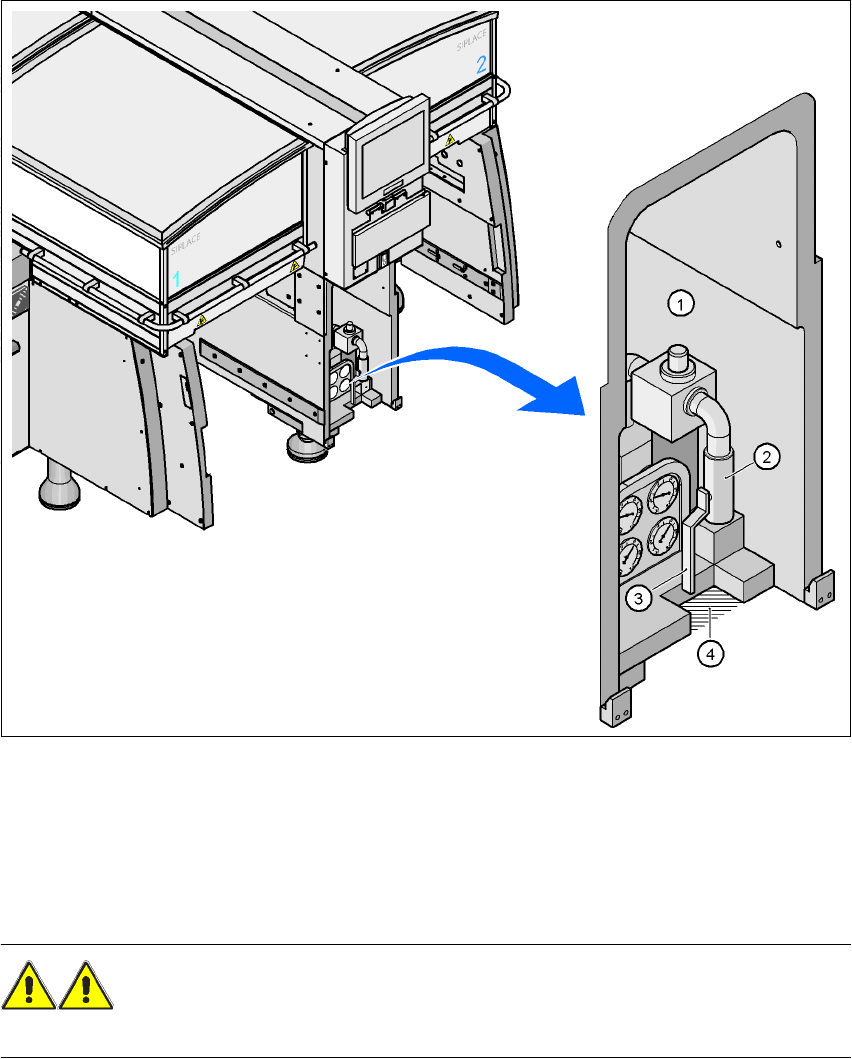

Fig. 3.7 - 2 Pneumatic connection point on the placement machine
3
(1)Pneumatic unit
(2)Coupling for connecting the compressed air hose
(3)Stop valve
(4)Recess for the air hose
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 3
3 Technical data User Manual SIPLACE HF Series
3.8 Dimensions and weight of the placement machine Software Version SR.505.xx 05/2004 US Edition
114
3.8 Dimensions and weight of the placement machine
3.8.1 Dimensions of the HF placement machine
3

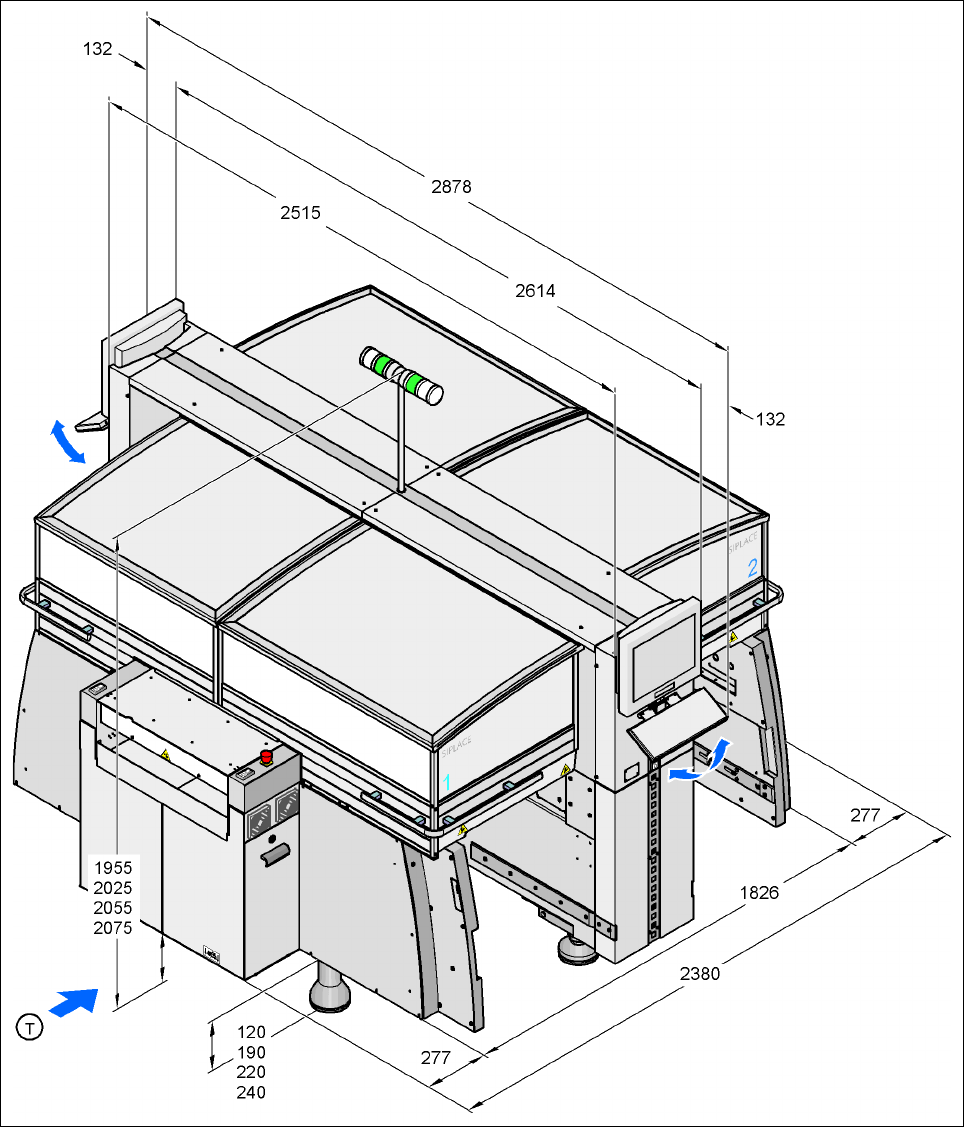

Fig. 3.8 - 1 Dimensions of the HF placement machine (basic machine) in millimeters
User Manual SIPLACE HF Series 3 Technical data
Software Version SR.505.xx 05/2004 US Edition 3.8 Dimensions and weight of the placement machine
115
3.8.2 Dimensions of the HF/3 placement machine
3
3
3
3

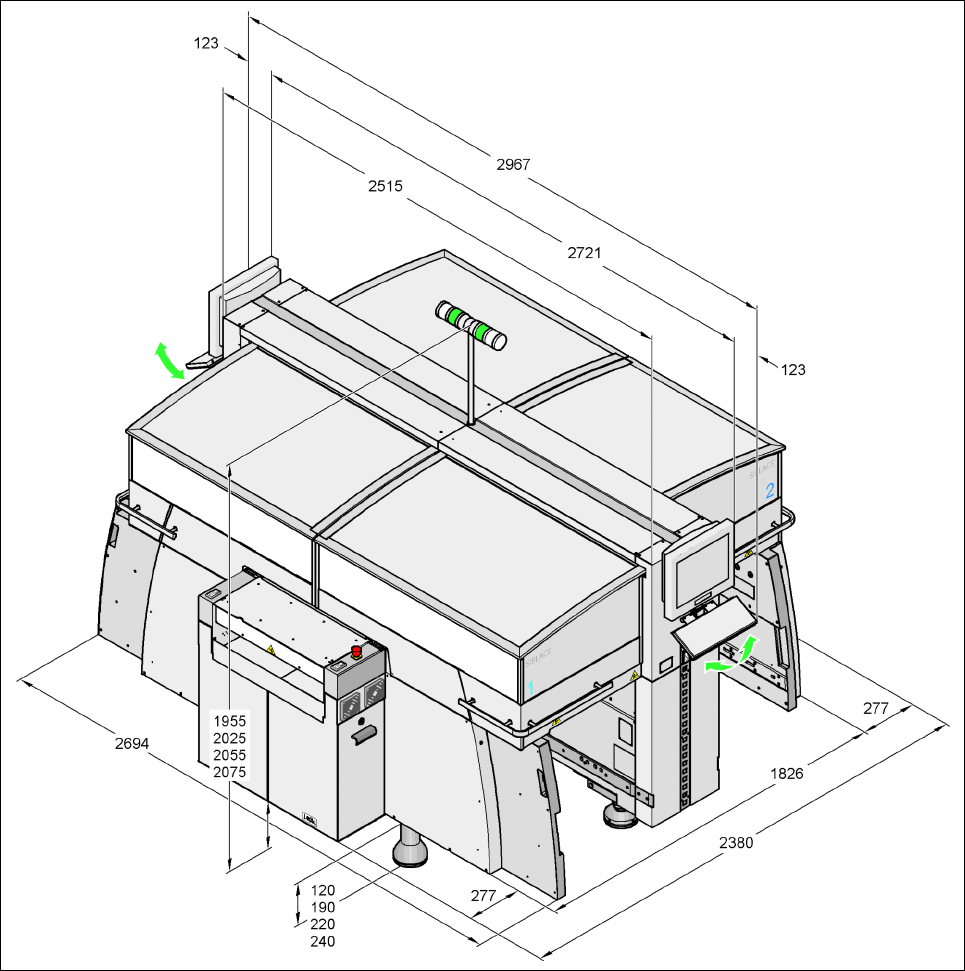

Fig. 3.8 - 2 Dimensions of the HF/3 placement machine (basic machine) in millimeters
