4.5 Setting up the placement machine
4.5.1 PCB transport height on the machine
The machine can be set to the following PCB transport heights:
830 mm ± 15 mm Standard height 4
900 mm ± 15 mm SMEMA height 4
930 mm ± 15 mm SMEMA height 4
950 mm ± 15 mm SMEMA height 4
NOTE
The PCB transport height is the distance between the top edge of the PCB conveyor and the bot-
tom edge of the machine feet.
4.5.2 Warning instructions
DANGER
Only SIEMENS engineers or qualified people are permitted to set up and commission the place-
ment machine.
Æ Always follow the applicable accident prevention regulations.
Æ Never lie beneath the machine in order to attach the machine feet. All the modules and parts
can be fitted from the spaces for the component feeder tables. If you nevertheless have to carry
out assembly work underneath the machine, then you must secure the machine by suitable
means. The fork-lift must not be used as the only support.
Æ Make sure that the gantries are positioned over the PCB conveyor area so that you do not re-
strict your head movement during assembly, thus excluding the risk of injury.
Æ Two people will be needed to adjust the height of the placement machine:
– one person to carry out the necessary assembly work,
– the other person to watch the raised machine during assembly and ensure that it does not
move.
Æ Wear special safety boots to protect your feet. Each machine foot weighs 6.75 kg.
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.5 Setting up the placement machine
163
4.5.3 Tools and equipment
You will need the following tools and equipment to adjust the height of your placement machine:
– Open-ended spanner 17 / 19, item no. 00096278-01
Size 17 for detaching the air connection on the docking unit cylinder 4
– Open-ended spanner 30 / 36, item no. 00096286-01
Size 36 for the hexagon head screw M24x80 for adjusting the height of the machine feet4
– Single-ended spanner, size 65, item no. 00353827-01
Size 65 for the hexagon lock nut M24 on the "HS50" machine foot" 4
– Allen key, size 10, item no. 00373926-01
for hexagon socket head screws M12x80 for fixing the spacers 4
– Allen key, size 14, item no. 00373927-01
for hexagon socket head screw M16x90 for fixing the block for adjusting the height of the
machine feet 4
– Allen key, size 19, item no. 00373928-01
for hexagon socket head screw M24x90 for clamping the machine feet clamps 4
–Fork-lift
Fork length: min. 1800 mm 4
Lifting power: min. 6000 kg 4
Clear width between forks: see Fig. 4.5 - 1
4
– Machine spirit level: Accuracy 0.02 mm/m
– Air cushion transport system: SIPLACE HSxx, order no. 00119002-01
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
164
4.5.4 Presetting the PCB transport height
Æ Push the forks of the fork-lift under the placement machine, as shown in Fig. 4.5 - 1.
4

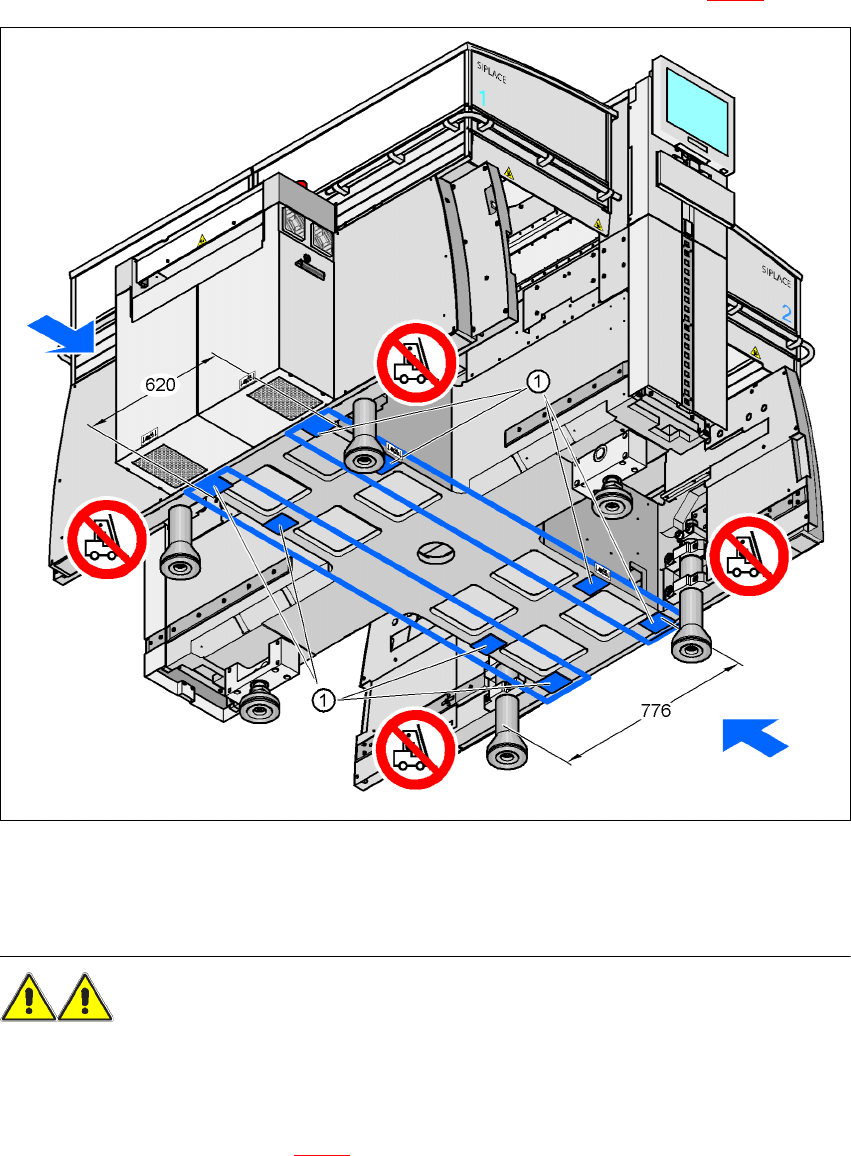

Fig. 4.5 - 1 Contact surfaces - Forks parallel to the direction of PCB transport
(1) Contact surfaces for the forks of the fork-lift
WARNING
Please note the following points
before
you raise the placement machine in order to avoid irre-
versible damage to the machine:
– Open the forks just wide enough to position them between the two machine feet (the attach-
ment points are shown in Fig. 4.3 - 2
). The machine feet are 776 mm apart. NEVER increase
the distance between the forks so that the machine is lifted on the side parts of the machine
