User Manual SIPLAC E HF Series 4 Setting up and commissioning Software Version SR.505.xx 05/2004 US Edition 4. 5 Setting up the placement machine 177 4.5.7.6 Inst alling the "bottom" hand guard The mac hines fr…
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
176
4.5.7.4 Connecting the power cables
4
4.5.7.5 Fitting the grounding cable for the doors
Æ Fix the two grounding cables for the doors (item 4 in Fig. 4.5 - 7) to the machine frame as fol-
lows:
4

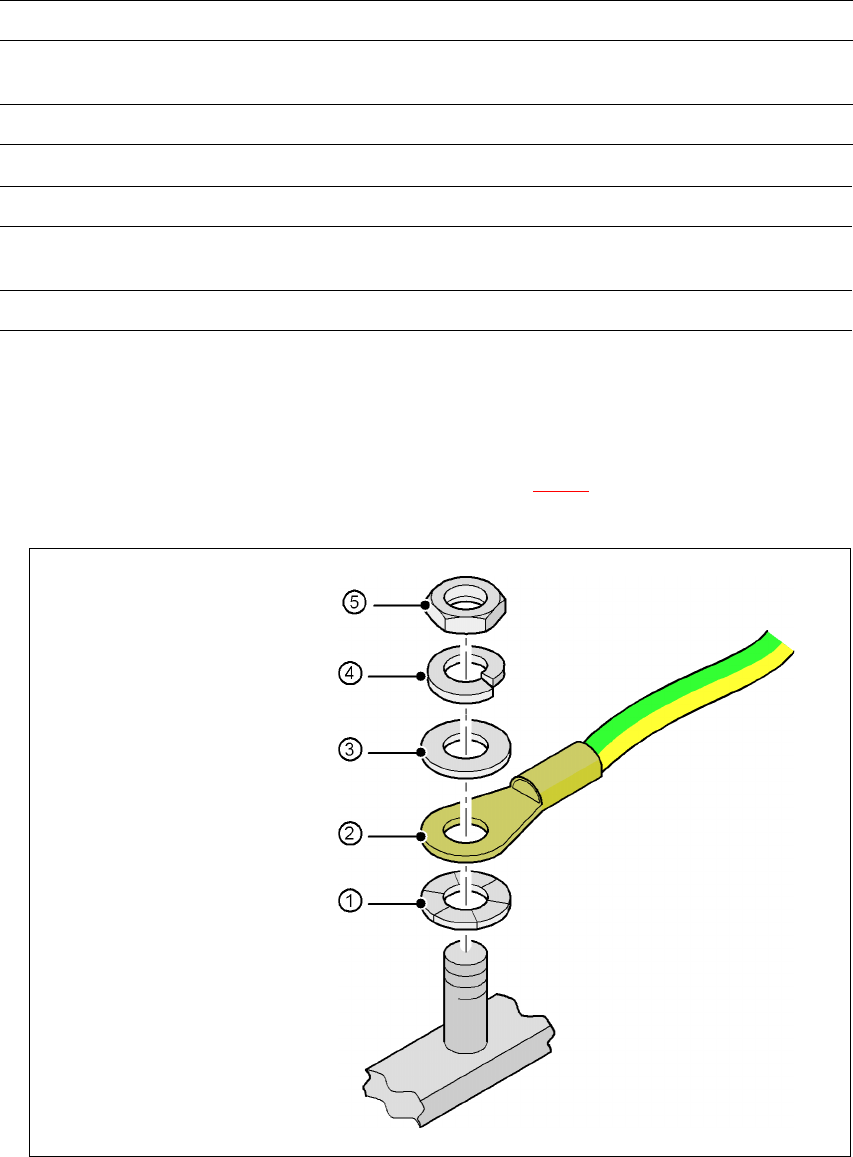

Fig. 4.5 - 8 Fitting the grounding cable
Left side of the extension kit with Connector/cable To connector/cable
Start/Stop button /
Switch on PCB cover flap
X61/03004703 X61/03002537
Protective cover switch, location 4 X54/03006476 X54/03002540
Right side of the extension kit with Connector/cable To connector/cable
Emergency stop button
Start/Stop button
X64/03004704 X64/03002538
Protective cover switch, location 1 X51/03006476 X51/03002539
Hex nut M5
Spring washer M5, DIN 7980
Washer M5, DIN 125
Cable lug, annular
Contact washer
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.5 Setting up the placement machine
177
4.5.7.6 Installing the "bottom" hand guard
The machines from the HF series are supplied with just
one
"bottom" hand guard. If the machines
are installed within a line, then no hand guard is required between immediately adjacent output
and input conveyors.
WARNING
Always fit the "bottom" hand guard (part no. 03003432-01) on the input side of the
first
placement
machine and on the output side of the
last
placement machine of a line using 4 hexagon socket
head screws M4x12. This will prevent your personnel reaching into the machine without authori-
zation.
4
Fig. 4.5 - 9 Fitting the "bottom" hand guard on
the PCB input side
(1)"Bottom" hand guard,
part no. 03003432-01
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
178
4.5.8 Installing the computer unit on HF and HF/3
4.5.8.1 Computer unit - electrical connection points
4
Fig. 4.5 - 10 Computer unit, front panel - Connecting the plugs
(1) Cable guide plate
