4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
186
4.5.10 Fitting the output conveyor
4.5.10.1 Tools
– Allen keys, DIN 911, set
– Phillips screwdriver, size 1
4.5.10.2 Assembly
4

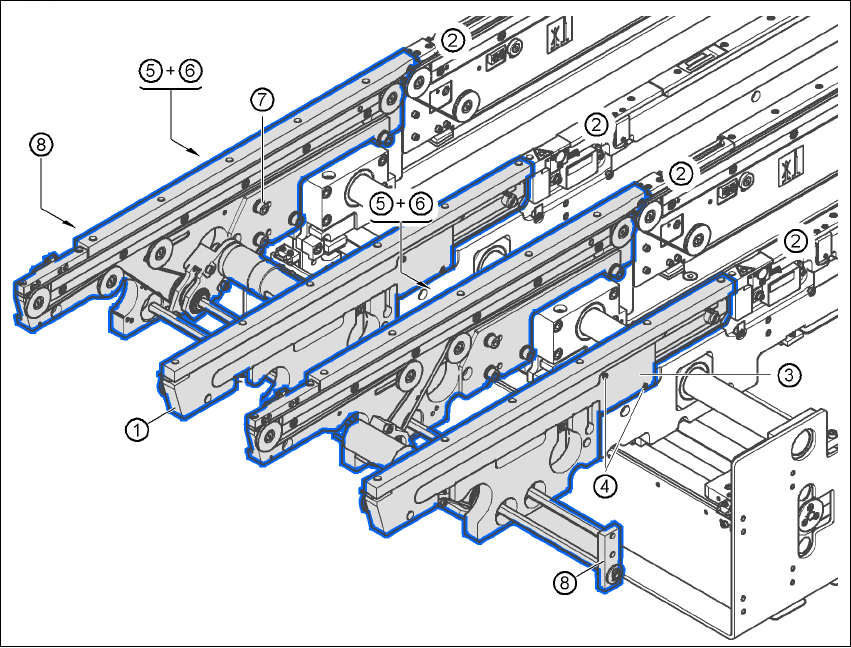

Fig. 4.5 - 13 Output conveyor - dual conveyor
4
(1) Output conveyor, panel
(2) Processing conveyor 2, panel
(3) Cable cover 20 x 200
(4) Countersunk screw, ISO 7046, M3x6, 2x per cable cover
(5) Cable cover 20 x 310
(6) Fillister head screw DIN 912, M3x5, 1x per cable cover
(7) Fillister head screw DIN 912, M6x16, and washer, 4x per panel
(8) Guide for hexagonal shaft
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.5 Setting up the placement machine
187
Æ Remove the cable covers (items 3 and 5 in Fig. 4.5 - 13) from the panels (item 1 in Fig. 4.5 -
13) of the output conveyor.
Æ Carefully place the panel (item 1 in Fig. 4.5 - 13) against the panel on the processing conveyor
(item 2 in Fig. 4.5 - 13
).
CAUTION 4
Be careful not to cut through any of the light barrier or drive motor cables.
Æ Fix each panel using 4 fillister head screws M6x16 and the associated washers (item 7 in Fig.
4.5 - 13
).
Æ Connect the power cable to the light barriers and drive motors.
Æ Fix the cable covers in place (item 3 and 5 in Fig. 4.5 - 13).
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
188
4.5.11 Fitting the extension kit on the PCB output side
4.5.11.1 Tools
– Allen keys, DIN 911, set
– Machine key
4.5.11.2 Assembly
4
Fig. 4.5 - 14 Fitting the extension kit on the PCB output side
(1) Extension kit
(2) Doors
(3) Fillister head screw DIN 912, M6x16 and washer
(4) Ground connection
(5) Cover
(6) Drawer unit rail
(7) Axis unit (HF) or axis unit, gantry 3 (HF/3)
