4.5.14.1 Positioning the fork-lift
4

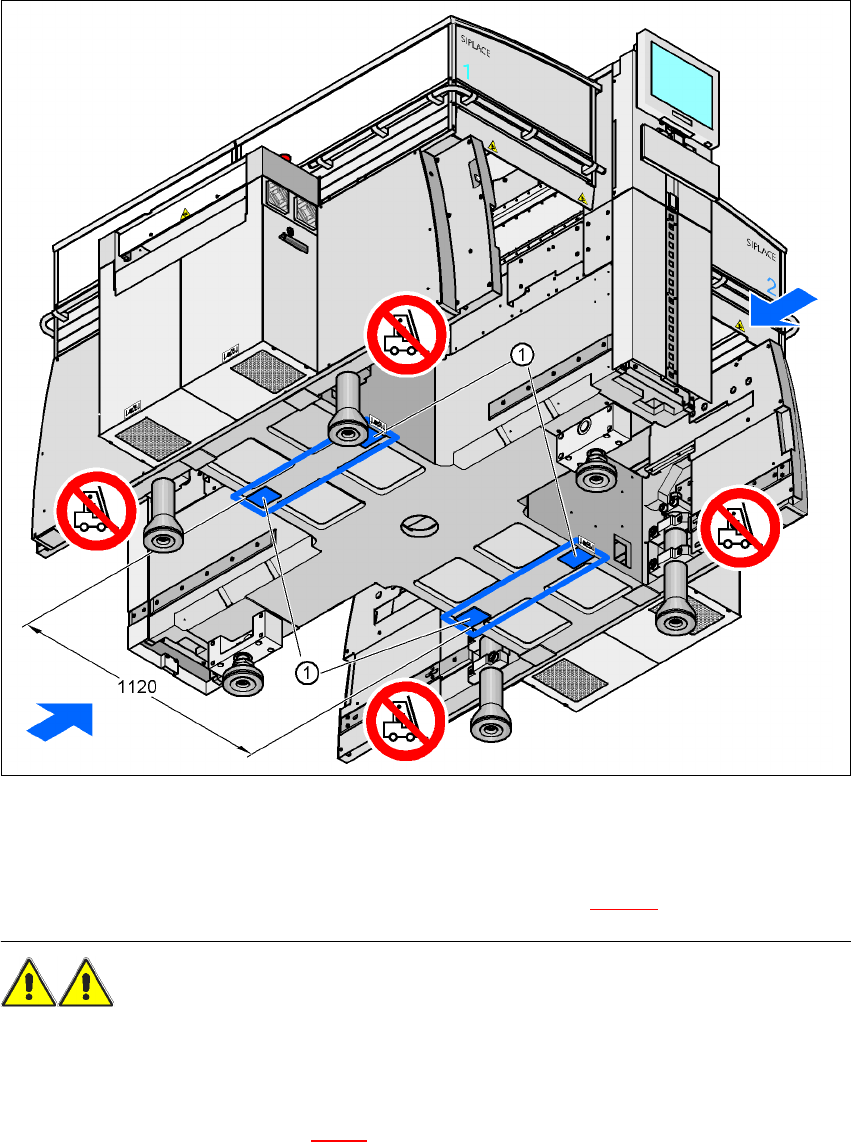

Fig. 4.5 - 19 Contact surfaces - Forks across the direction of PCB transport
(1) Contact surfaces for the forks of the fork-lift
Æ Position the fork-lift across the direction of PCB transport and open the forks far enough so that
the machine's contact surface lies evenly on the forks (see Fig. 4.5 - 19
).
WARNING
Please note the following points
before
you raise the placement machine in order to avoid irre-
versible damage to the machine:
– The distance between the forks must be between 800 and 900 mm. The attachment surfaces
for the fork-lift are shown in Fig. 4.3 - 3
. The maximum distance between the contact surfaces
is 1120 mm. NEVER increase the distance between the forks so that the machine is lifted on
the side parts of the machine frame, since this would deform the machine frame.
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
198
Æ Make sure that the forks are evenly loaded when you lift the machine. A firm support between
the forks and placement machine will prevent the machine tilting when it is raised. This will also
prevent a one-sided load on the machine feet, which would deform the fixing of the machine
feet. We recommend that a second person watch the machine as it is raised, and make sure
that the machine does not tip to one side when lifted with the fork-lift.
4.5.14.2 Points that MUST be noted when transporting the machine
WARNING
When you are transporting the machine, make sure that
all
the feet are clear of the floor. If they
are not clear, the feet will drag along the floor or bump into obstacles. This could damage the
machine foot fixing in the machine frame.
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.5 Setting up the placement machine
199
4.5.14.3 Aligning the placement machine with respect to the line
Æ Position the placement machine on the free location on the line using the fork-lift.
WARNING 4
Lower the placement machine slowly. A second person should look underneath to ensure
that all the machine foot touch the floor at the same time. If the machine feet on one side hit
the ground hard, the fixings may be damaged.
4
4.5.14.4 Aligning the placement machine with the air cushion transport system
Æ Place the four air cushions of the air cushion transport system beneath the machine frame.
Æ Raise the placement machine and align it with respect to the line.
Æ Check the distance from the PCB conveyor system of the adjacent machine. It should be be-
tween 1 mm and 3 mm.
Æ Lower the placement machine.
4

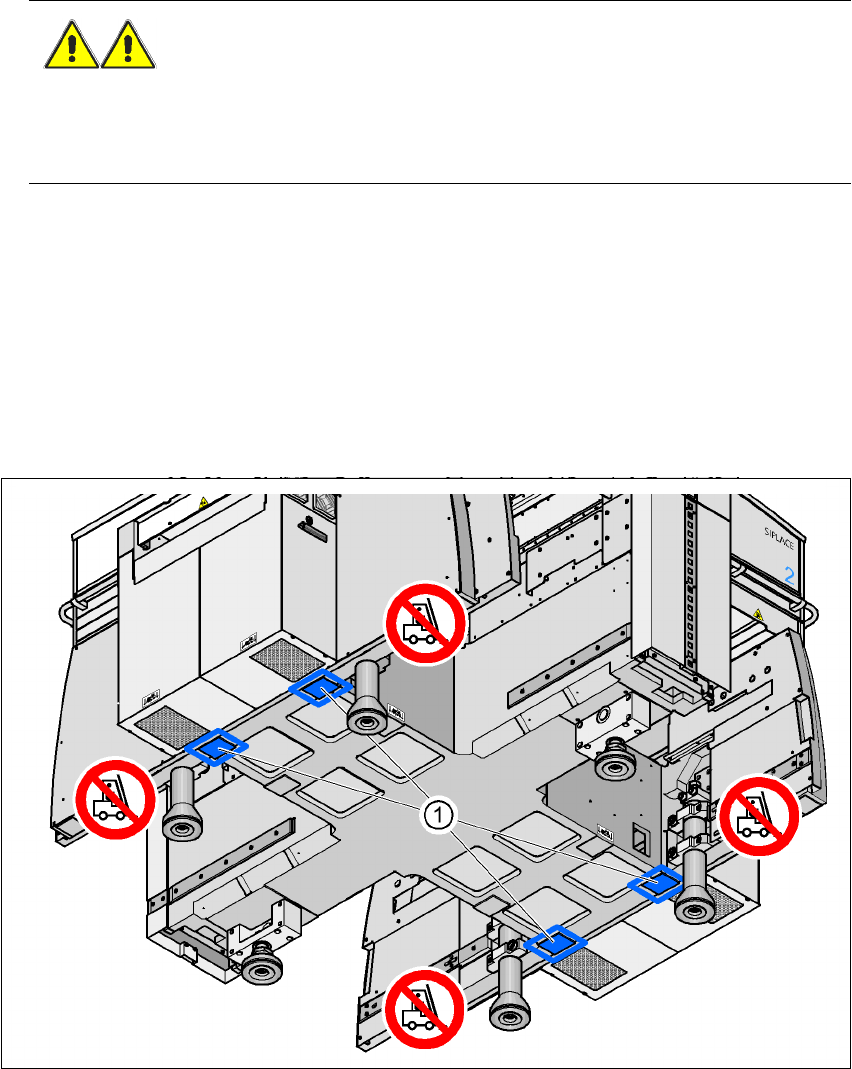

Fig. 4.5 - 20 Contact positions for the air cushion transport system
(1) Contact surfaces for the air cushion transport system
