4.5.15 Making final adjustments to the placement machine
Æ Place the machine's spirit level on the panels of the PCB conveyor in placement area 1 in both
the X and the Y directions (see Fig. 4.5 - 21
). The PCB conveyor width is set to 136 mm by
default.
PLEASE NOTE: 4
On the dual conveyor, place the spirit level only on the outer panels of the machine for ad-
justing in the X direction.
Æ Measure the distance between the top edge of the PCB conveyor and the floor. This distance
should be 800 mm, 900 mm, 930 mm or 950 mm.
4

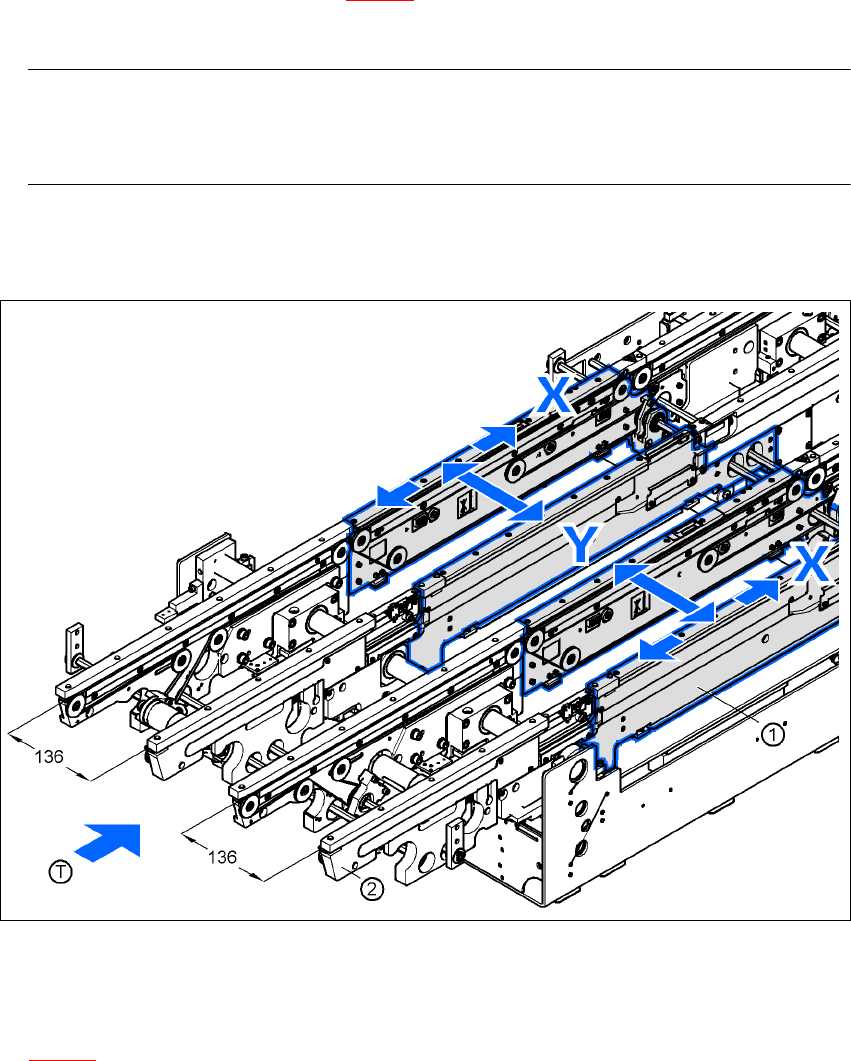

Fig. 4.5 - 21 Adjusting the placement machine in the X and Y directions
4
4
Æ Use the size open-ended spanner to adjust the hexagon head screw M24x80 (item 1 in Fig.
4.5 - 22
) so that the label on the machine spirit level does not deviate from the zero point for
the requested PCB transport height.
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.5 Setting up the placement machine
201
NOTE
If the machine is set to a PCB transport height of 830 mm and the component trolley docking unit
is fitted in the front position (see Fig. 4.5 - 24
), then the hexagon head screw M24 x 80 (item 1 in
Fig. 4.5 - 24
) is covered by the cylinder air connection (item 3 in Fig. 4.5 - 24) for the component
trolley docking unit.
Æ You should therefore remove the air connection (item 4 in Fig. 4.5 - 24) in order to carry out the
adjustment.
4

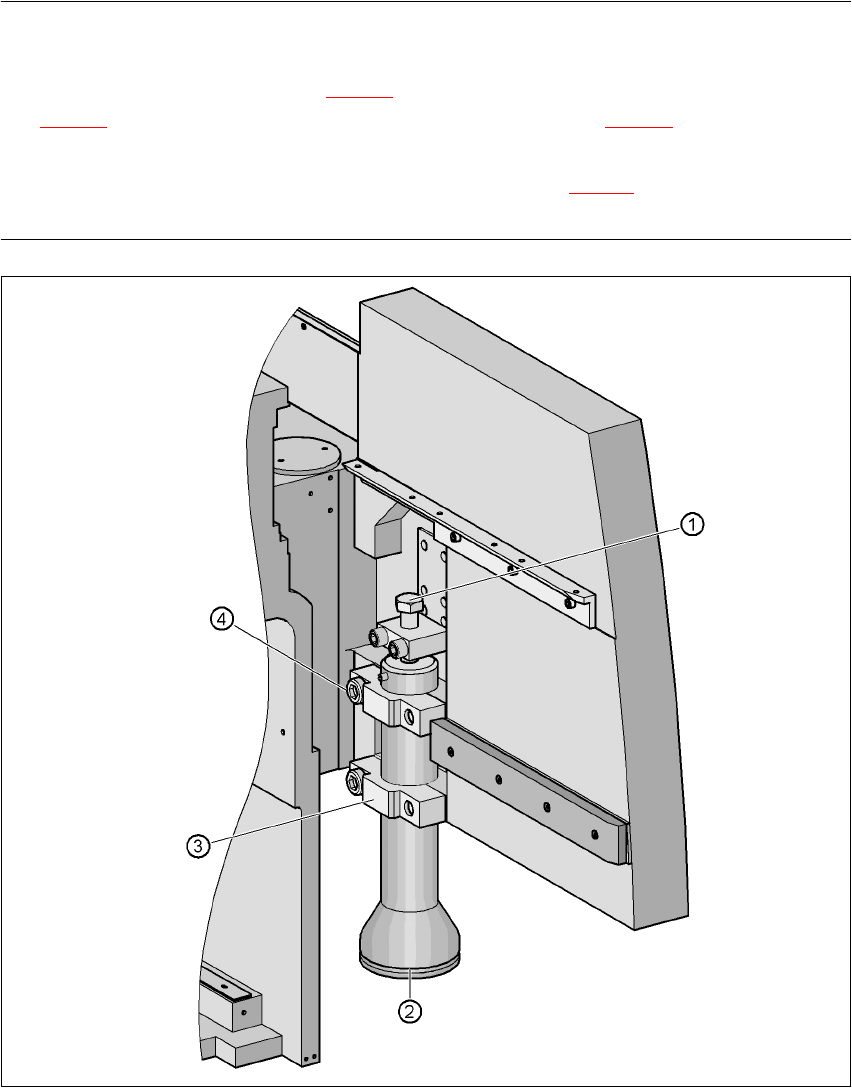

Fig. 4.5 - 22 Adjusting the height of the machine feet
(1) Hexagon head screw M24x80 for adjusting the height
(2) Machine foot
(3) Clamp
4 Setting up and commissioning User Manual SIPLACE HF Series
4.5 Setting up the placement machine Software Version SR.505.xx 05/2004 US Edition
202
(4) M24x90 hexagon socket head screw
Æ Check the required PCB transport height.
Æ If the placement machine has been aligned, use the size 19 Allen key to tighten the hexagon
socket head screws M24x90 (Pos. 4) for holding the clamps on all the machine feet (item 3).
Æ Unscrew the "HS50" machine foot until it is seated firmly on the ground.
Æ Make sure that you do not unscrew the "HS50" machine foot so far that the machine is no
longer adjusted.
4
4
4
4
4
4
4

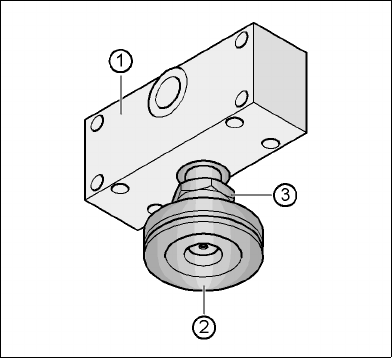

Fig. 4.5 - 23 Aligning and locking the "HS50" machine foot
(1) spacer
(2) "HS50" machine foot
(3) M24 lock nut
4
Æ Use the spirit level to ensure that the placement machine is precisely aligned.
Æ Fix the air connection to the cylinder of the docking unit if you previously removed it in order to
adjust the PCB transport height of 830 mm.
Æ Use the size 65 open-ended spanner to tighten the M24 lock nut (item 4).
