5 Tasks on the machine User Manual SIPLACE HF Series 5.3 Carrying out a walk-through inspection Software Version S R.505.xx 05/2004 US E dition 216 5.3.5 Using spi ndles for large t ape reels Æ Inser t spindl es into th …
User Manual SIPLACE HF Series 5 Tasks on the machine
Software Version SR.505.xx 05/2004 US Edition 5.3 Carrying out a walk-through inspection
215
5

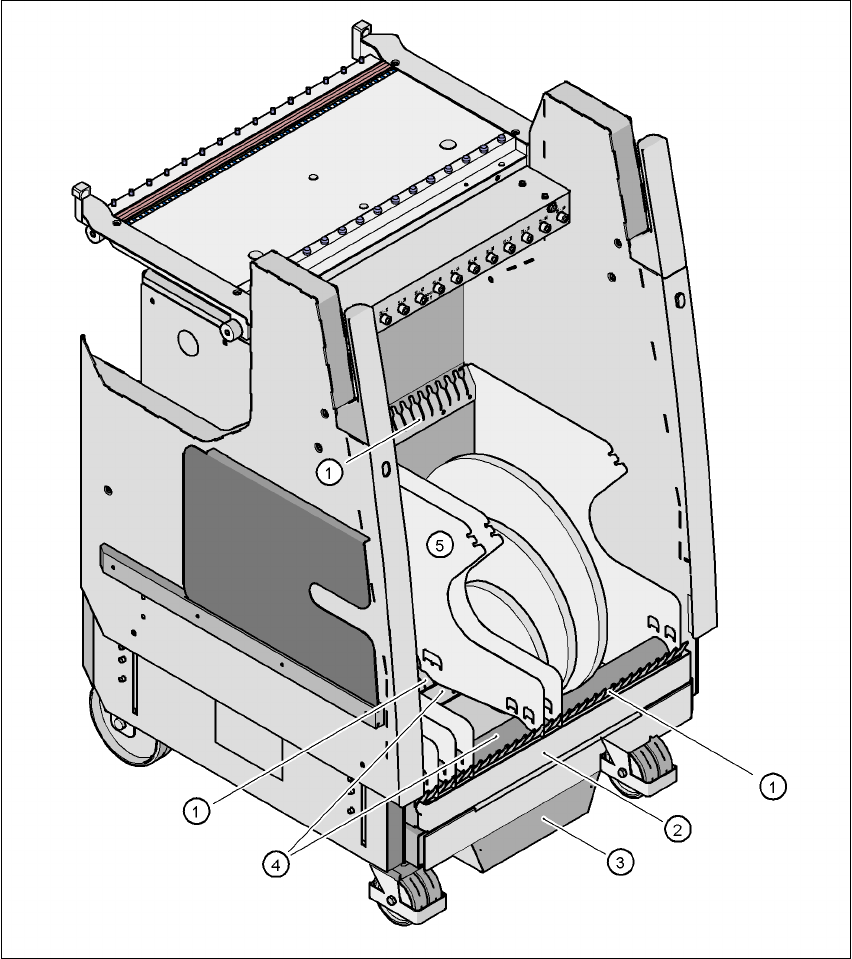

Fig. 5.3 - 2 Dividing plates in the tape container
(1) Guide rail for the dividing plates
(2) Tape container
(3) Waste tape container
(4) Supporting rods for the dividing plates
(5) Dividing plate
5 Tasks on the machine User Manual SIPLACE HF Series
5.3 Carrying out a walk-through inspection Software Version SR.505.xx 05/2004 US Edition
216
5.3.5 Using spindles for large tape reels
Æ Insert spindles into the dividing plates when using large tape reels.
PLEASE NOTE
We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure that
the feeders operate reliably.
Fig. 5.3 - 3 Inserting spindles for large reels
5
(1) Component trolley
(2) Position of the spindles
(3) Dividing plate
(4) Spindle (enlarged)
User Manual SIPLACE HF Series 5 Tasks on the machine
Software Version SR.505.xx 05/2004 US Edition 5.4 Setting up the feeders
217
5.4 Setting up the feeders
5

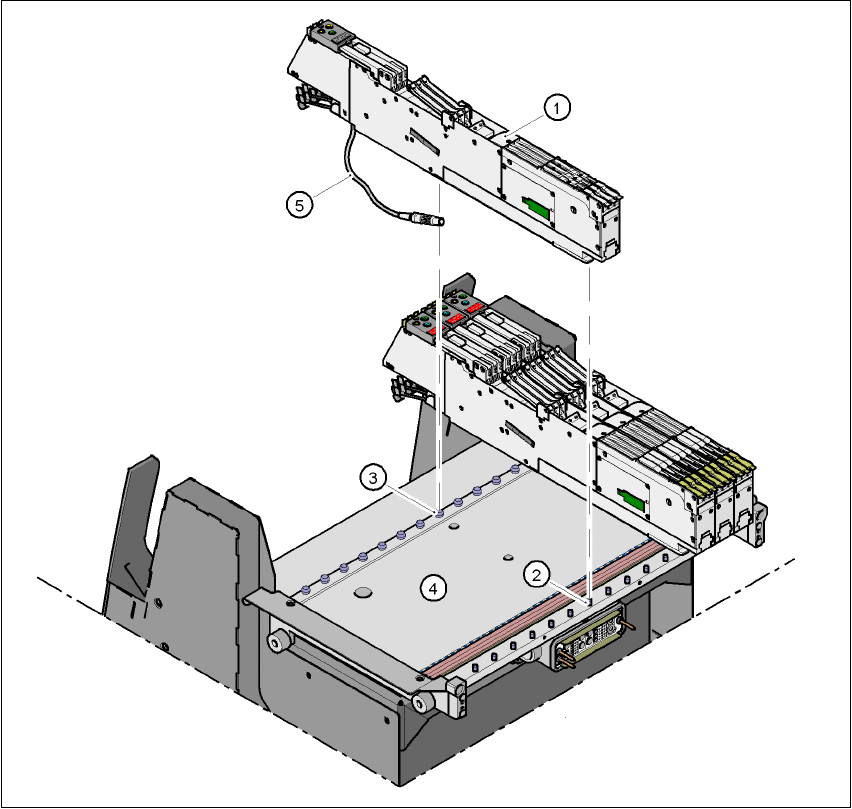

Fig. 5.4 - 1 Component feeder table with 15 locations for feeders
(1) Feeder
(2) Centering pin
(3) Centering ball
(4) Component feeder table
(5) Feeder connecting cable
