5.9 Docking the component trolley in or out

5.9.1 Safety instructions for docking component trolleys in and out

WARNING

To prevent accidents (risk of crushing), the component trolley may only be docked in or out by

one person.

The safety concept for the component trolley change requires the operator to press two buttons

at the same time in order to dock in the component trolley. One button is beneath the protective

cover, while the other is on the hand guard side (items 1 and 2 in Fig. 5.9 - 1

). This ensures that

the operator is always standing to the side of the placement machine. The operation always re-

quires the use of both hands, thus preventing the risk of injury to the hands.

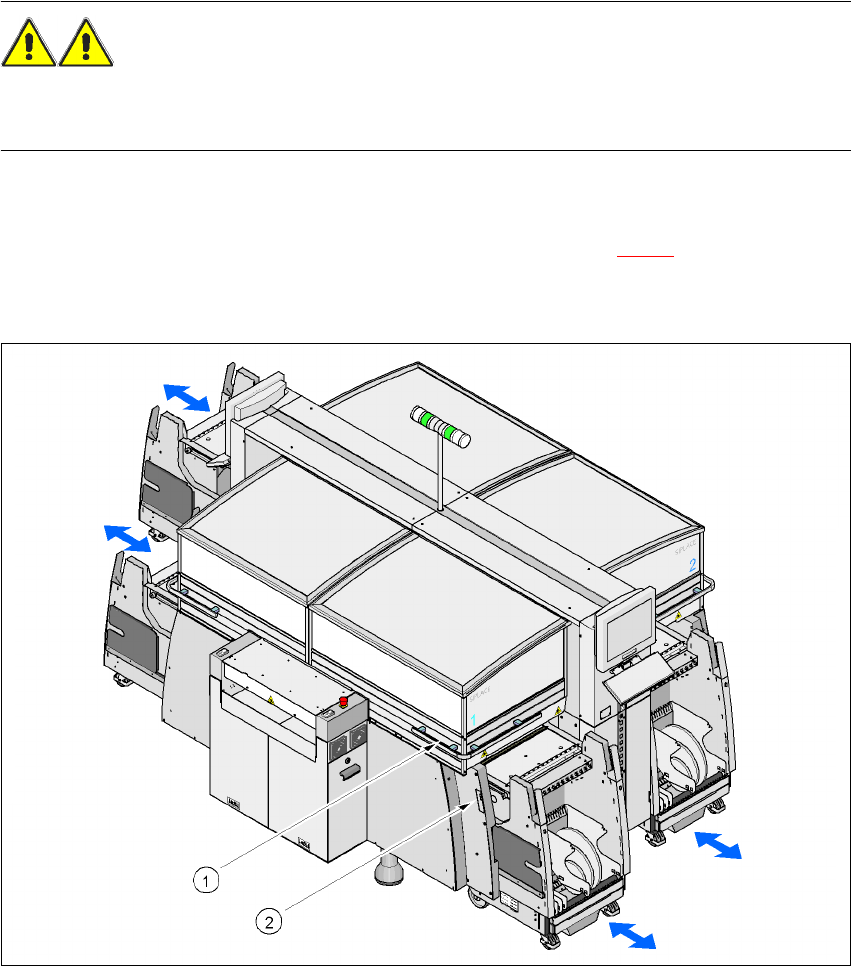

Fig. 5.9 - 1 Safety instructions for docking the component trolley in or out

(1) Button on top of the hand guard beneath the protective cover

(2) Button, on the side of the hand guard

5 Tasks on the machine User Manual SIPLACE HF Series

5.9 Docking the component trolley in or out Software Version SR.505.xx 05/2004 US Edition

226

5.9.2 Docking out the component trolley

Æ Click on the STOP PROCESSING PCB icon in the MAIN VIEW menu.

The PCB in progress will be completed. The icons of the SINGLE FUNCTIONS menu will

then be activated. 5

Æ Click on the desired SINGLE FUNCTIONS GANTRY X icon (gantry 1 or 2).

Æ Select GANTRY FUNCTIONS.

Æ From this menu, click on the GO TO SET-UP POSITION button.

The selected placement head will move across the PCB transport to prevent it being dam-

aged when the component trolley is changed. 5

Æ Take hold of the protective cover by the handle and open the cover.

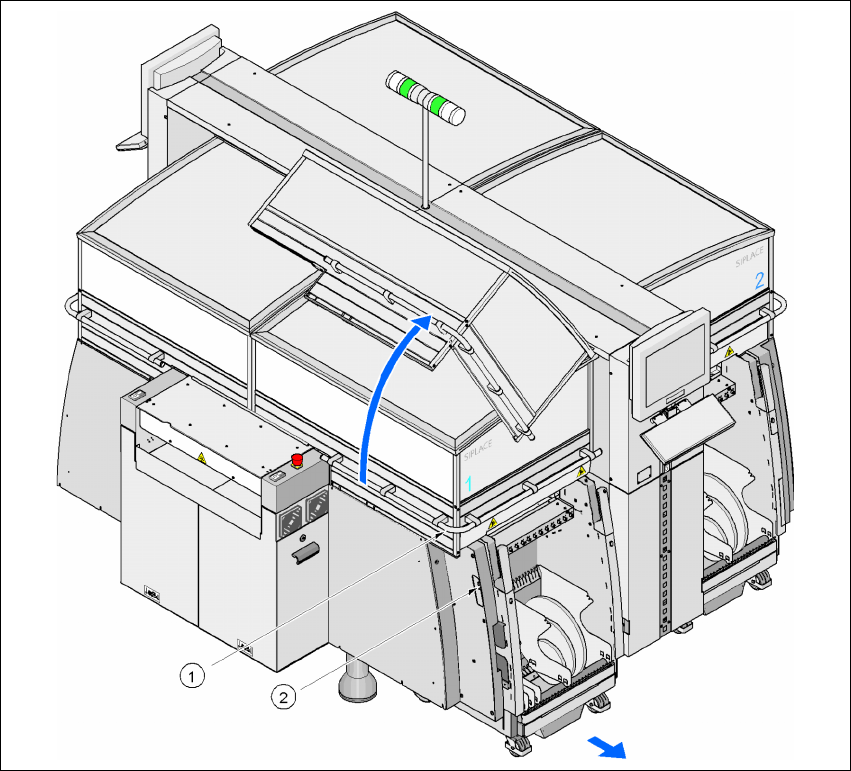

Fig. 5.9 - 2 Docking out the component trolley

(1) Button underneath the protective cover

(2) Button on the hand guard

User Manual SIPLACE HF Series 5 Tasks on the machine

Software Version SR.505.xx 05/2004 US Edition 5.9 Docking the component trolley in or out

227

Æ Press the button on the top of the hand guard (item 1) until the component trolley is docked out.

Æ Pull out both transport handles (item 1) on the component trolley, and swivel the handles in-

wards (see Fig. 5.9 - 3

). The handles are then locked in place.

Fig. 5.9 - 3 Component trolley - Pulling out the push handles

Æ With both hands on the handles, pull the component trolley out of the placement machine.

5.9.3 Safety instructions for moving the component trolley

WARNING

To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-

ley.

Æ Always hold the handles with both hands when you want to move the component trolley.

Æ Remember that a component trolley with the full complement of feeders can tip over sideways

or forward on gradients of 20° or more.

Æ Make sure that the surface on which the trolley is moved has a significantly smaller gradient.

Æ Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast enough.
