6 Component handling User Manual SIPLACE HF Series 6.2 Technical data f or the feeders Software Version SR.505.xx 05/2004 US Edition 238 6.2.4 12/ 16 mm S feeder Fig. 6.2 - 4 12/16 m m S feeder Item no. 00141092- xx 6 Wi…
User Manual SIPLACE HF Series 6 Component handling
Software Version SR.505.xx 05/2004 US Edition 6.2 Technical data for the feeders
237
6.2.3 3x8mm S feeder for 0201/0402 components
6

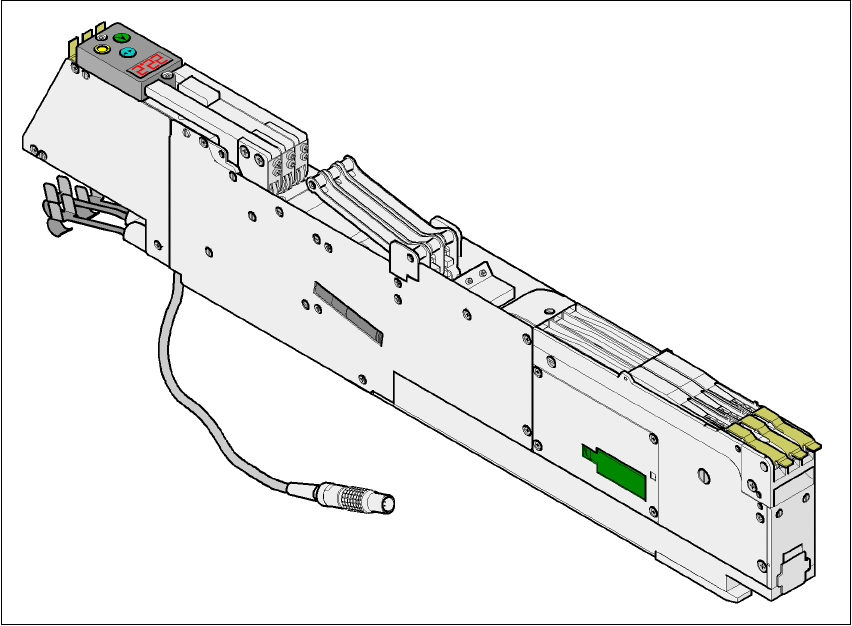

Fig. 6.2 - 3 3x8mm S feeder for 0201/0402 components
6
Item no. 00141099-xx 6
Width 30.6 mm 6
Component range 0201, 0402 6
Tracks per feeder 3 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components for 7" reels approx. 10,000 to 15,000 6
Transport distance (variable) 2mm / 4mm 6
6 Component handling User Manual SIPLACE HF Series
6.2 Technical data for the feeders Software Version SR.505.xx 05/2004 US Edition
238
6.2.4 12/16 mm S feeder

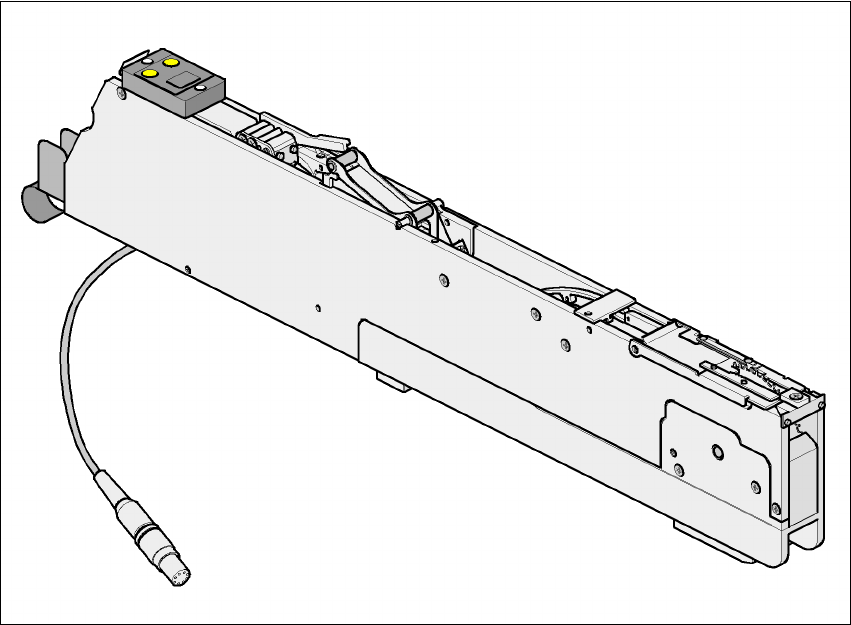

Fig. 6.2 - 4 12/16 mm S feeder
Item no. 00141092-xx 6
Width 30.6 mm 6
Tracks per feeder 1 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components for 7" reels approx. 4000 6
Transport distance (variable) 4mm, 8mm, 12mm, 16mm 6
User Manual SIPLACE HF Series 6 Component handling
Software Version SR.505.xx 05/2004 US Edition 6.2 Technical data for the feeders
239
6.2.5 12 mm S feeder for capacitors based on powdered metal, model C/D
Fig. 6.2 - 5 12 mm S feeder for capacitors based on powdered metal, model C/D
Item no. 00141118-xx 6
Width 30.6 mm 6
Tracks per feeder 1 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components for 7" reels approx. 4000 6
Maximum tape height 3.6 mm 6
Transport distance (variable) 4mm, 8mm, 12mm, 16mm 6
NOTE:
6Using this feeder type you can adjust the height of the tape support at the pick-up position.
WARNING
Use only feeders, labeled as shown above, when
feeding capacitors based on metal-powder (e.g. tanta-
lum).
Feeder label (enlarged)
