User Manual SIPLAC E HF Series 6 Component han dling Software Version SR.505.xx 05/2004 US Edition 6.2 Technical data for the feeders 247 6.2.13 Bulk case feeder 6 Fig. 6.2 - 13 Bulk case feeder Item no. 00142318-xx 6 Wi…
6 Component handling User Manual SIPLACE HF Series
6.2 Technical data for the feeders Software Version SR.505.xx 05/2004 US Edition
246
6.2.12 Linear vibratory feeder, type 3
Fig. 6.2 - 12 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Wide 28 mm 6
Tracks per feeder 1, 2, 3, or 6 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / x 1 6
Cycle time (variable) from 400 to more than 1000 msec 6
User Manual SIPLACE HF Series 6 Component handling
Software Version SR.505.xx 05/2004 US Edition 6.2 Technical data for the feeders
247
6.2.13 Bulk case feeder
6

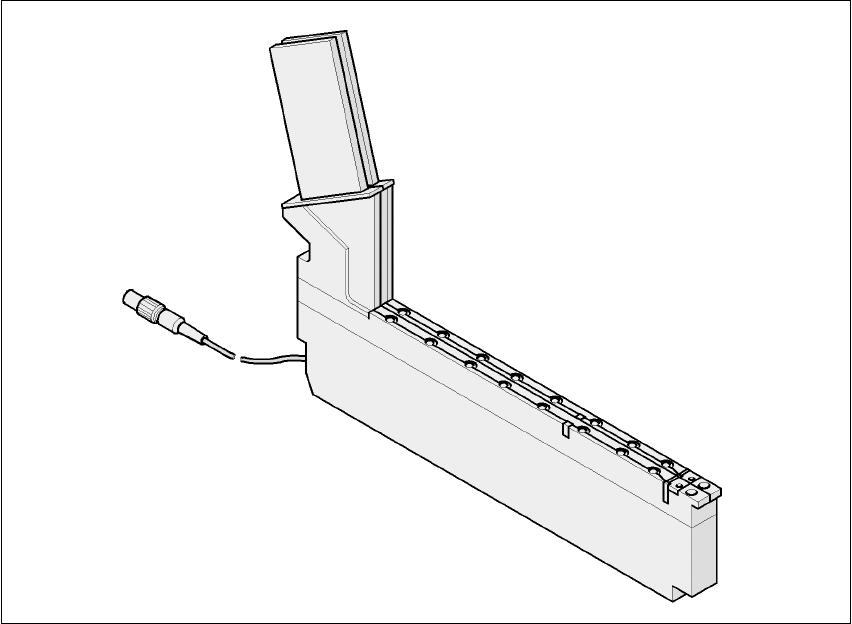

Fig. 6.2 - 13 Bulk case feeder
Item no. 00142318-xx 6
Wide 29 mm 6
Tracks per feeder 2 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components up to 50,000 6
Feeding rails 0402 / 0.35 mm high item no. 00142319-xx 6
0402 / 0.5 mm high item no. 00142320-xx 6
0603 / 0.45 mm high item no. 00142321-xx 6
0603 / 0.80 mm high item no. 00142322-xx 6
0805 / 0.45 mm high item no. 00142323-xx 6
0805 / 0.60 mm high item no. 00142324-xx 6
0805 / 0.85 mm high item no. 00142325-xx 6
0805 / 1.25 mm high item no. 00142326-xx 6
Micro Melf / 1.05 ± 0.05 mm item no. 00142327-xx 6
Mini Melf / 1.40 ± 0.1 mm item no. 00142328-xx 6
Cycle time < 60 ms 6
6 Component handling User Manual SIPLACE HF Series
6.2 Technical data for the feeders Software Version SR.505.xx 05/2004 US Edition
248
6.2.14 Surftape feeder
6.2.14.1 Overview
You will need the surftape feeder to supply components for placing bare dies. This feeder has
versions for 8 mm tapes and 12 or 16 mm tapes. 6
6

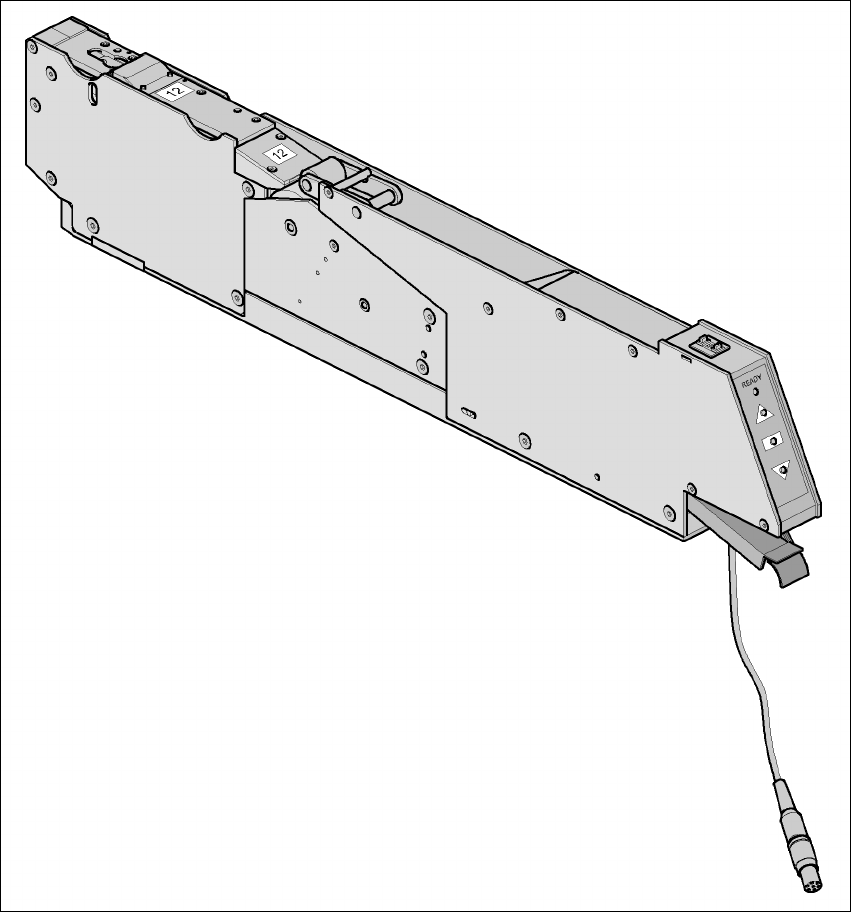

Fig. 6.2 - 14 Surftape feeder
The surftape feeder can be ordered from Hover-Davis (www.hoverdavis.com). Handling of the
feeder is described in the operating instructions for feeder modules. 6
