6 Component handling User Manual SIPLACE HF Series
6.4 Matrix tray changer Software Version SR.505.xx 05/2004 US Edition
272
*) Waffle tray carrier 6
6
6.4.2.2 Electrical ratings
6
6.4.2.3 Noise emissions
6
6.4.2.4 Permitted environmental factors
6
Max. floor loading
(fully equipped)
per foot
per roller
6.93 kg/cm²
356 kg/cm²
Tower 1 (XL) Tower 2
Supply voltage
3 x 400 VAC, 50 Hz (Europe)
3 x 208 VAC, 60 Hz (USA)
Total power 1.5 kW
Rated current
2.7 A at 3 x 400 VAC
4.2 A at 3 x 208 VAC
Fuses 3 x 16 A
Rated power consumption of the largest consumer 2 A
Maximum noise emissions 74 dB (A)
Room temperature Between 15 °C and 35 °C
Atmospheric humidity
30 - 75 %
(No higher than 45% on average to prevent any
possibility of condensation on the machine)
User Manual SIPLACE HF Series 7 Station extensions
Software Version SR.505.xx 05/2004 US Edition 7.1 Nozzle changer
273
7 Station extensions
7.1 Nozzle changer
Nozzle changers can greatly increase the flexibility of the placement heads for processing differ-
ent types of component. If the placement program requires a nozzle change, then the placement
head automatically returns the old nozzle to the nozzle holder and picks up the new nozzle. Noz-
zles that were separated out during the vacuum check can also be quickly changed.
It is significantly more exact and faster to pick up nozzles from a nozzle changer than would be
possible manually. When placing small components, it is essential to minimize the radial eccen-
tricity during nozzle rotation.
7.1.1 Nozzle changer for the 12-segment Collect&Place head
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
clips.
7

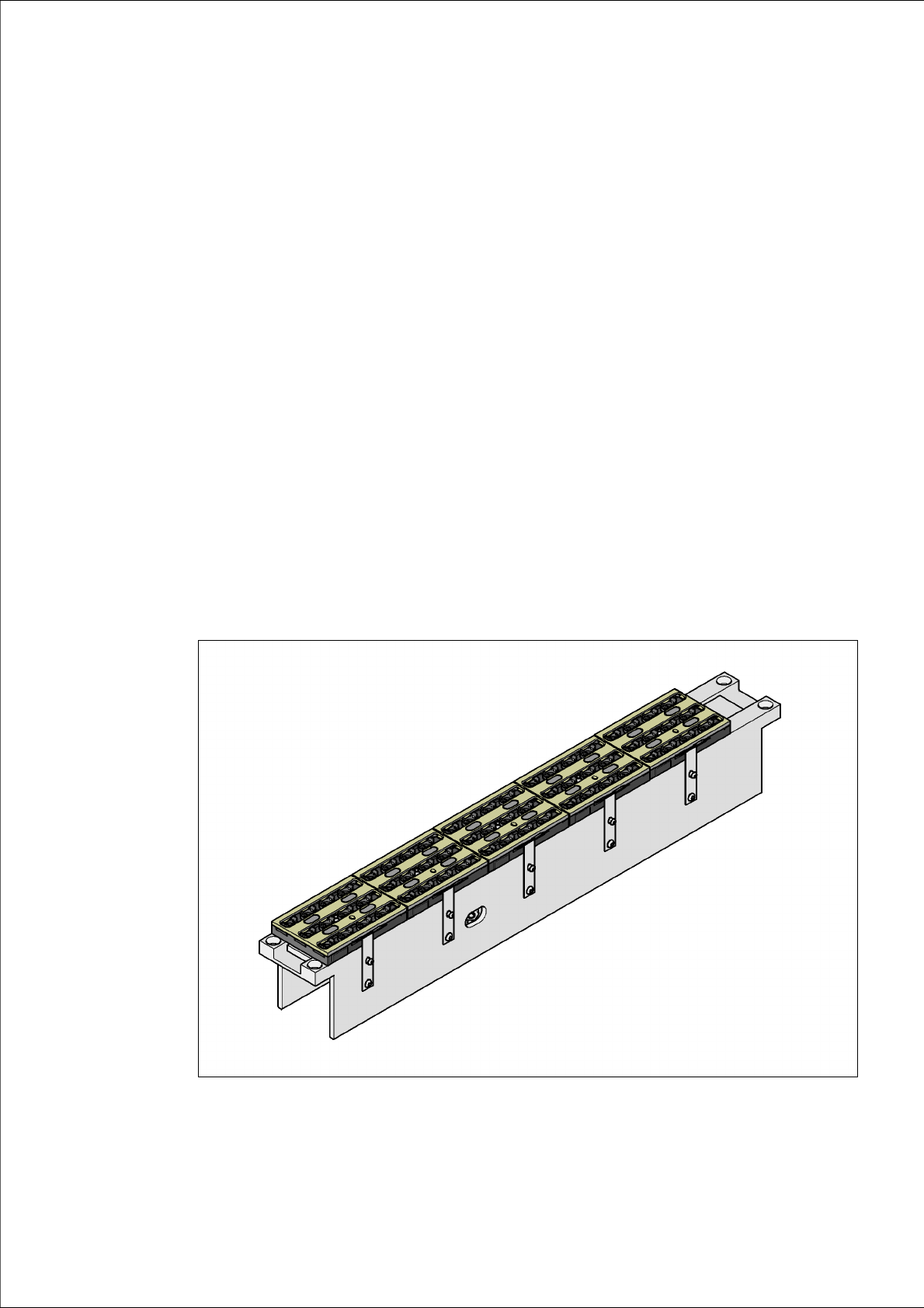

Fig. 7.1 - 1 Nozzle changer for the 12-segment Collect&Place head
7 Station extensions User Manual SIPLACE HF Series
7.1 Nozzle changer Software Version SR.505.xx 05/2004 US Edition
274
7.1.1.1 Position of the nozzle changers for the C&P12 head on the HF placement machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 12 segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 2
). A nozzle changer may be installed at locations 2 and 4. This
gives a total capacity of 6 nozzle changers with 30 magazines and a total of 360 nozzle holders.
7
Fig. 7.1 - 2 Position of the nozzle changer for the 12-segment Collect&Place head on the HF machine
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
