7 Station extensions User Manual SIPLACE HF Series
7.1 Nozzle changer Software Version SR.505.xx 05/2004 US Edition
288
7

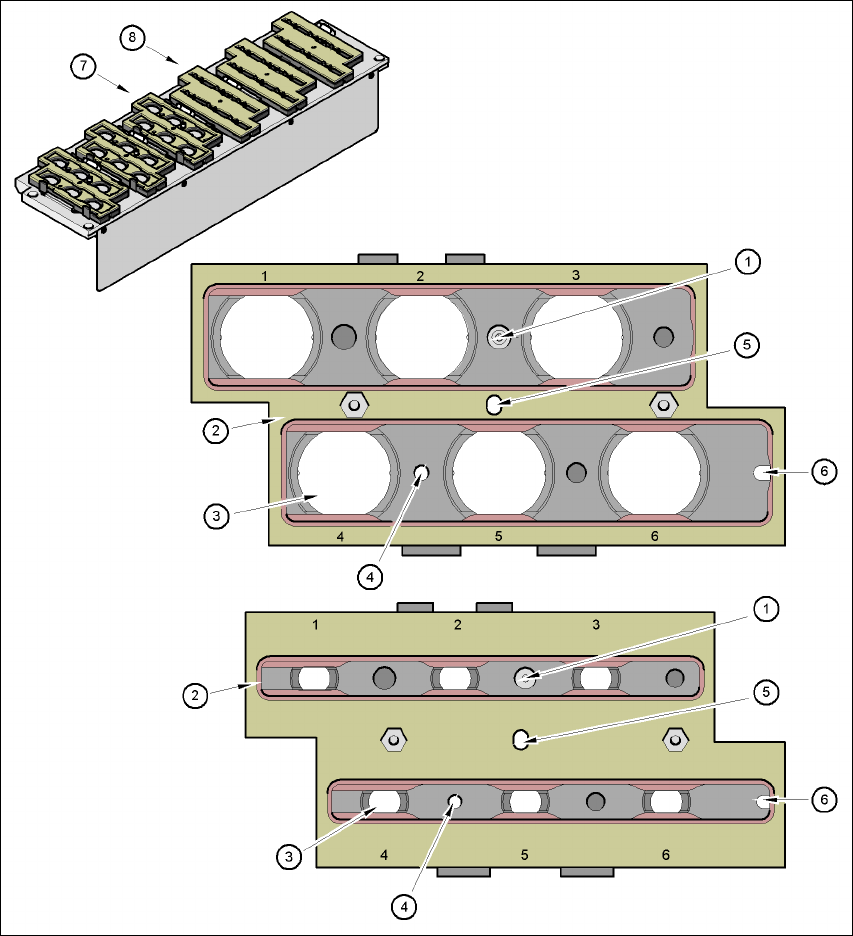

Fig. 7.1 - 13 Magazine and nozzle holders
(1) Positioning fiducial
(2) Locking plate
(3) Nozzle holder for type 9xx and 8xx nozzles
(4) Hole for the parallel pin for centering the magazines
(5) Hole for the parallel pin of the slide mechanism
(6) Slot for the parallel pin for centering the magazines
(7) Magazine for type 8xx nozzles
(8) Magazine for type 9xx nozzles
User Manual SIPLACE HF Series 7 Station extensions
Software Version SR.505.xx 05/2004 US Edition 7.1 Nozzle changer
289
7.1.2.6 Notes on operation
Æ You can fill the magazines with different nozzle types within a nozzle family: for example, the
8-nozzle magazines can be filled with nozzle types 821, 822, 823, while the 9-nozzle maga-
zines can hold type 911, 914, etc.
PLEASE NOTE 7
Fill the magazines off the machine and always replace complete magazines. 7
Æ Open the locking plate and place the nozzles in the nozzle holders.
Æ Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 7
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have
been returned to their magazines. 7
Æ Programming the nozzle changer is described in the SIPLACE Pro user manual.
PLEASE NOTE 7
Æ Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
Æ Do not allow components to drop onto free feeder locations. They will stick to the magnetic bar.
Production may have to be interrupted if the feeders are not placed on the component table
correctly. You should therefore regularly clean the magazines and free locations.
7 Station extensions User Manual SIPLACE HF Series
7.1 Nozzle changer Software Version SR.505.xx 05/2004 US Edition
290
7.1.2.7 Changing the magazine
Æ To remove the magazine, press the spring hook (item 1) away from the magazine and lift the
magazine out of the base.
7

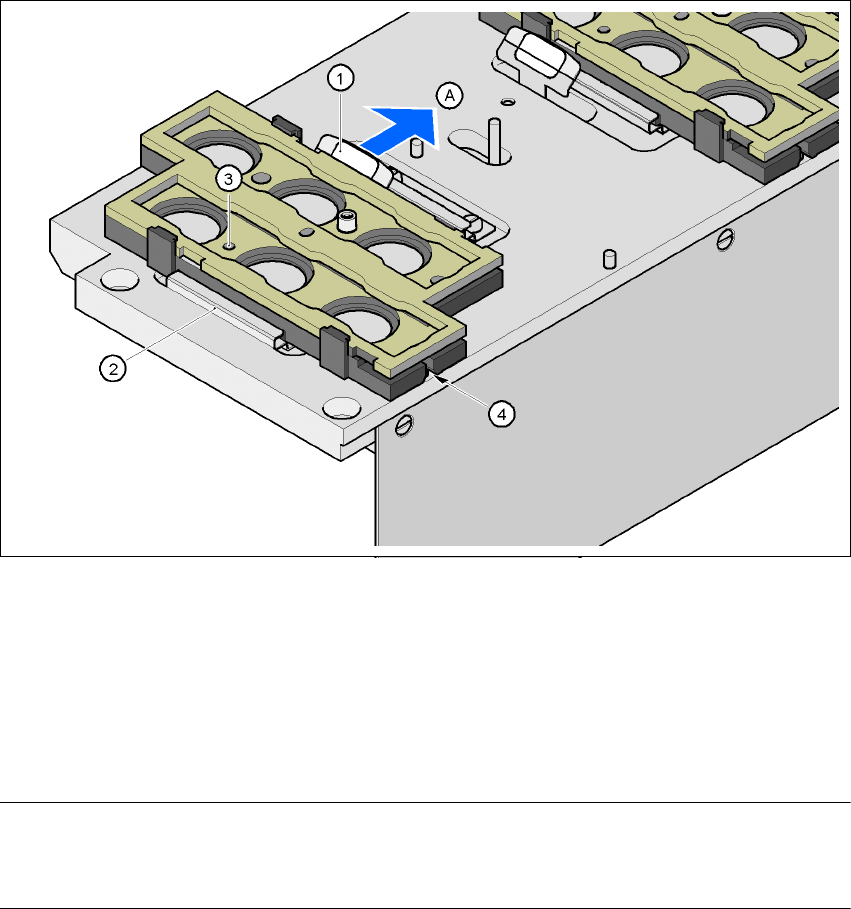

Fig. 7.1 - 14 Changing the magazine
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(A) Push the spring hook away from the magazine
PLEASE NOTE
Make sure that you insert the magazine so that the centering pins slide into the centering hole
(item 3) and slot (item 4). 7
Æ First place the side of the magazine with the centering hole (item 3) and the slot (item 4) on
the base. The two knobs on the magazine must slide into the retaining clamp (item 2).
Æ Push the spring hook away from the magazine.
Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
7
