7.5.3 Technical data – 1D barcode reader
7
7
7
7.5.4 Technical data – 2D barcode reader
7
7
Laser diode Red light
Wave length 670 nm
Laser class Class 2, as per DIN EN 60825-1: 2001
Scanning frequency 400 ... 1200 Hz
Resolution 0.15 mm ... 0.5 mm
Code types Code 39, Code 128, Code 93,
Codabar, EAN, EAN 128, UPC,
2/5 Interleaved, Pharma Code
(others available upon request)
Barcode length Max. 50 characters
Optical display 4 x LED function display
Audible indicator Buzzer
Data interface RS232, RS 422/485
Electrical connection 15-pin D-Sub HD connector
Operating voltage 10 VDC ... 30 VDC
Degree of protection IP65
Laser diode Red light
Wave length 650 nm
Laser class Class 2, according to DIN EN 60825-1: 2001
Scanning frequency 100 ... 15 kHz
Resolution 0.17 mm ... 0.5 mm
2D code types Data Matrix ECC 200
2D barcode length Max. 20 characters
1D code types Code 39, Code 128,
Codabar, EAN, EAN 128, UPC,
2/5 Interleaved, Pharma Code
(others available upon request)
1D barcode length Max. 50 characters
Optical display 4 x LED function display
Audible indicator Buzzer
Data interface RS232, RS 422/485, Ethernet
Electrical connection 15-pin D-Sub HD connector
RJ45 connector 10baseT
Operating voltage 10 VDC ... 30 VDC
Degree of protection Class 3
User Manual SIPLACE HF Series 7 Station extensions
Software Version SR.505.xx 05/2004 US Edition 7.5 PCB barcode reader
311
7.5.5 Assembly options for the PCB barcode reader
Fig. 7.5 - 3 Assembly options for the PCB barcode reader
(1)2D barcode reader "topside"
(2)2D barcode reader "underside"
(3)1D barcode reader "topside"
(4)1D barcode reader "underside"
(5)Assembly rail
7 Station extensions User Manual SIPLACE HF Series
7.5 PCB barcode reader Software Version SR.505.xx 05/2004 US Edition
312

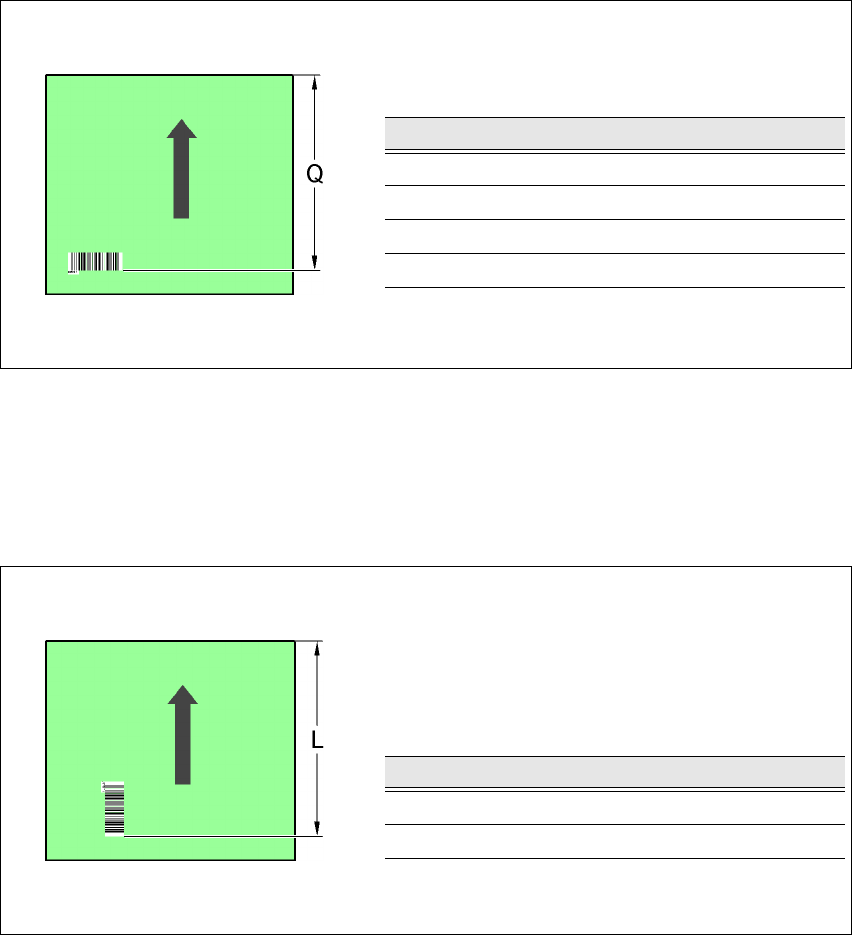

7.5.6 Positioning PCB barcode labels on the PCB
7.5.6.1 Positioning along the long side of the PCB -
Scanning beam
across
the direction of travel
Fig. 7.5 - 4 Positioning along the long side of the PCB - Scanning beam across the direction of travel
7.5.6.2 Positioning along the long side of the PCB -
Scanning beam
along
the direction of travel
Fig. 7.5 - 5 Positioning along the long side of the PCB - Scanning beam along the direction of travel
PCB barcode reader Q [mm]
2D on top 390
1D on top 390
2D on bottom 430
1D on bottom 430
PCB barcode reader L [mm]
1D on top 320 - 350
1D on bottom 380 - 410
