User Manual SIPLAC E HF Series 2 Operational safety Software Vers ion SR.505.xx 05/2004 US Edition 2.2 Warning labels 37 2.2.4 W arning strips on the used t ape channel 2 Fig. 2.2 - 7 Warning strips on the used tape chan…
2 Operational safety User Manual SIPLACE HF Series
2.2 Warning labels Software Version SR.505.xx 05/2004 US Edition
36
2.2.3.2 Warning label W205 on the bottom
2

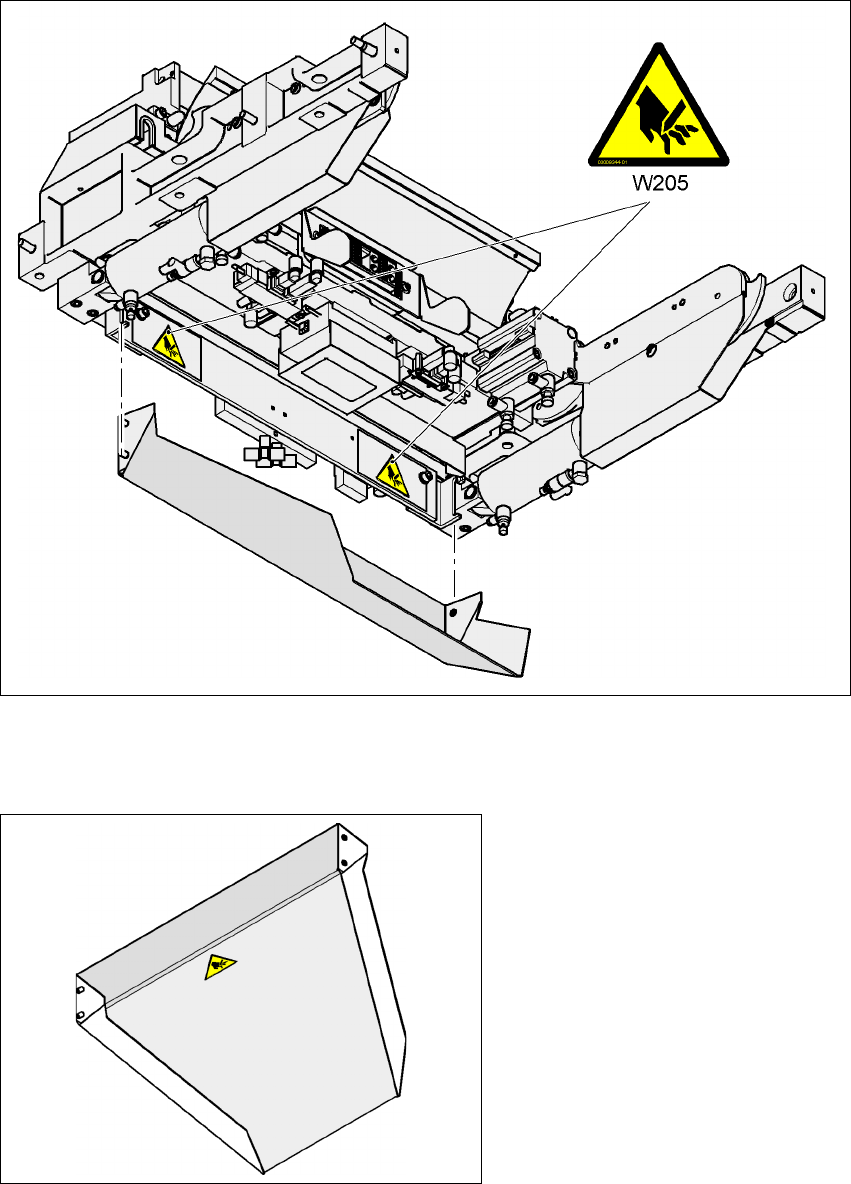

Fig. 2.2 - 5 Warning label W205 on the bottom of the tape cutter
2.2.3.3 Warning label W205 on the used tape chute
2
Fig. 2.2 - 6 Warning label W205 on the waste tape chute
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.2 Warning labels
37
2.2.4 Warning strips on the used tape channel
2

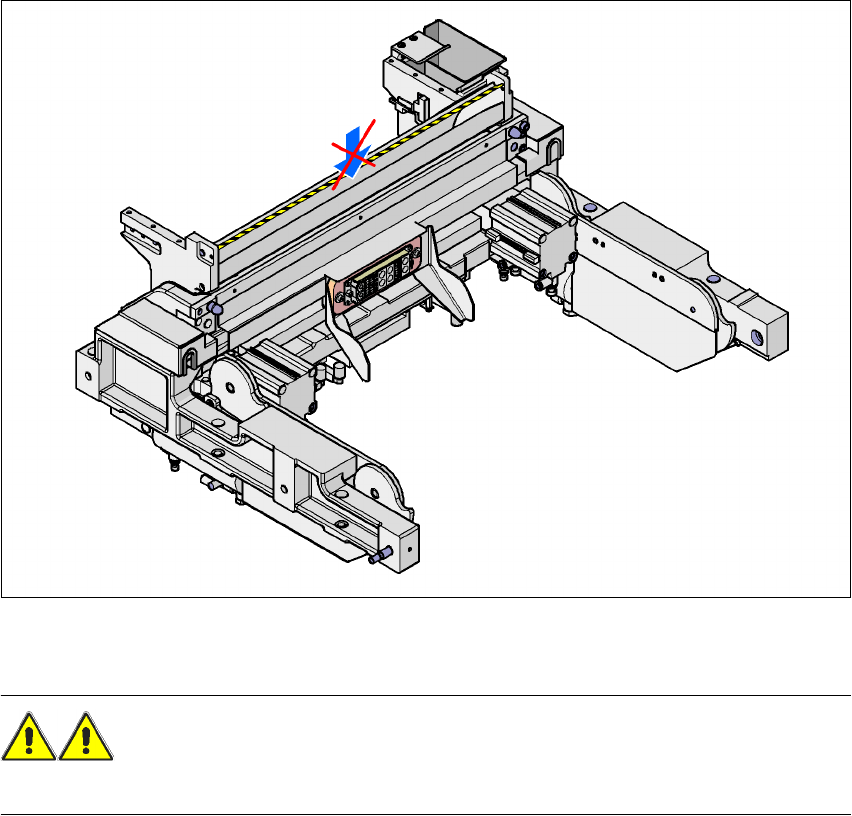

Fig. 2.2 - 7 Warning strips on the used tape channel
WARNING 2
Never reach into the opening in the used tape channel.
2 Operational safety User Manual SIPLACE HF Series
2.2 Warning labels Software Version SR.505.xx 05/2004 US Edition
38
2.2.5 Warning label W206 on service socket X102
2
Pos. W206 in Fig. 2.2 - 8, item no. 03009345-01 (number per placement system: 1)
Fig. 2.2 - 8 Warning label W206 on service socket X102
Pos. W206, item no. 03009345-01
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
