2.2.6.2 Warning label W207 on the inrush current limiter
2
Fig. 2.2 - 10 Warning label W207 on the inrush current limiter
Pos. W207, item no. 03009346-01
PCB1 Board, inrush current limiter - transformer
PCB2 Board, inrush current limiter - servo unit
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.2 Warning labels
41

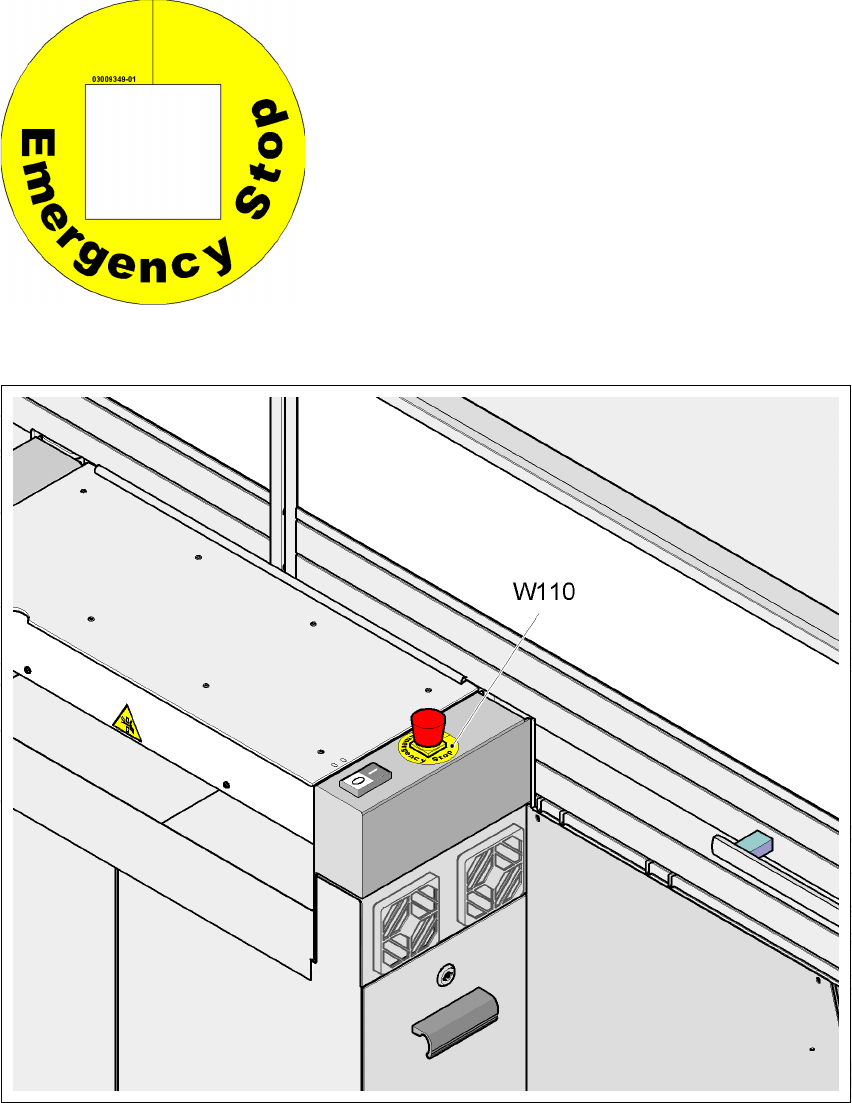

2.2.7 Warning label W110 on the emergency stop buttons
2
Warning label W110, item no. 03009349-01 (number per placement system: 2)
2
2
Fig. 2.2 - 11 Warning label W110 on the emergency stop buttons
2
Pos. W110, item no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warn-
ing label W110 is affixed to the extension kit in-
stead of the yellow ring on the emergency stop
buttons.
2 Operational safety User Manual SIPLACE HF Series
2.2 Warning labels Software Version SR.505.xx 05/2004 US Edition
42

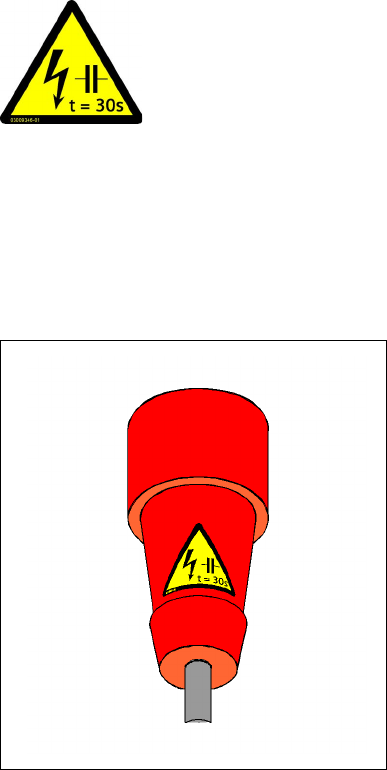

2.2.8 Warning label W211 on the CEKON plug
2
Pos. W 211 (number per placement system: 1)
2
Fig. 2.2 - 12 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
