User Manual SIPLAC E HF Series 2 Operational safety Software Version SR.505.xx 05/2004 US Edition 2.8 Disabling the compressed air supply and discharging the pressure 71 2.7.2 Residual volt ages and dischar ge times a f …
2 Operational safety User Manual SIPLACE HF Series
2.7 Residual voltages and discharge times in the machine Software Version SR.505.xx 05/2004 US Edition
70

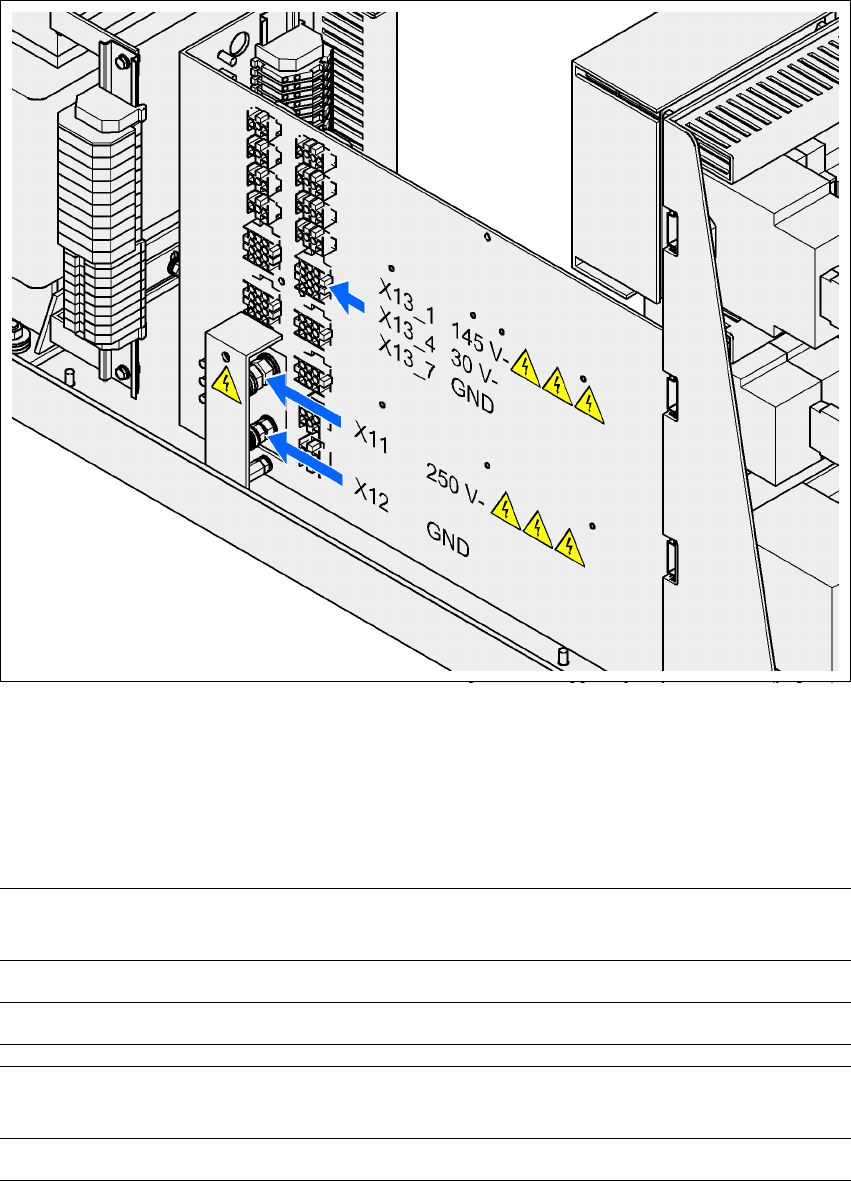

Fig. 2.7 - 2 Measuring points on the power supply unit
2.7.1 Operating voltages, residual voltages and discharge times after pressing
the emergency stop button
2
Pins X11 and X13_1
measured to X12 (GND)
Voltage in normal
mode
Residual voltage after
emerg. stop Discharge times
X11 + 250 VDC < 10 VDC 7 sec
X13_1 + 145 VDC < 10 VDC 50 sec
Pin X13_4
measured to pin X3_7 (-)
Voltage in normal
mode
Residual voltage after
emerg. stop Discharge times
X13_4 + 30 VDC + 30 VDC -
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.8 Disabling the compressed air supply and discharging the pressure
71
2.7.2 Residual voltages and discharge times after switching off at the main switch
2
CAUTION 2
To avoid losing data, assess the following criteria before switching off your automatic placement
system (apart from in emergencies):
– Has the placement system finished transmitting machine, setup and panel data?
– Has the placement system finished processing the PCB?
– Has the placement system completed the run-up phase?
2.8 Disabling the compressed air supply and discharg-
ing the pressure
The compressed air working pressure of the placement system is set to 0.50 ± 0.025 MPa (5.0 ±
0.25 bar). The position of the compressed air unit is indicated by item 1 in Fig. 2.8 - 1
. The com-
pressed air supply to the machine can be interrupted using the shutoff valve (item 2 in Fig. 2.8 - 1
).
Æ Use the machine key to release the cover lock.
Æ Lift off the cover (see Fig. 2.8 - 1).
Æ Turn the lever on the shutoff valve (item 1 in Fig. 2.8 - 1) from the vertical to the horizontal po-
sition.
Æ Watch the working pressure gauge (item 5 in Fig. 2.8 - 1). When the automatic placement sys-
tem is switched on, the pressure discharges to 0 MPa (0 bar) within 1 minute.
CAUTION
When the machine is switched on, do not use the stop valve to interrupt the compressed air sup-
ply for more than 30 minutes. If you need to shut off the pneumatic system for longer in order to
carry out preventive maintenance or servicing work, you must switch the placement system off at
the main switch and disconnect it from the power supply.
Pins X11, X13_1 and X13_4
measured to X12 (GND)
Residual voltages when
main power switch is off Discharge times
X11 < 10 VDC < 7 sec
X13_1 < 10 VDC < 50 sec
X13_4 < 10 VDC < 2 sec
2 Operational safety User Manual SIPLACE HF Series
2.8 Disabling the compressed air supply and discharging the pressure Software Version SR.505.xx 05/2004 US Edition
72
Fig. 2.8 - 1 Compressed air unit on the placement system
2
(1) Shut-off valve
(2) Manometer for the machine component supply pressure
Desired pressure: 0.48 ± 0.025 MPa, 4.8 ± 0.25 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(3) Manometer for the gantry distributor supply pressure
Desired pressure: 0.46 ± 0.01 MPa, 4.6 ± 0.1 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(4) Manometer for the bulk case feeder supply pressure
Desired pressure: 0.25 MPa ± 0.05 MPa (2.5 bar ± 0.5 bar (display range: 0 - 0.6 MPa, 0 - 6 bar)
(5) Manometer for the input pressure
Desired pressure: 0.5 - 1.0 MPa, 5 - 10 bar (display range: 0 - 1.0 MPa, 0 - 10 bar)
(6) Compressed air filter
(7) Hexagon socket head screw for fixing the pneumatic board
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 2
