2 Operational safety User Manual SIPLACE HF Series
2.8 Disabling the compressed air supply and discharging the pressure Software Version SR.505.xx 05/2004 US Edition
72

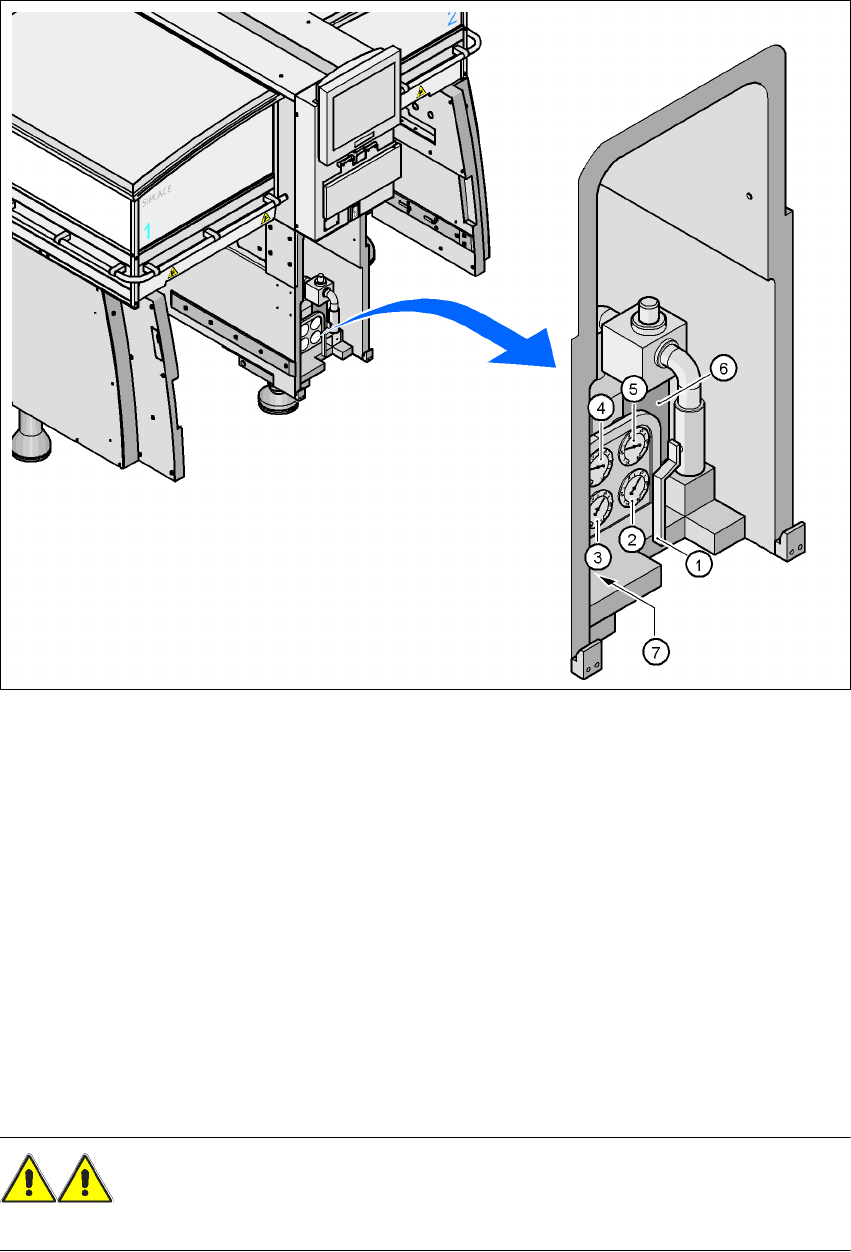

Fig. 2.8 - 1 Compressed air unit on the placement system
2
(1) Shut-off valve
(2) Manometer for the machine component supply pressure
Desired pressure: 0.48 ± 0.025 MPa, 4.8 ± 0.25 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(3) Manometer for the gantry distributor supply pressure
Desired pressure: 0.46 ± 0.01 MPa, 4.6 ± 0.1 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(4) Manometer for the bulk case feeder supply pressure
Desired pressure: 0.25 MPa ± 0.05 MPa (2.5 bar ± 0.5 bar (display range: 0 - 0.6 MPa, 0 - 6 bar)
(5) Manometer for the input pressure
Desired pressure: 0.5 - 1.0 MPa, 5 - 10 bar (display range: 0 - 1.0 MPa, 0 - 10 bar)
(6) Compressed air filter
(7) Hexagon socket head screw for fixing the pneumatic board
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 2
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.9 Energy state of the machine after switching off at the main power switch
73
2.9 Energy state of the machine after switching off at
the main power switch
2

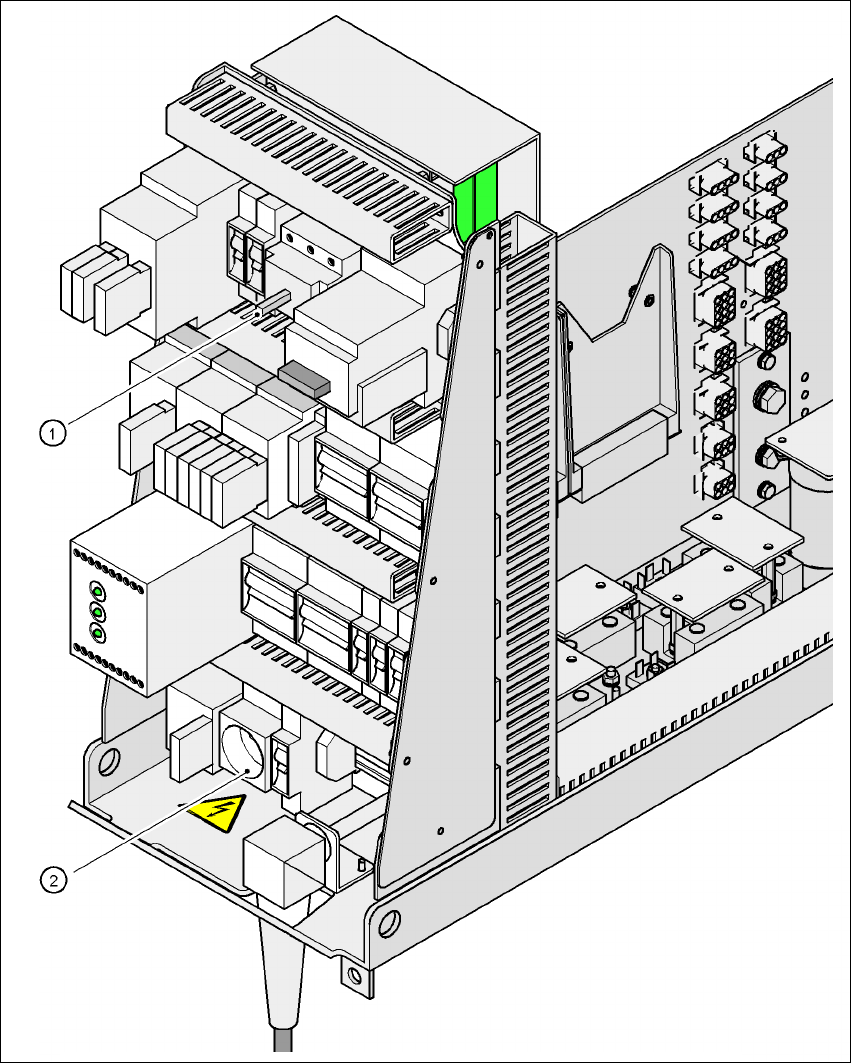

Fig. 2.9 - 1 Position of the power supply on the machine
2
WARNING
The placement system is supplied with 3 x 208 VAC, 3 x 230 VAC, 3 x 380 VAC, 3 x 400 VAC
or 3 x 415 VAC ± 5 %, 50/60 Hz mains voltage. This means that some parts of the system carry
potentially lethal voltages - even when switched off at the main power switch. Incorrect handling
of the placement system can therefore result in death or severe injury or considerable damage
to equipment. 2
Æ Always follow the applicable accident prevention and DIN regulations (particularly DIN EN 60
204, part 1).
Æ The guard over the power supply unit must ONLY be opened by appropriately qualified and
trained personnel.
(1) Main power switch
2 Operational safety User Manual SIPLACE HF Series
2.9 Energy state of the machine after switching off at the main power switch Software Version SR.505.xx 05/2004 US Edition
74
2

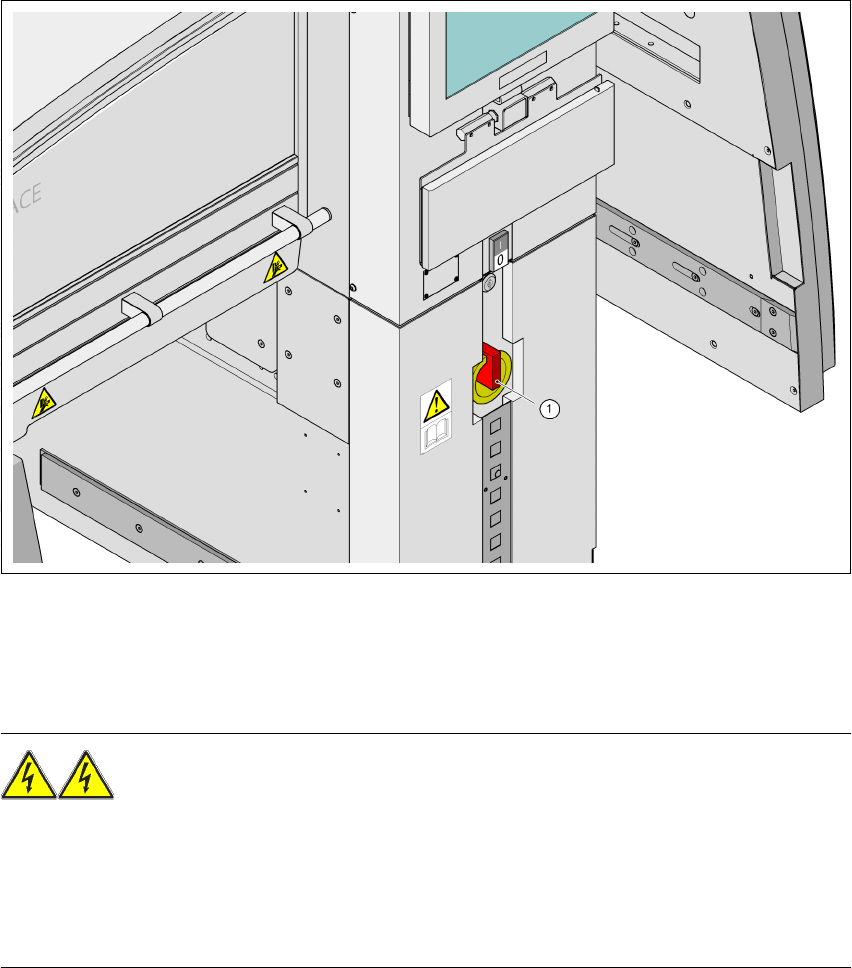

Fig. 2.9 - 2 Position of main power switch and service socket
2
(1) Main power switch
(2)Service socket
