2.9.1 Placement system switched off at the main switch, but still connected ...
WARNING
The following components still carry potentially lethal voltages even if the main power switch is
switched off:
– Cable connecting terminals L1, L2, and L3 in the main power switch Q1 (see Fig. 2.9 - 4
)
– Service socket X102 (see Fig. 2.9 - 4
)
– Automatic circuit breaker F1 for the service socket (see Fig. 2.9 - 4
)
– Mains filter Z1 (see Fig. 2.9 - 4
)
– Terminal panel X100 for connecting the power supply cable
– The color of all individual wires, which still carry potentially lethal voltages even if the main
power switch is switched off, is brown.
– Axis unit
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.9 Energy state of the machine after switching off at the main power switch
77
2

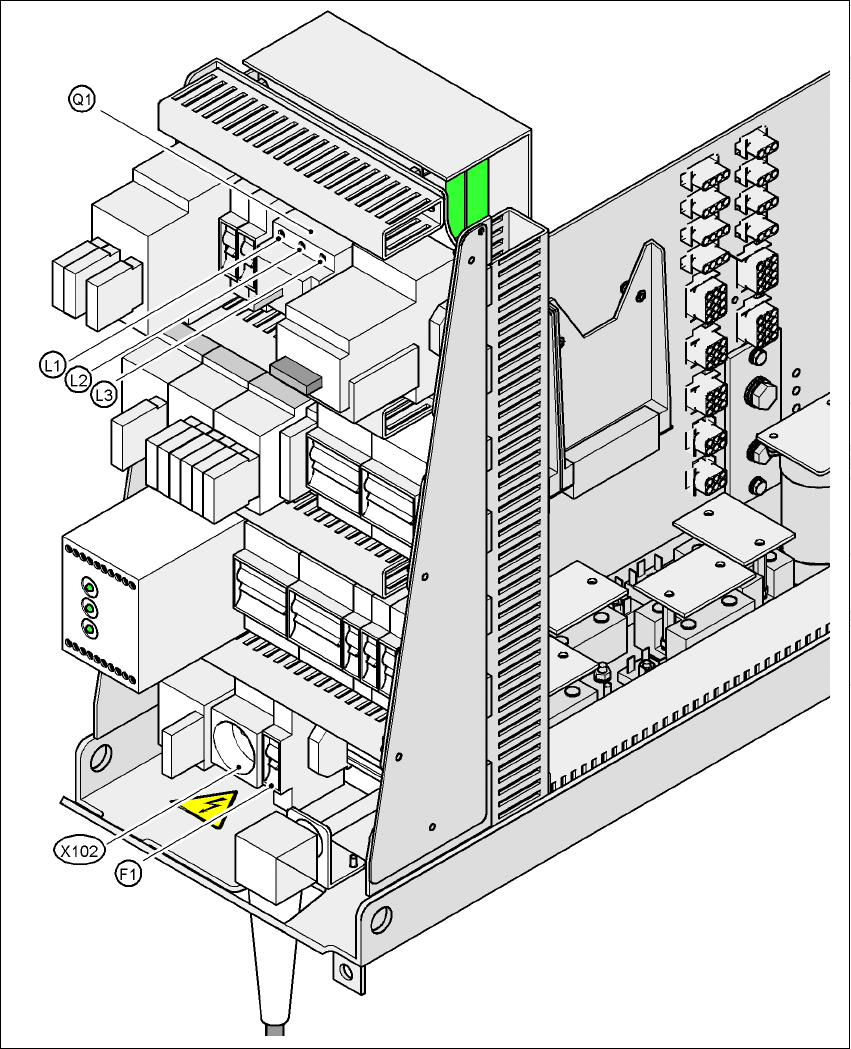

Fig. 2.9 - 4 Power supply unit, front view
2
Q1 Main power switch
X102 Service socket
F1 Fuse for the service socket
2 Operational safety User Manual SIPLACE HF Series
2.9 Energy state of the machine after switching off at the main power switch Software Version SR.505.xx 05/2004 US Edition
78
2
Fig. 2.9 - 5 Power supply unit, back view
2
Z1 Line filter
X100 Cable connection terminal for the power supply cable
