PA G E 25 Con ﬁ dential & Proprietary Y S 2 4 ( S L ) YS24(SL) H014165 Air circuit FIX24/60 2/2

PAG E

24

Conﬁ dential & Proprietary

YS24(SL)

YS24(SL)

H014165

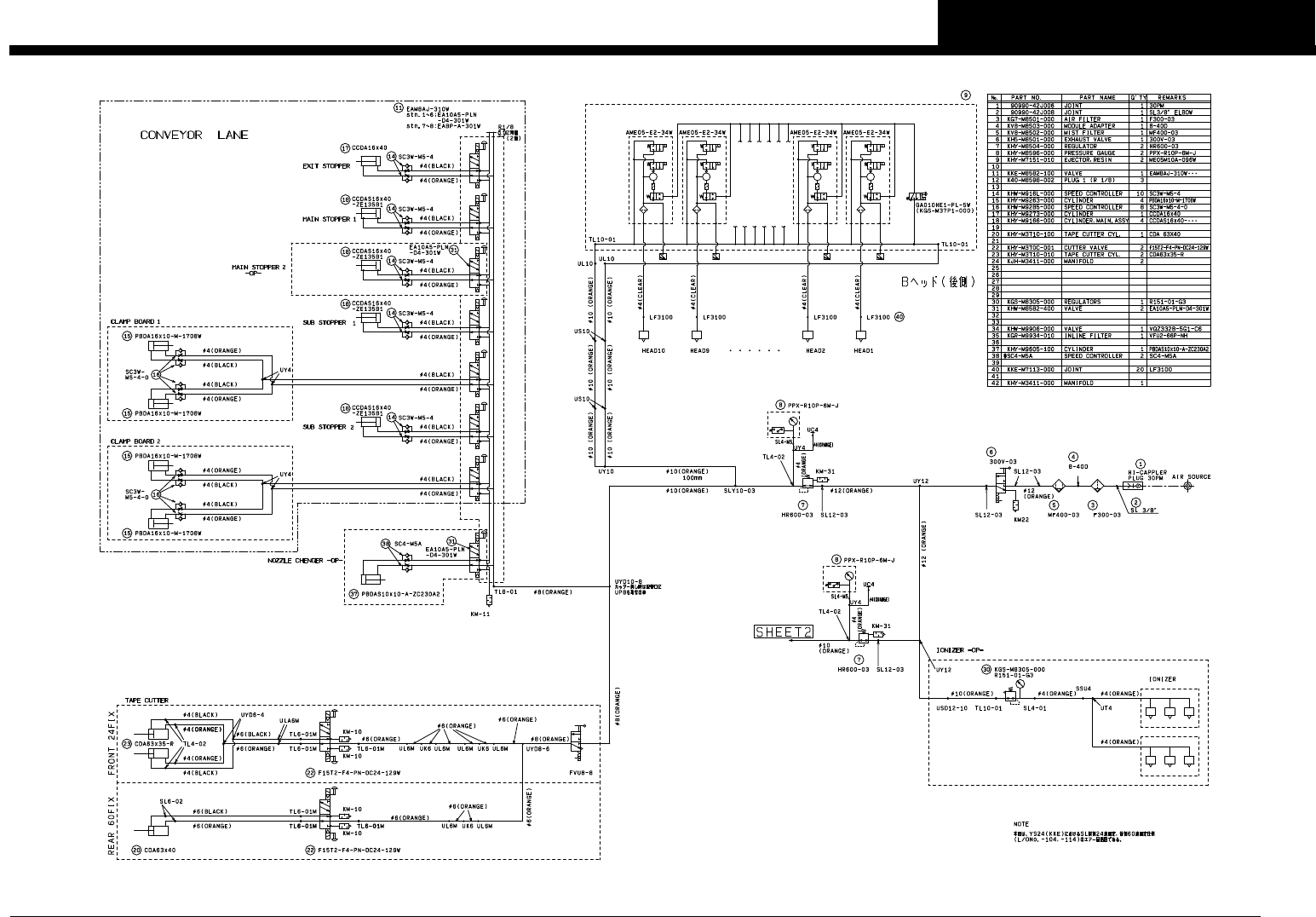

Air circuit

FIX24/60 1/2

PAG E

25

Conﬁ dential & Proprietary

YS24(SL)

YS24(SL)

H014165

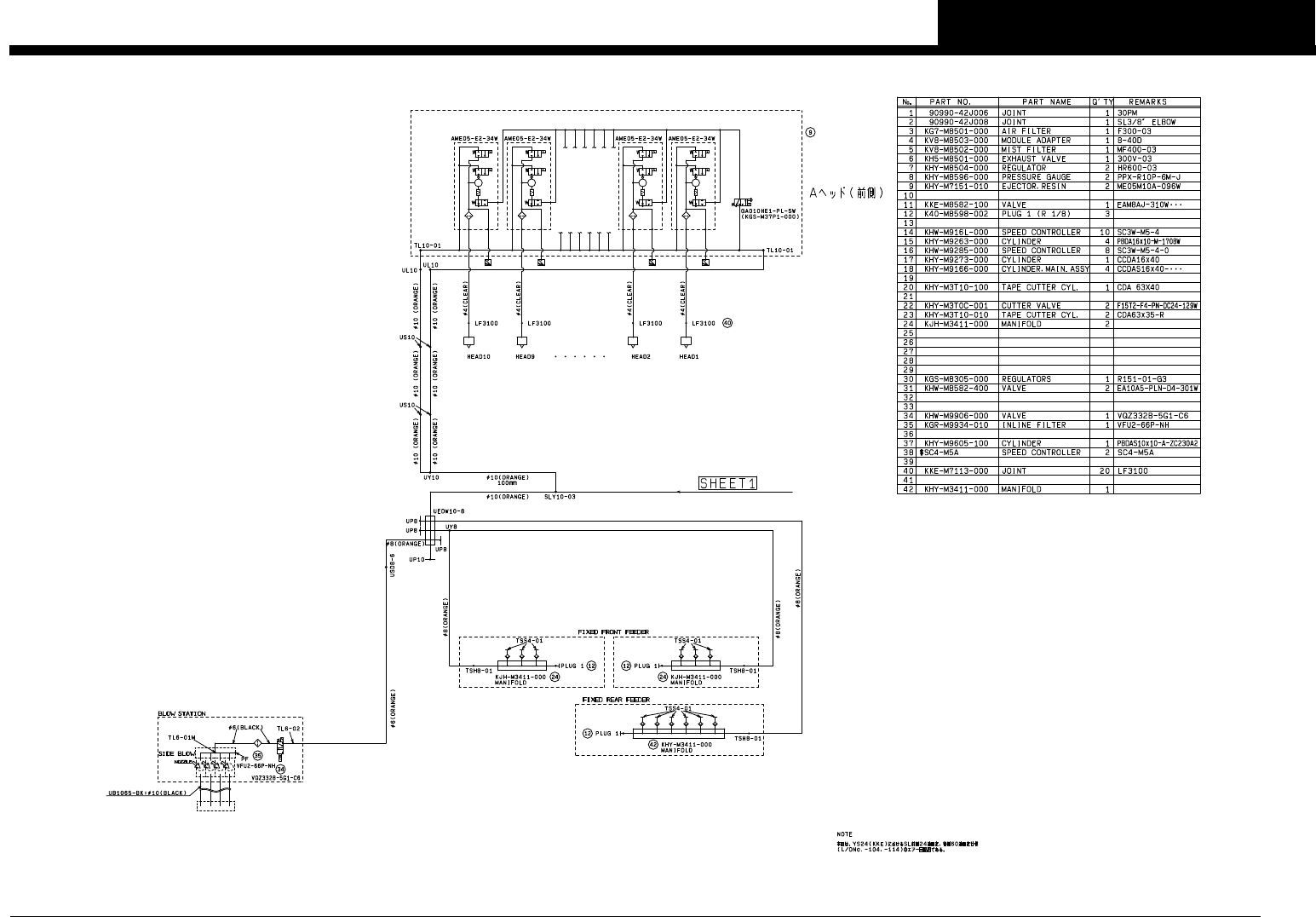

Air circuit

FIX24/60 2/2

Wiring parts list

KKE2009

PAGE

26

Condential & Proprietary

No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks

1

KGA-M55G0-006 LAN CABLE 5M 1 5M

39

KHG-M4897-011 LIGHT,ERROR 1 HL12,HL13

2

KGA-M55G0-106 LAN CABLE 10M 1 10M

40

KKE-M661A-004 HNS,XB11-QS11-QF11 1 J0001

3

KGA-M55G0-406 LAN CABLE 30M 1 30M

41

KKE-M661L-003 HNS,QF11-TM11 1 J0002

4

KK1-M6513-110 CIRCUIT PROTECTOR,1P 1 1P;1A,QF51(YG12&YS12)

42

KKE-M661G-010 HNS,NF11-KM11 1 J0005

5

KHN-M8302-000 IONIZER 2 A21,A22

43

KKE-M661H-010 HNS,C/R AC230V 1 J0006

6

KGA-M55B2-020 BCR,SYMBOL TYPE 5M 1 A43

44

KMG-M661R-001 HNS,TAP CHANGE 1 9 J0007-J0014,J0016-J0017

7

KGA-M55B2-020 BCR,SYMBOL TYPE 5M 2 A43/A44

45

KMG-M661S-001 HNS,TAP CHANGE 2 1 J0015

8

KHY-M656V-000 SENSOR(ZC230A) 1

ANC

46

KKE-M664G-001 HNS,KM12-QF51,52 1 J0018

9

KK1-M6563-200 FERRITE CORE 8 E01-E08

47

KKE-M664A-001 HNS,GS31-KM12 1 J0019

10

KGA-M4187-000 FAN GUARD 119MM 14

FAN 1,FAN 2,FAN 3 FAN 4,FAN 5,FAN T1

48

KKE-M664F-003 HNS,QF51 QF52 +48V 1 J0021

11

KKE-M6185-001 FAN MOTOR ASSY 2 FAN 1,FAN 4

49

KKE-M663E-001 HNS,I/O HEAD DC24V 2 J0022,J0023

12

KKE-M6185-601 FAN MOTOR ASSY 1 FAN 2

50

KKE-M663F-002 HNS,Y-FLEX H.PWR EMG 2 J0024,J0025

13

KKE-M6185-101 FAN MOTOR ASSY 1 FAN 3

51

KKE-M663G-004 HNS,X-FLEX HA PWR 1 J0026

14

KKE-M6185-702 FAN MOTOR ASSY 1 FAN 5

52

KKE-M663G-103 HNS,X-FLEX HB PWR 1 J0027

15

KKE-M6185-501 FAN MOTOR ASSY 1 FAN 6

53

KKE-M662F-003 HNS,QF12-TC11 1 J0028

16

KMX-M4187-000 FAN GUARD 60MM 1 FAN 6

54

KKE-M662A-000 HNS,TC11-QF21 1 J0029

17

KKE-M6185-201 FAN MOTOR ASSY 2 FAN T1,FAN T2

55

KKE-M662A-100 HNS,TC11-QF61 1 J0029

18

KKE-M6185-401 FAN MOTOR ASSY 2

FAN XA,FAN XB

56

KKE-M663K-001 HNS,CONV PWR 1 J0036

19

KGN-M4187-000 FAN GUARD 4

FAN XA,FAN XB

57

KKE-M663J-002 HNS,I/O CONV.PWR 1 J0037

20

KKE-M6564-020 UPS ASSY1 1 GB1

58

KKE-M663R-002 HNS,C/R EXT.POWER 1 J0041

21

KHN-M6561-000 POWER SUPPLY 1 1 GS21

59

KKE-M663M-001 HNS,MULTI CAM.DC24V 1 J0043

22

KKE-M6561-000 POWER SUPPLY 1 1 GS22

60

KHY-M663N-000 HNS,ANC POWER 1 J0044

23

KKE-M6561-100 POWER SUPPLY 1 1 GS31

61

KKE-M661C-000 HNS,QF11-QF12 1 J0046

24

KMM-M4899-000 SIG.TOWER ASSY 1 HL11

62

KKE-M663V-000 HNS,ANC DC24V 1 J0047

25

KMM-M4899-100 SIG.TOWER ASSY 1 HL11

63

KKE-M665F-001 HNS,CONV.DRIVER 1 J0051

26

KMM-M4899-200 SIG.TOWER ASSY 1 HL11

64

KKT-M665E-101 HNS,CONV.MOTOR 1 J0052

27

KMM-M4899-300 SIG.TOWER ASSY 1 HL11

65

KKT-M665G-103 HNS,BRAKE SRV1 2 1 J0058

28

KMM-M4899-400 SIG.TOWER ASSY 1 HL11

66

KKE-M536A-021 HNS,PE 1 J0071

29

KMM-M4899-500 SIG.TOWER ASSY 1 HL11

67

90K30-7MN080 HNS,EARTH 3 J0072-J0074

30

KMM-M4899-600 SIG.TOWER ASSY 1 HL11

68

90K30-3VN015 HNS,EARTH 1 J0075

31

KMM-M4899-700 SIG.TOWER ASSY 1 HL11

69

90K30-7MN030 HNS,EARTH 2 J0076,J0077

32

KMM-M4899-800 SIG.TOWER ASSY 1 HL11

70

90K30-3NN025 HNS,EARTH 1 J0079

33

KMM-M4899-900 SIG.TOWER ASSY 1 HL11

71

90K30-3VN040 HNS,EARTH 1 J0080

34

KMM-M4899-A00 SIG.TOWER ASSY 1 HL11

72

90K30-2KL070 HNS,EARTH 1 J0081

35

KMM-M4899-B00 SIG.TOWER ASSY 1 HL11

73

90K30-4PP070 HNS,EARTH 1 J0083,J0085

36

KGS-M4896-011 ERROR LIGHT ASSY 2 HL12,HL13

74

90K30-2PR060 HNS,EARTH 5 J0086～J0090

37

KGS-M4897-011 LIGHT,ERROR 1 HL12,HL13

75

90K30-2PP035 HNS,EARTH 1 J0091

38

KHG-M4896-011 ERROR LIGHT ASSY 2 HL12,HL13

76

90K30-5PP180 HNS,EARTH 2 J0092,J0093
