2. Cover Section

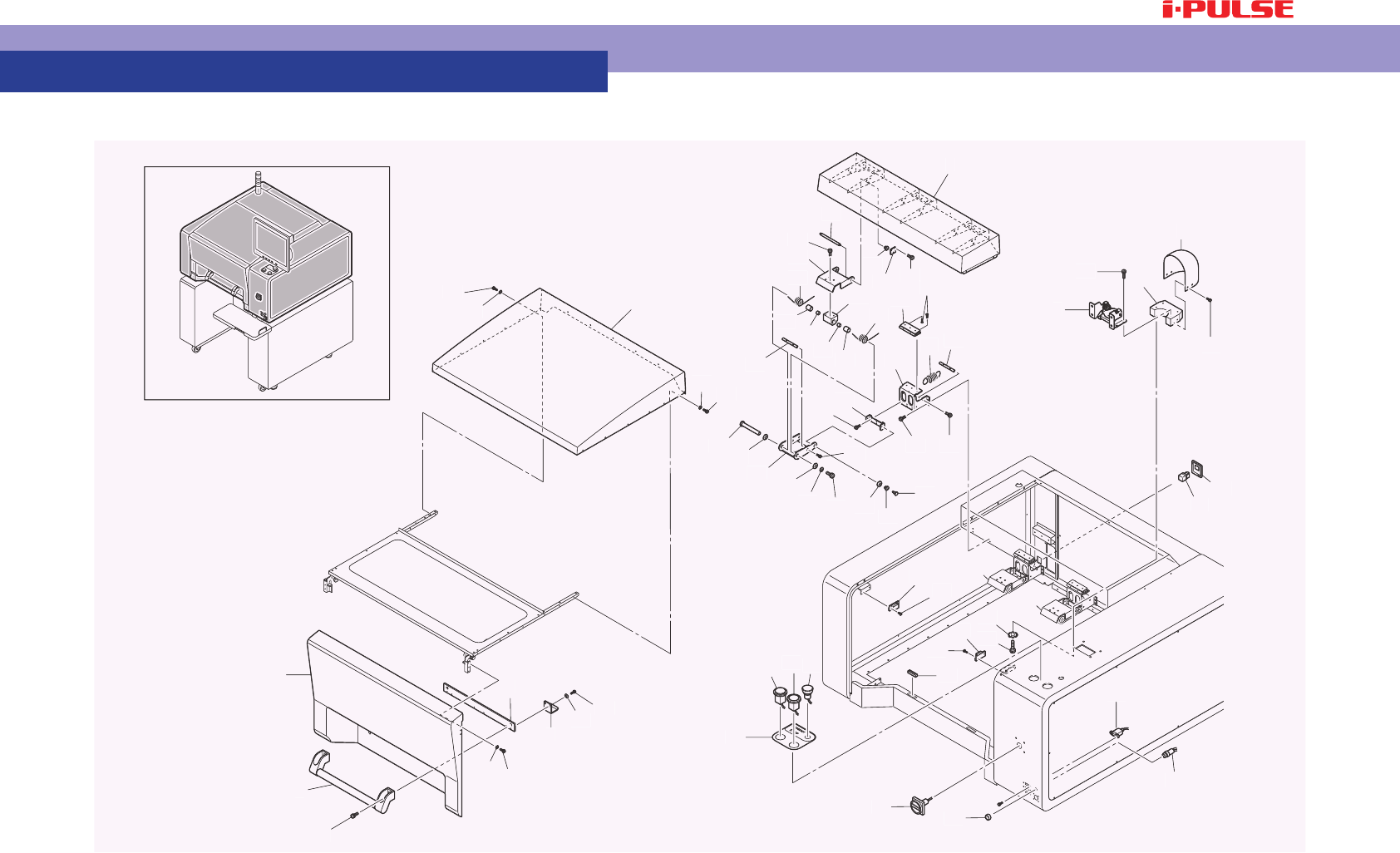

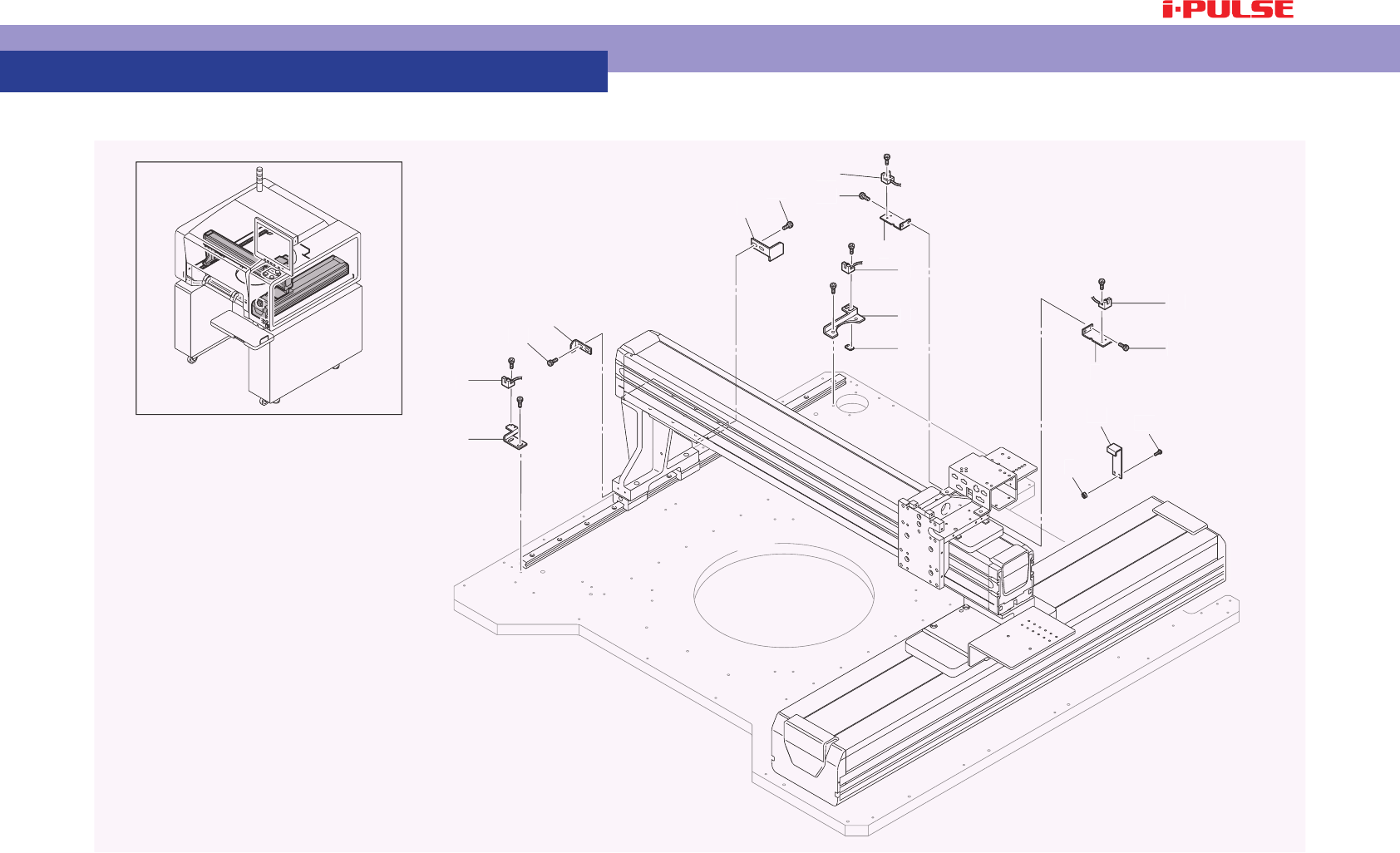

2-1. Top Cover
No. Part No. Part Name Q'ty Remarks Rev. Rank Level
1 LE1-M1351-02 COVER(1) 1 / ○
2 LE1-M1352-04 COVER(2) 1 / ○
3 LE1-M1366-00 COVER 1 / ○
4 LE1-M135D-02 BRACKET,LCD 1 / ○
5 LE1-M135F-02 STAY(C1) 1 / ○
6 LE1-M135H-01 BRKT,PULL 1 / ○
7 LE1-M1367-04 BRKT,MAGNET 2 / ○
8 90990-47J011 PULL 1 / ○
9 90990-51J004 HINGE 1 / ○
10 90990-52J002 MAGNET CATCH 2 / ○
11 90990-52J006 MAGNET CATCH 2 / ○
12 LE1-M13DS-03 LABEL,EMG 1 / ×
13 LC3-M131S-00 COLLAR 1 / ○
14 LE1-M66J8-01 EMG1.ASSY 1 EMG SW / ×
15 LE1-M66HP-10 HNS.STR SW ASSY SE 1 START SW / ×
16 LE1-M66LL-10 HNS.SW6 ASSY 1 READY SW / ×
17 LE1-M42HT-00 MAIN SW S 1 / ×
18 LE1-M66LR-00 PB1.ASSYL 1 / ×
19 LC3-M669A-10 HNS,EX-USB2 3 / ×
20 LC0-M11H1-00 BEZEL,LAN 1 / ×
21 LG0-M11H9-00 CONNECTOR, LAN 1 / ×
22 LE1-M135B-03 STAY 3 / ×
23 LE1-M135V-02 BRACKET 3 / ×
24 LE1-M1361-02 LEVER(1) 3 / ×
25 LE1-M1362-02 LEVER(2) 3 / ×
26 LE1-M1363-01 BUSH 6 / ×
27 LE1-M1364-01 LEVER(3) 3 / ×
28 LE1-M136H-00 SPACER 3 / ×
29 LE1-M136J-00 SPACER 3 / ×
30 LE1-M136K-00 SHAFT 3 / ×
31 LE1-M136L-00 KEEPER 6 / ×
32 90990-51J003 HINGE 3 / ×
33 LE1-M13A7-01 SPRING 6 / ×
34 90990-28J117 WASHER,PLAIN 6 / ×
No. Part No. Part Name Q'ty Remarks Rev. Rank Level
35 90990-31J026 BOLT SHOULDER 8 / ×
36 90990-50J006 PIN, HINGE 3 / ×
37 90990-28J118 WASHER,PLAIN 3 / ×
38 90990-53J003 BEARING(OILLESS) 6 / ×
39 90990-53J002 BEARING(OILLESS) 8 / ×
40 90990-53J008 BEARING(OILLESS) 6 / ×
41 LE1-M13AN-00 SPRING 6 / ×
42 90990-28J129 WASHER,PLAIN 6
43 90990-28J133 WASHER,PLAIN 18
44 90990-01J039 BOLT,HEX.SOCKET HEAD 18
45 91317-03006 BOLT HEX.SOCKET HEAD 4 M3X6
46 91317-04006 BOLT HEX.SOCKET HEAD 6 M4X6
47 91317-04008 BOLT HEX.SOCKET HEAD 14 M4X8
48 91314-04008 BOLT HEX.SOCKET HEAD 8 M4X8
49 91314-05010 BOLT HEX.SOCKET HEAD 4 M5X10
50 91314-06010 BOLT HEX.SOCKET HEAD 3 M6X10
51 98907-04006 SCREW BINDING HEAD 18
52 98704-03006 SCREW BINDING HEAD 4
53 98704-04008 SCREW FLAT HEAD 6
54 98707-08014 SCREW FLAT HEAD 2
55 92907-03200 WASHER PLAIN 4
56 92990-05400 WASHER EXTL. TOOTHED 4
57 97604-04310 SCREW BIN, HEAD W/W 4
4
