Maintenance Tasks for C&P20/A/M/P Head
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 35
4
4 Maintenance Tasks for C&P20/A/M/P Head
Maintenance Tasks for C&P20/A/M/P Head
CAUTION
Do not get the heads mixed up!
Unless otherwise specified, all references made apply equally to the C&P20, C&P20 A,
C&P20 M and C&P20 P head.
► Maintenance of the C&P20, C&P20 A, C&P20 M and C&P20 P heads is largely identical.
Any relevant differences will be mentioned explicitly.
► The C&P20 M is only used with CA and Micron machines.
NOTICE
Example
All tasks are described using the example of a C&P20 A head. The procedure is the same for
other C&P20 variants. Any relevant differences will be mentioned explicitly.
Maintenance Tasks for C&P20/A/M/P Head
Differences Between C&P20, C&P20 A, C&P20 M and C&P20 P
36 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin
4.1
4.1 Differences Between C&P20, C&P20 A, C&P20 M and C&P20 P
Differences Between C&P20, C&P20 A, C&P20 M and C&P20 P
CP20 Differenti ation
Differentiation of the C&P20 head variants

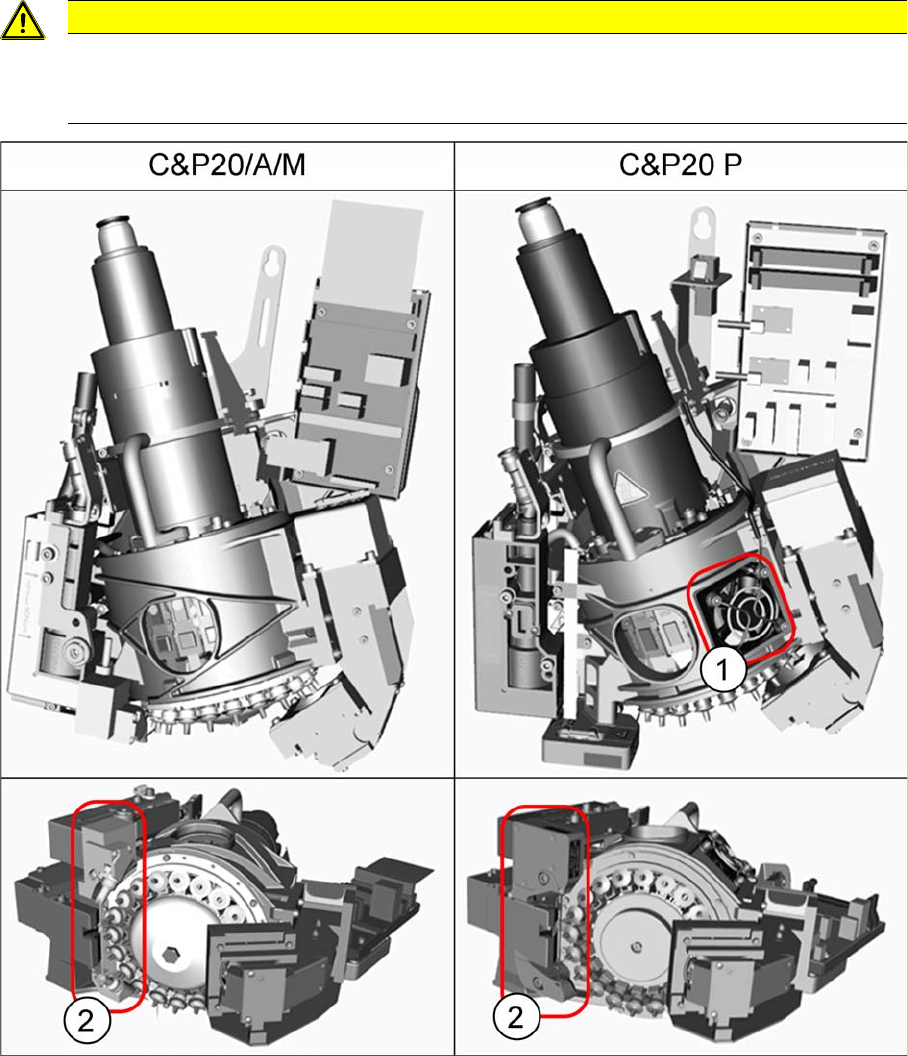

The C&P20/A/M and the C&P20 P head differ in many details. They are easily identified by the following
features:
1. The C&P20 P can be identified by the fan. This fan is not present on the C&P20/A/M heads.
2. The component sensor is flatter and wider on the C&P20 P than on the C&P20/A/M.
CAUTION
Do not confuse the different C&P20 head variants.
► Parts from the C&P20/A/M head can not usually be used for the C&P20 P head (and vice
versa)!
Maintenance Tasks for C&P20/A/M/P Head
Differences Between C&P20, C&P20 A, C&P20 M and C&P20 P
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 37

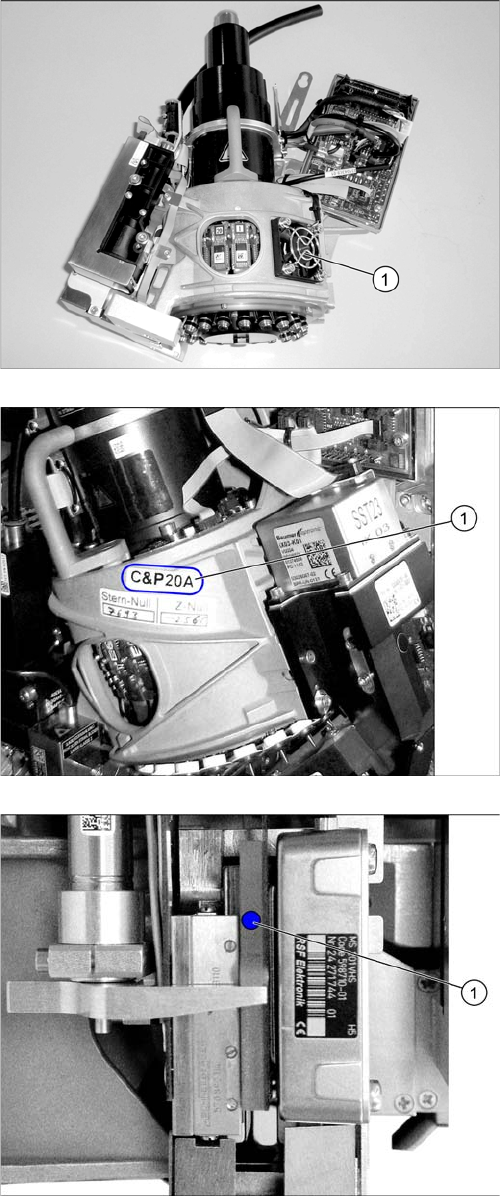

Fan
The housing of the C&P20 P features an additional
fan (1).
This fan is not present on the C&P20/A/M.
Type
The C&P20A housing has a label with the head type on
it (1).
The other C&P20 variants do not have this label.
Linear guidance Z axis
The C&P20A/M/P has a blue dot on the Z axis rotor (1).
If the blue dot is missing, the type is C&P20.
