Maintenance Tasks for C&P20/A/M/P Head 4.6.2 Cleaning the Z Axis Performing Maintenance Tasks Maintenance Manual SIPLACE Placement Heads CPP, C &P20, Twin 45 4.6.2 4 . 6 . 2 C le a n in g t h e Z A x is Cleaning …
Maintenance Tasks for C&P20/A/M/P Head
Performing Maintenance Tasks 4.6.1 Replacing the Pressure Control Valve
44 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin
4.6
4.6 Performing Maintenance Tasks
Performing Maintenance Tasks
4.6.1
4.6.1 Replacing the Pressure Control Valve
Replacing the Pressure Control Valve
Not on CP20 P
Replacin g the Pres sure Contr ol Valve
Replacing the Pressure Control Valve
➢ The placement head must be removed for this maintenance task.
► Replace the pressure control valve. Read the service manual for your placement head for more in-
formation.
NOTICE
Not on C&P20 P
This maintenance task must be performed on all Twin, CPP, C&P20, C&P20 A and C&P20 M
heads.
This maintenance task is not required for the C&P20 P.
NOTICE
Recommendation
We recommend that you have an additional pressure control valve available, so that this can
be easily replaced during head maintenance.
The actual cleaning of the removed pressure control valve can be performed later on.
► For more information about this, read section "6 Maintenance Tasks for Pressure Control
Valve" [ ➙ 65].
Maintenance Tasks for C&P20/A/M/P Head
4.6.2 Cleaning the Z Axis Performing Maintenance Tasks
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 45
4.6.2
4.6.2 Cleaning the Z Axis
Cleaning the Z Axis

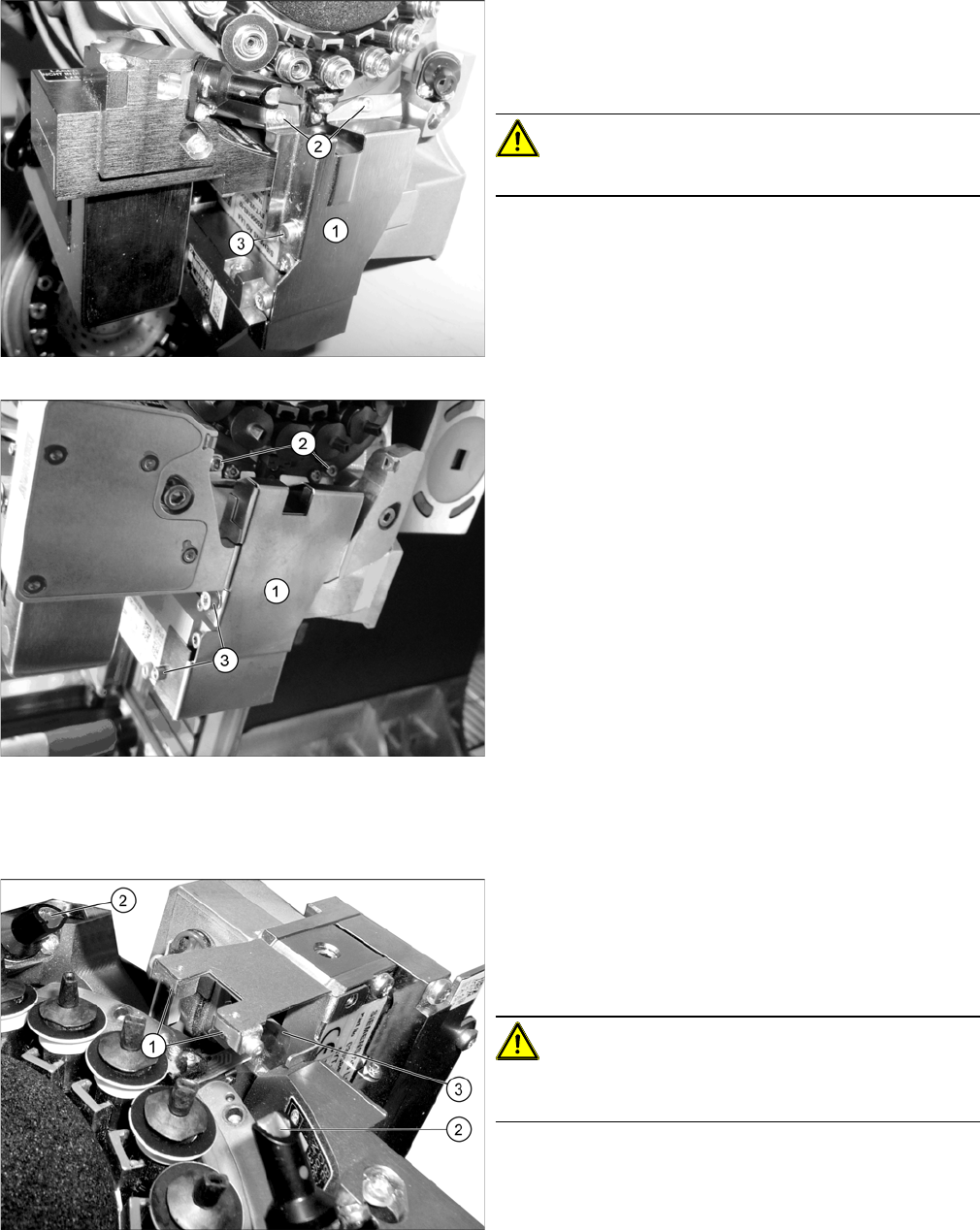

Removing the Cover Plate
Cleaning the z-axis
Cover plate Z axis C&P20/A/M
Cover plate Z axis C&P20 P
► Dismantle the cover plate (1) over the Z axis. Loosen
the screws at (2) and (3). Carefully remove the cover
plate.
For details, refer to the service manual.
CAUTION!
Take care not to damage the component sensor prisms.
Z axis (example of C&P20 A shown)
► Use the Bernstein tweezers ([00377393-xx] or
[00377394-xx], from the starter kit) to remove any
components which have collected at the Z axis. Pay
particular attention to the area around the
magnets (1).
CAUTION!
Take care not to damage the component sensor prisms
(2) or the Flexprint (3).
Maintenance Tasks for C&P20/A/M/P Head
Performing Maintenance Tasks 4.6.2 Cleaning the Z Axis
46 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin

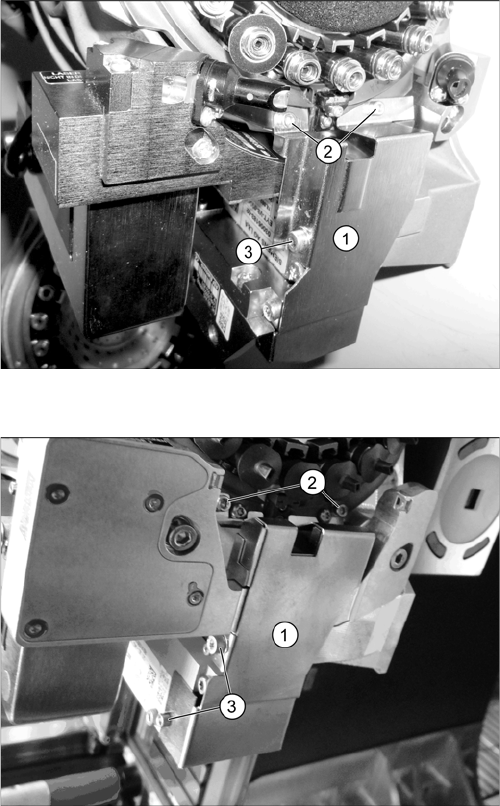

Installing the Cover Plate
Select the applicable version for the head type:
Cover plate Z axis C&P20/A/M
► C&P20/A/M:
Fit the cover plate (1). Screw in and tighten the
screws at (2) until hand-tight and then tighten the
screw(s) at (3) with a torque of 130 Ncm.
For details, refer to the service manual.
Cover plate Z axis C&P20 P
► C&P20 P:
Fit the cover plate (1). Screw in and tighten the
screws at (2) and (3) until hand-tight.
For details, refer to the service manual.
