7.3.2 C&P20/A/M/P: Cleaning/Checking the Holding Circuit
C&P20/A/M/P: Cleaning/Checking the Holding Circuit
► Fill ultrasound bath with a solution of 5 % cleaning medium Alsar 25 NKF and 95 % tap water. The
holding circuit must be completely covered by the fluid.
► Set the ultrasound bath to 50° C.
► Leave the holding circuit in the ultrasound bath for 30 min.
► Take the holding circuit out of the ultrasound bath.
CAUTION
Safety data sheet
► Observe the safety data sheet for the cleaning fluid used.
NOTICE
Recommendation
We recommend that you have an additional holding circuit available, so that this can be easily
replaced during head maintenance.
► Remove the sealing ring (1) and clean it with a lint-
free cleaning cloth. Check the sealing disk for dam-
age and replace if necessary.
► Clean the holding circuit (2)with a lint-free cleaning
cloth.
You can also use an anti-static plastic cleaner for bet-
ter cleaning results.
► Place the holding circuit into the ultrasound bath.
CAUTION!
If you are cleaning multiple holding circuits at the same
time, make sure that these do not touch one another in
the ultrasound bath.
CAUTION!
Neither put the screwed joint and the cover nor the seal-
ing ring and the sealing disk of the holding circuit into the
ultrasound bath.
CAUTION
Different cleaning liquids
► DO NOT ever use the cleaning fluid which is used for the nozzles!
Maintenance Tasks for Holding Circuit
7.3.2 C&P20/A/M/P: Cleaning/Checking the Holding Circuit Performing Maintenance Tasks
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 79
► Blow through the holding circuit with compressed air.
Keep a distance of at least 1 cm to the holding circuit.
Make sure that the fluid is removed completely from the venturi nozzles.
Start with eh outer holes.
Take care of the index pin.

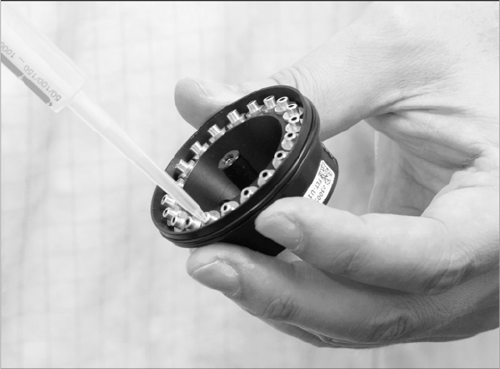

► Rinse the holding circuit with distilled water.
To do this, fill the orange combitip with distilled water
and rinse each of the venturi nozzles from both sides.
