Page +$1:+$ 107 SM471 PLUS Electric Device Ass’y (1/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-019753A ASSY ,AIR-FR ONT AIR P ANEL 1 1 HP06-9000 43 JOINT 1 2 TE07-900 096 ME…

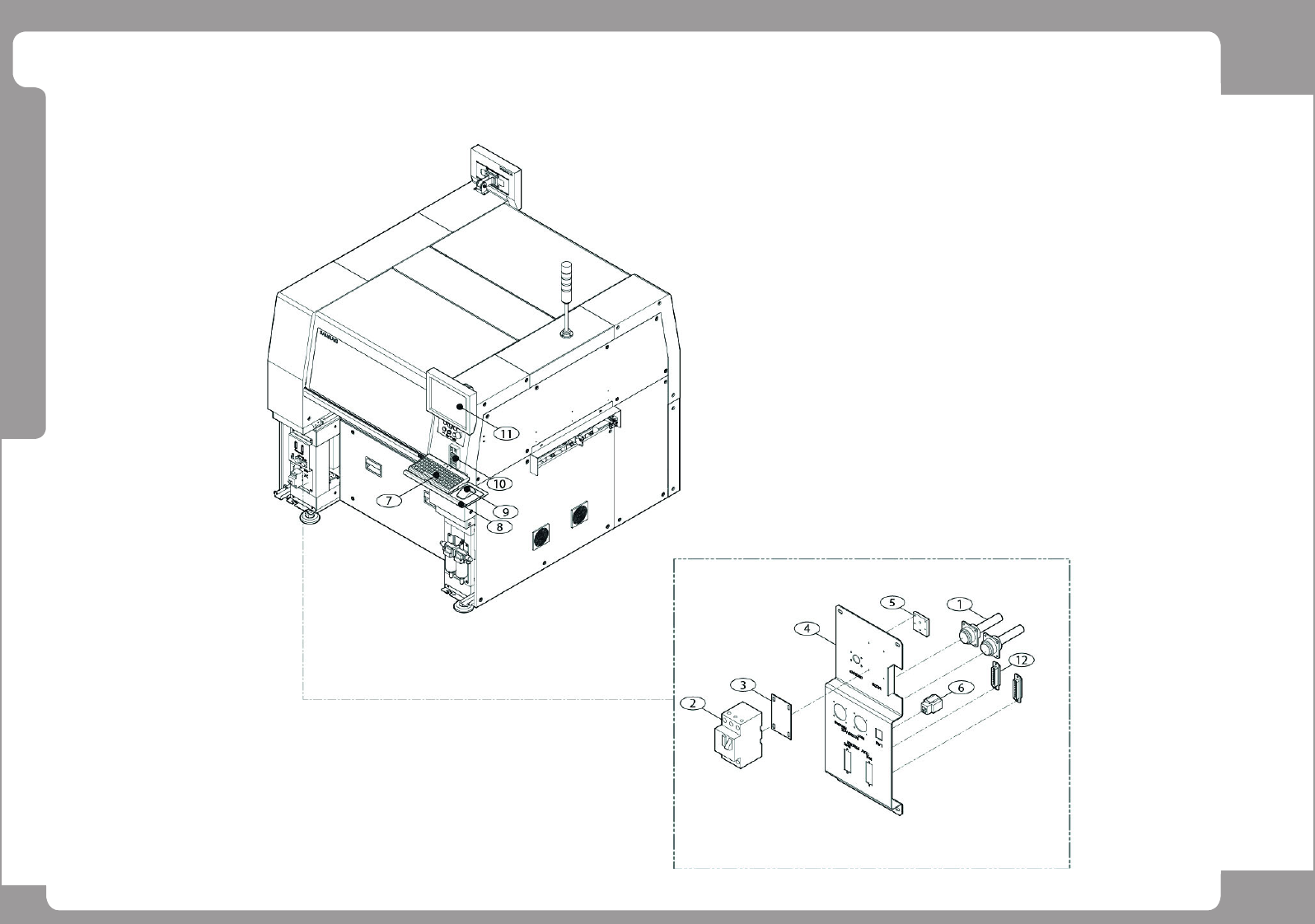

Page
+$1:+$
106
SM471
PLUS

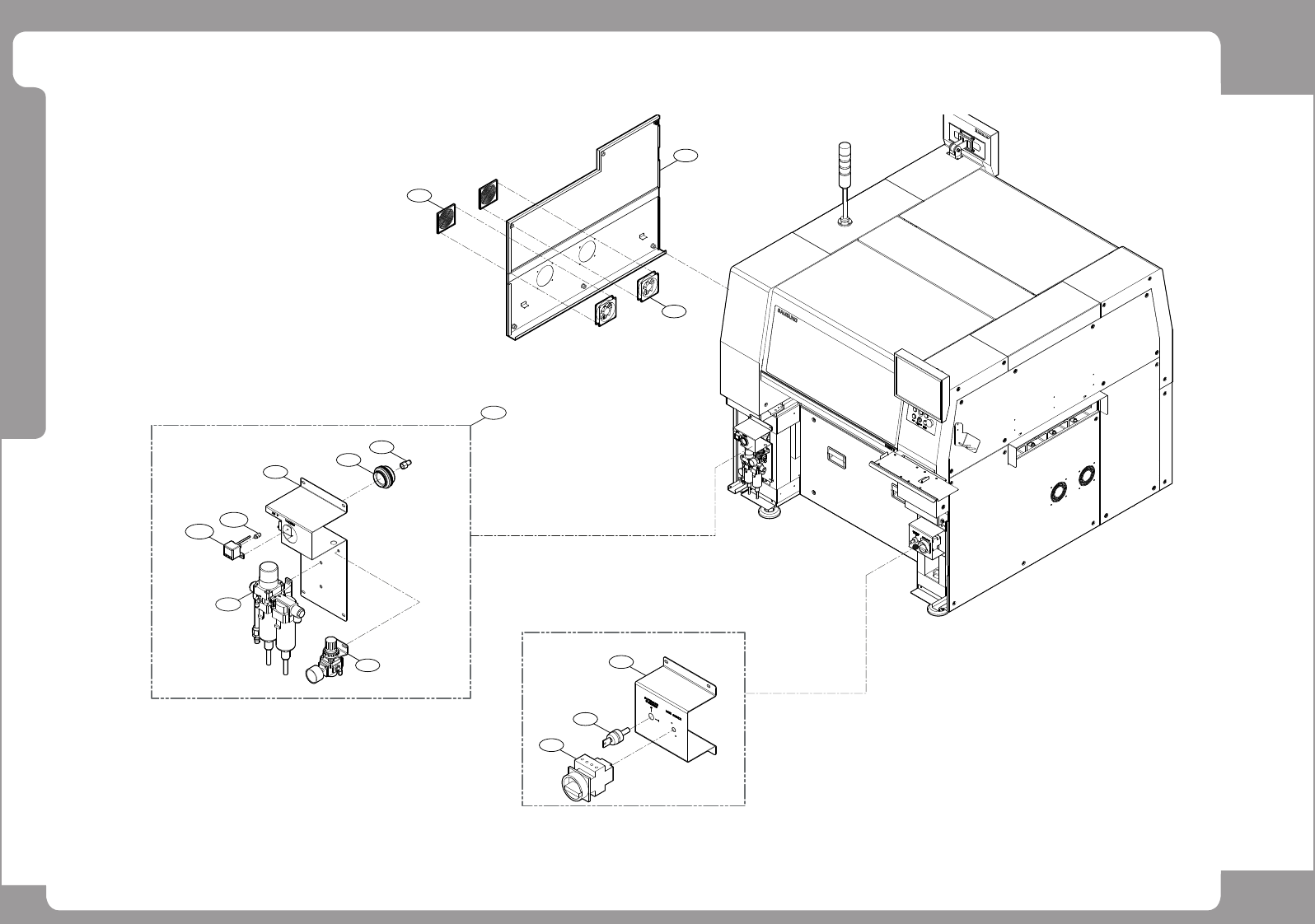

Electric Device Ass’y (1/4)
A
11
12
13
16
15
14
4
2
1
5
7
3
6
Page
+$1:+$
107
SM471
PLUS
Electric Device Ass’y (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-019753A ASSY,AIR-FRONT AIR PANEL 1
1 HP06-900043 JOINT 1
2 TE07-900096 METER 1
3 FC09-006405A BRACKET-BKT AIR F 1
4 HP06-900255 STRAIGHT FITTING 1
5 HP09-000150 COMPONENTS,ELECTRIC 1
6 HP04-001016 FILTER,AIR 1
7 HP09-001019 REGULATOR 1
AM03-007638A CABLE ASSY-AIR INDICATOR 1
EP05-900741 CONNECTOR 1
EP21-900127 TERMINAL 1
AM03-018437A ASSY,AIR-GAUGE-PANEL_NEW_SUB 1
HP06-900195 UNION_Y_FITTING 1
11 EP20-001028 SWITCH,ROTARY-MAIN_SWITCH 1
12 AM03-010079B CABLE ASSY-SAFEGUARD_OV_SW_KEY 1 J90831059C/ AM03-010079A
13 FC09-001672B BRACKET-BKT F POWER 1 FC09-001672A
14 EP07-901528 FAN_FILTER 2
15 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
16 J90833316A FAN_CABLE_ASSY SM-FAN00 2
Page
+$1:+$
108
SM471
PLUS
Electric Device Ass’y (2/4)
