Page +$1:+$ 111 SM471 PLUS Electric Device Ass’y (3/4) NO. Lev . P ART NO . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-018991C ASSY ,BOARD-CAN CONVEYOR IF_ V3.0(NO ILL) 1 AM03-000900A 2 J91741076A CO…
Page
+$1:+$
110
SM471
PLUS

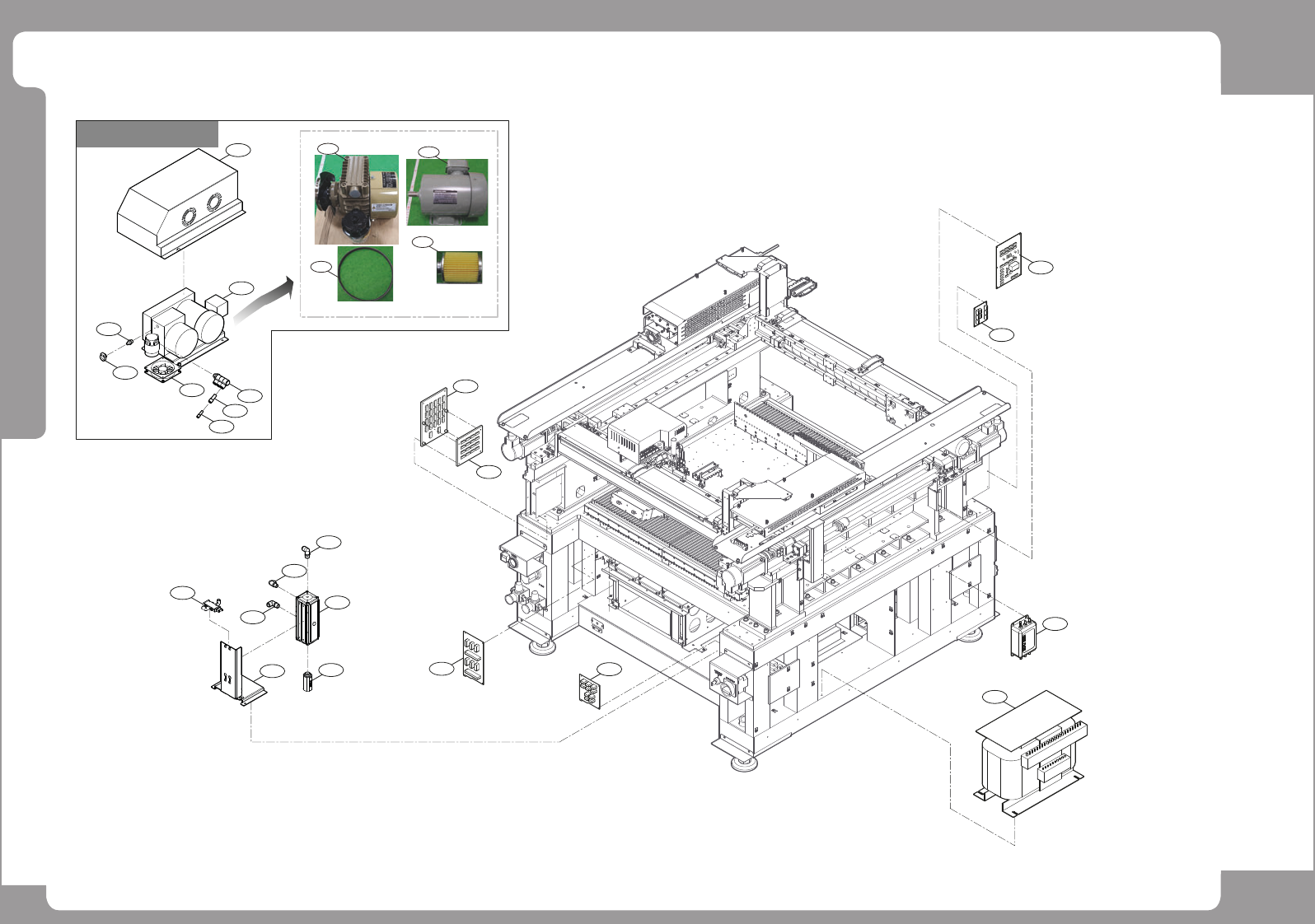

Electric Device Ass’y (3/4)
CAN FEEDER BOARD
7
12
CAN CONVEYOR BOAR
D
22
15
16
13
17
20
21
19
18
12
12
11
14
10
1
2
4
3
9
8
5
Vaccum Pump (Option)
26
25
23
24
Page
+$1:+$
111
SM471
PLUS
Electric Device Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-018991C ASSY,BOARD-CAN CONVEYOR IF_V3.0(NO ILL) 1 AM03-000900A
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 AM03-019057A CABLE ASSY-SM471_NOISE_FILTER_MODULE 1 EP07-901542 / J91671267A
4 EP23-000012A TRANSFORMER 1 EP23-900012
5 AM03-005338B ASSY,BOARD-AXIS SENSOR BD VER1.0 1 AM03-005338A
7 AM06-000359B ASSY,PCB SMD-SM400_VISION_IF_BD 1 AM06-000359A
8 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
9 AM03-015857C ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-015857B
10 FC09-001657B BRACKET-BKT VAC_GEN 1
11 HP11-000058 PUMP 1
12 HP06-900204 FITTING 1
13 HP14-000978 SOL-VAVLE 1 HP14-900045
14 HP09-900158 SILENCER 1
15 HP11-000059 PUMP 1 OPTION
16 FC28-000105 NIPPLE-STRAIGHT 1 OPTION
17 FC29-900005 HOSE_BAND 1 OPTION
18 EP07-901508 COOLING FAN 1 OPTION
19 HP06-000250 FITTING-ELBOW 1 OPTION
20 HP06-000234 FITTING-STRAIGHT 1 OPTION
21 HP06-900046 JOINT 1 OPTION
22 FC15-000967B COVER-COVER PUMP 1 FC15-000967A OPTION
23 AM03-021565A ASSY,AIR-KHA400 PUMP SECTION 1 OPTION
24 AM03-021566A ASSY,ETC,IMS-KHA400 MOTOR SECTION 1 OPTION
25 AM03-021567A ASSY,ETC,IMS-KHA400 BELT SECTION 1 OPTION
26 AM03-019040A VACUUM PUMP FILTER ELEMENT 1 OPTION
Page
+$1:+$
112
SM471
PLUS

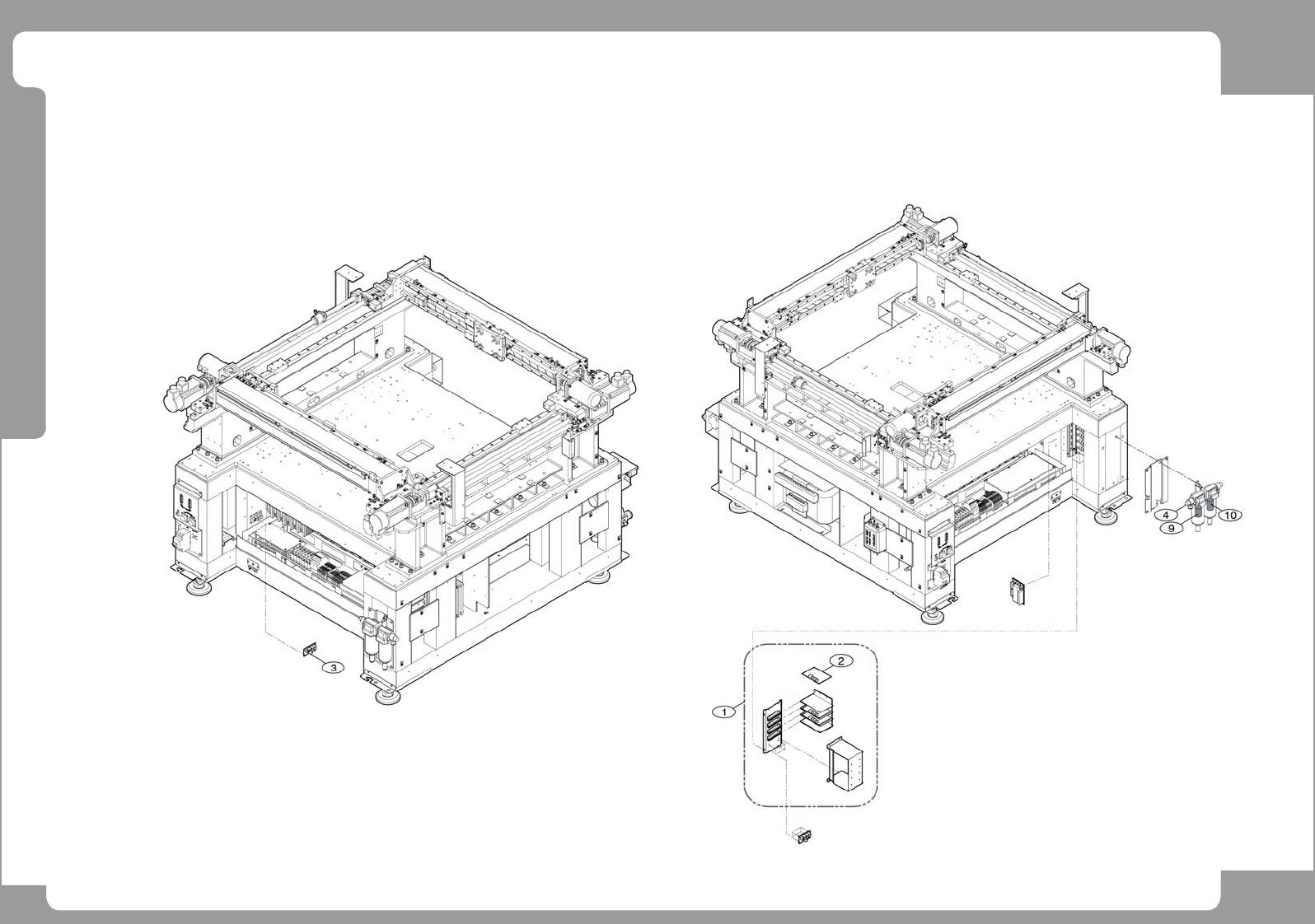

Electric Device Ass’y (4/4)
