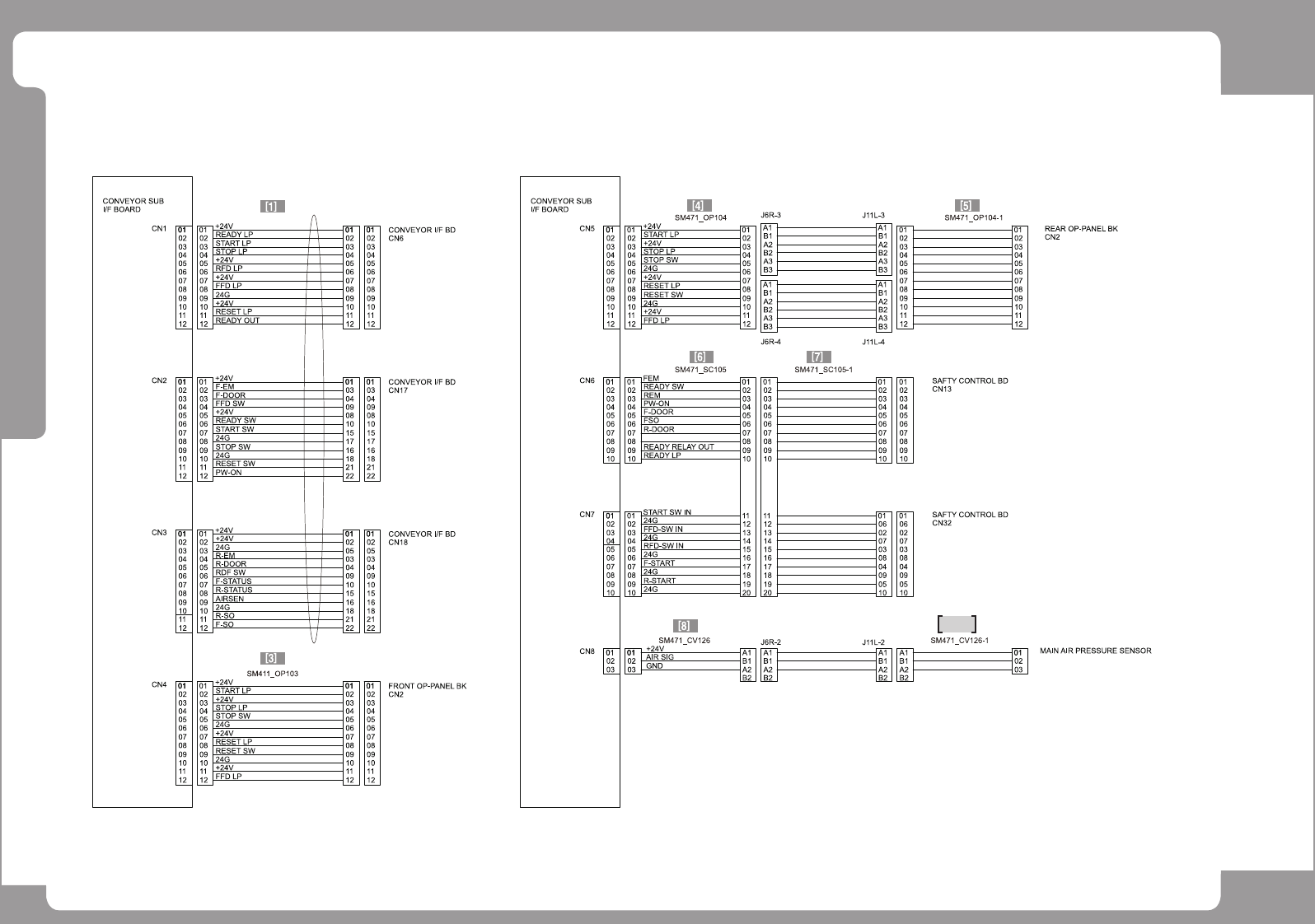

NO. Lev. PART NO. PART NAME Q'TY Old No. Reference
1 AM03-020639A C/S/W/O CABLE 1 J90831131B/ AM03-010081A SM33-CV003
2 AM03-020639A C/S/W/O CABLE 1 AM03-003543A SM421_CV113
3 AM03-004476B CABLE ASSY-FRONT_OP_SW 1 SM411_OP103
4 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005474A SM471_OP104
5 AM03-005475B CABLE ASSY-REAR_OP_SW_J11L 1 SM471_OP104-1
6 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005526A SM471-SC105
7 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-005527A SM471-SC105-1
8 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005448A SM471-CV126
9 AM03-005449A CABLE ASSY-AIR_INDICATOR_11R 1 AM03-005449A SM471-CV126-1
