Page +$1:+$ 147 SM471 PLUS Head IF Board (2/2) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005598 B CABLE ASSY -FL Y_COAXIAL 1 AM03-005598A SM471_HD010- 1 1 2 AM03-00558 2D CABL…
Page
+$1:+$
146
SM471
PLUS

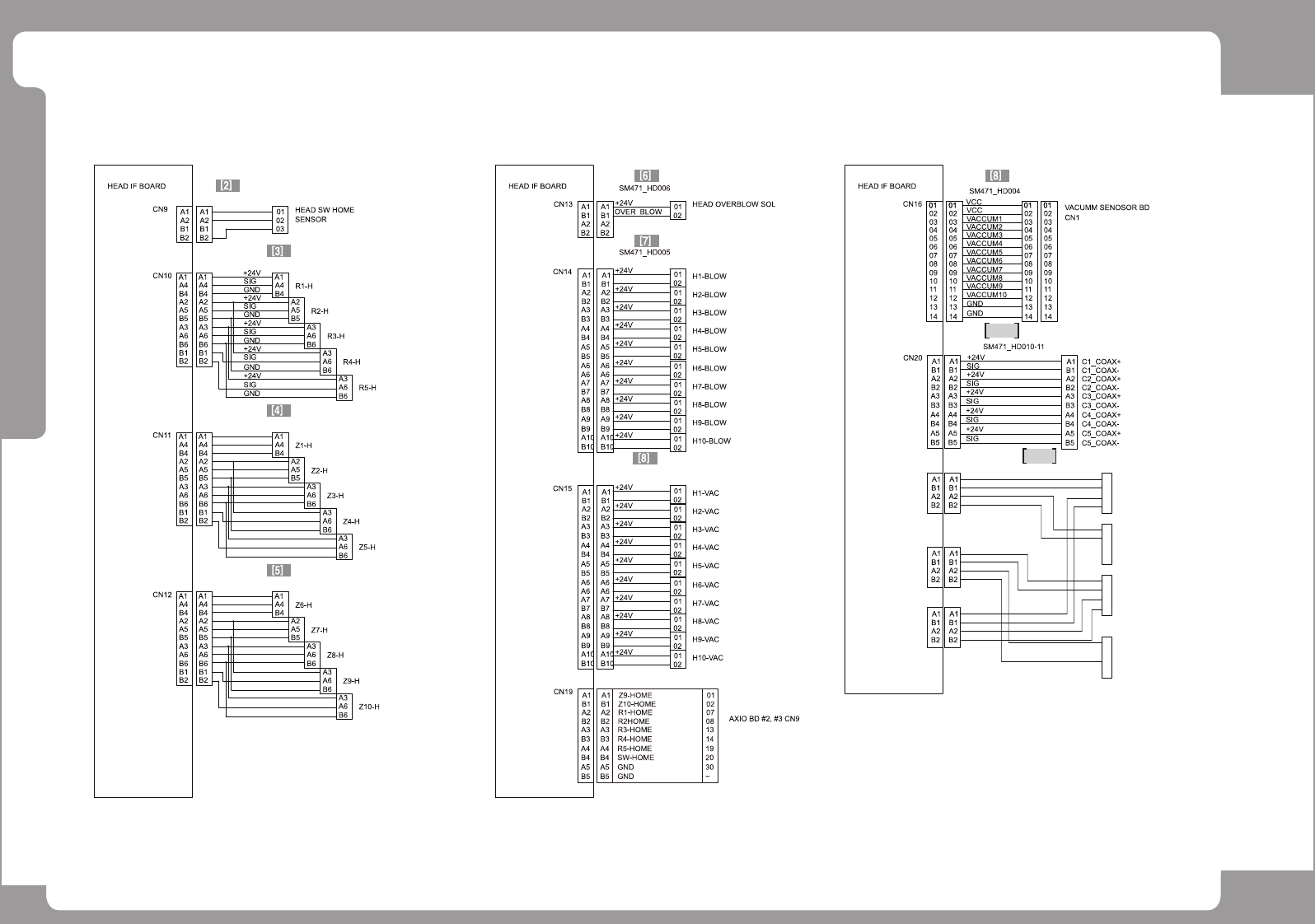

Head IF Board (2/2)
CN8
CN17
CN22
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
+24V
SM471_HD010-12
FID1 OUT1
+24V
+24V
+24V
+24V
FID2 OUT1
FID1 OUT2
FID2 OUT2
FID2 INNER2
#1 FIDUCIAL
OUTER
#1 FIDUCIAL
INNER
#2 FIDUCIAL
OUTER
#2 FIDUCIAL
INNER
+24V
FID1 INNER
1
9
SM471C-HD007
SM47C_HD003
AM03-014949A
SM471_HD009
SM471-HD004
Page
+$1:+$
147
SM471
PLUS
Head IF Board (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11
2 AM03-005582D CABLE ASSY-R_HOME_SENSOR 1 AM03-005582B /AM03-005582C SM471-HD007
3 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM471-HD003
4 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM471-HD003-1
5 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009
6 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1 SM471-HD006
7 AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1 SM471-HD005
8 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1 SM471-HD004
9 AM03-005589A CABLE ASSY-FID2_COAX 1 SM471_HD010-2
10 AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11
Page
+$1:+$
148
SM471
PLUS
Axis Sensor Board Interface (1/3)
SM47C_AX103
SM471_CS151
4
