Page +$1:+$ 148 SM471 PLUS Axis Sensor Board Interface (1/3) SM47C_AX103 SM471_CS151 4
Page
+$1:+$
147
SM471
PLUS
Head IF Board (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11
2 AM03-005582D CABLE ASSY-R_HOME_SENSOR 1 AM03-005582B /AM03-005582C SM471-HD007
3 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM471-HD003
4 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM471-HD003-1
5 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009
6 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1 SM471-HD006
7 AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1 SM471-HD005
8 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1 SM471-HD004
9 AM03-005589A CABLE ASSY-FID2_COAX 1 SM471_HD010-2
10 AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11
Page
+$1:+$
148
SM471
PLUS

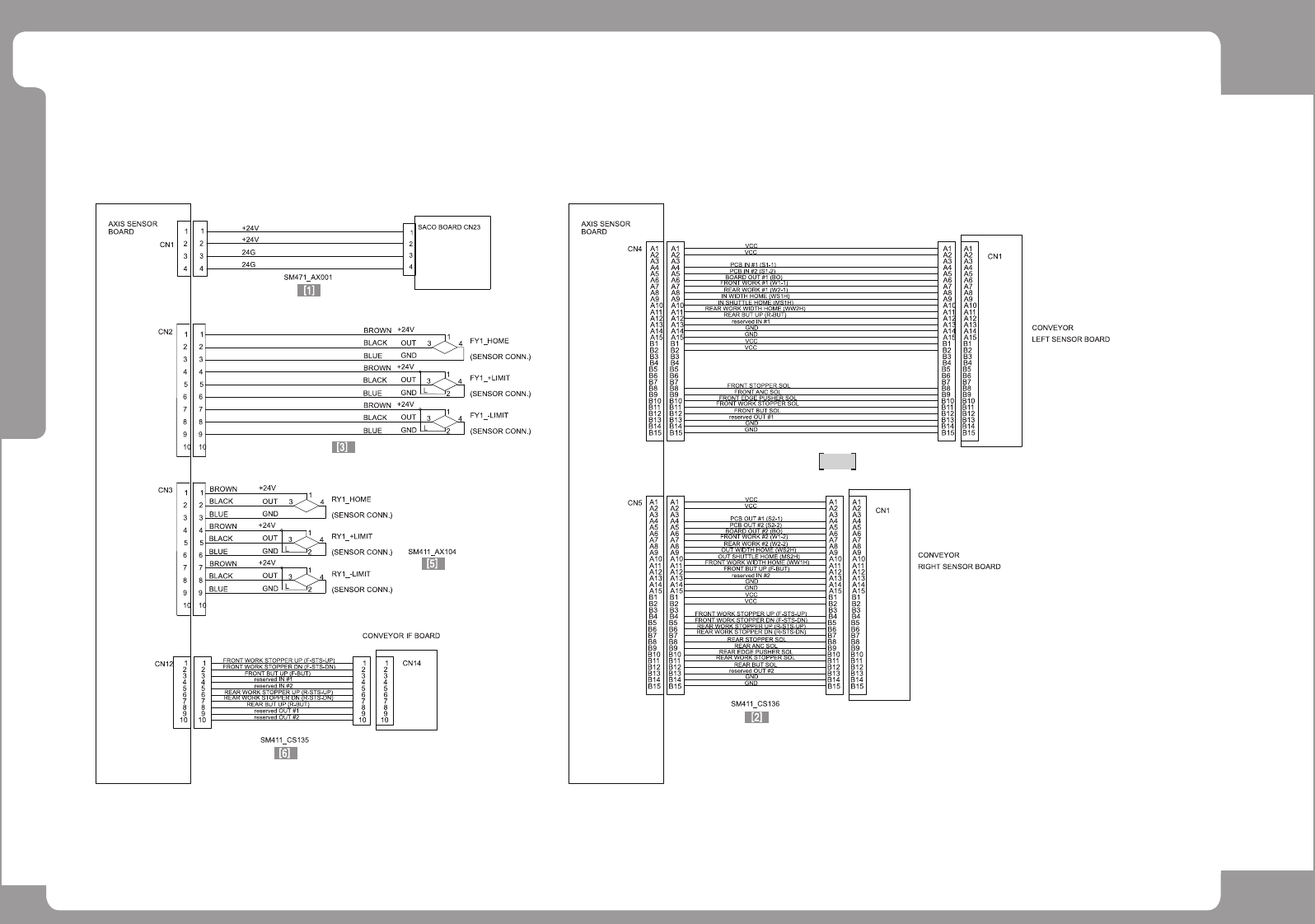

Axis Sensor Board Interface (1/3)
SM47C_AX103
SM471_CS151
4
Page
+$1:+$
149
SM471
PLUS
Axis Sensor Board Interface (1/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-008734A CABLE ASSY-AXIS_SENSOR_BD_PW 1 SM471_AX001
2 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM411_CS136
3 AM03-005391A CABLE ASSY-FY_AXIS_SENSOR-EXT 1 SM471_AX103-1
4 AM03-005390A CABLE ASSY-FY_AXIS_SENSOR 1 SM471_AX103
5 AM03-004337B CABLE ASSY-RY_AXIS_SENSOR 1 AM03-004337A SM411_AX104
6 AM03-004348C CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 AM03-004348B SM411_CS135
7 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM411_CS151-1
8 AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_CS151
