Page +$1:+$ 153 SM471 PLUS Axis Sensor Board Interface (3/3) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supp ly L T Reference 1 AM03-020643 A CABLE ASSY -AX_BD_X2_MOT_SNS_J5R 1 AM03-00542 7B SM471_CS142 2…
Page
+$1:+$
152
SM471
PLUS

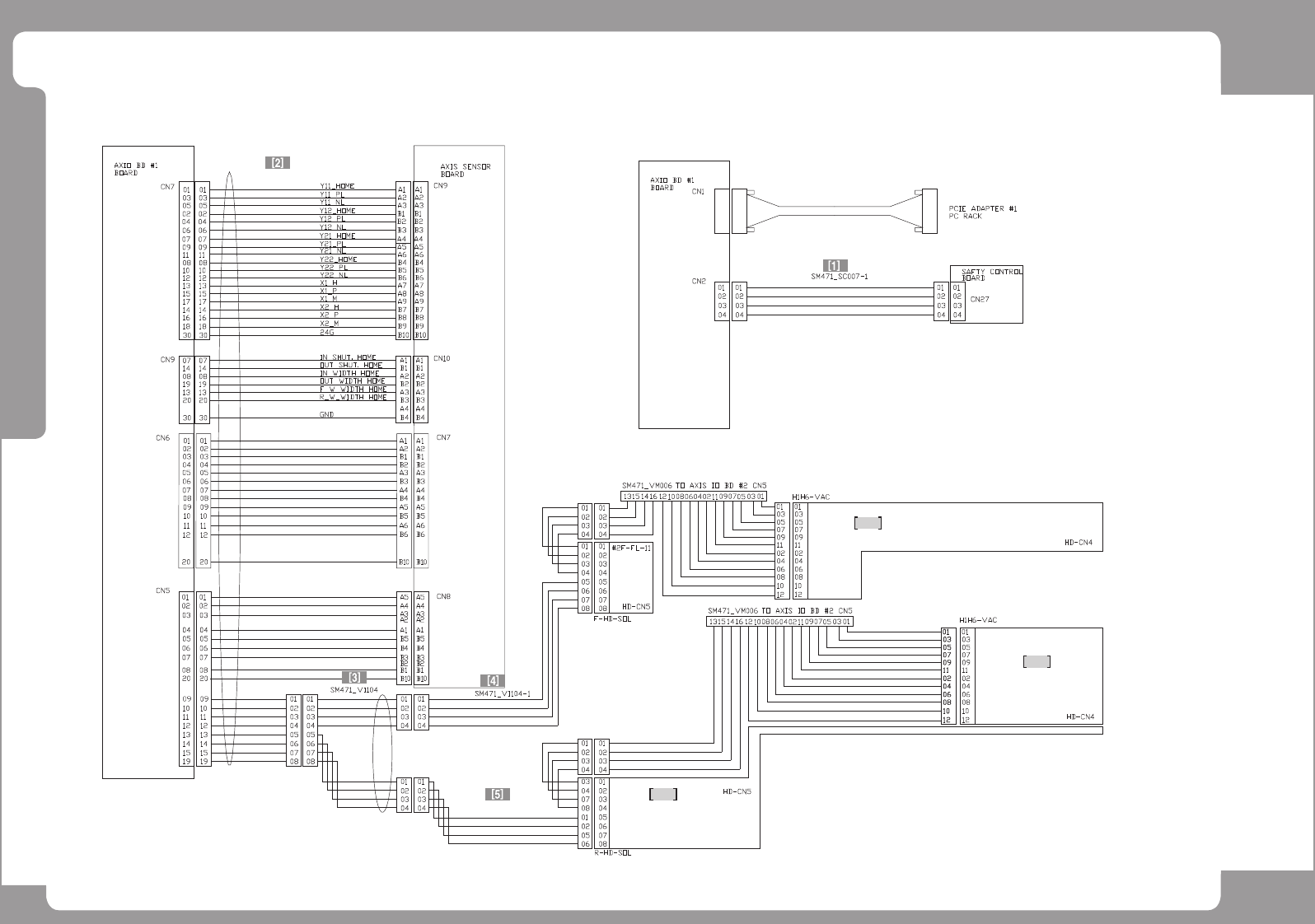

Axis Sensor Board Interface (3/3)
SM471_CS142-1
SM471_CA102-4_LT
SM471_FL002 #1
SM471_FL002 #11
SM471_FL002 #11
SM471_FL001 #11
SM471_FL001 #11
6
6
9
10
9
10
Page
+$1:+$
153
SM471
PLUS
Axis Sensor Board Interface (3/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-020643A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 AM03-005427B SM471_CS142
2 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005430A SM471_CV201
3 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005429B SM471_CS142-1
4 AM03-007246B CABLE ASSY-X AXIS SENSOR 1 SM33_AX002
5 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008917A SM471_CS035
6 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008918A SM471_CS050
7 AM03-005538B CABLE ASSY-HD_VAC-BLOW_CTRL 1 AM03-005538A SM471-VI104
8 AM03-005539B CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1
9 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005540B/ AM03-005540C SM471-VI104-2
10 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006
Page
+$1:+$
154
SM471
PLUS
Axis IO Board (1/13)
SM471_CA102_4_LT SM471_FL002 #11
7
SM471_FL001 #11
6
SM471_FL001 #11
6
SM471-CS035_LT
