Page +$1:+$ 157 SM471 PLUS Axis IO Board (2/13) NO. Lev . P ART NO. P ART NAME Q'TY Ol d No. Supp ly Supply L T Reference 1 AM03-005557B CABLE ASSY -FY1_F Y2_DRV_COMMAND 2 SM471-VM003 2 AM03-020620A CABLE ASSY -FY1 …
Page
+$1:+$
156
SM471
PLUS

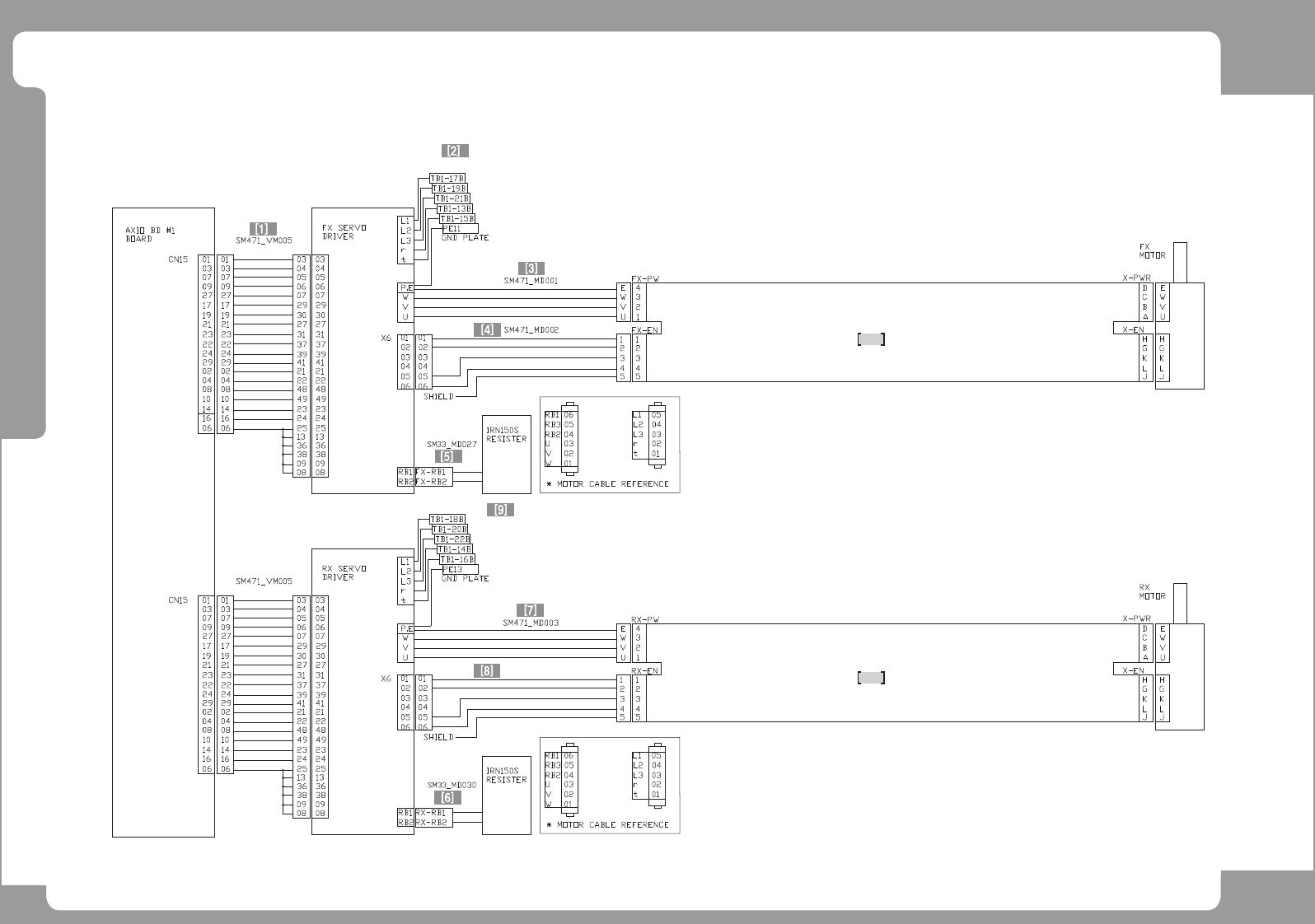

Axis IO Board (2/13)
SM471C-VM003
SM471C-MD006_80
SM33_MD028
SM471C-MD008_80
SM471C-MD010_80
SM471C-VM004
SM471C-VM004
SM471C-MD012_80
SM33-MD031
Page
+$1:+$
157
SM471
PLUS
Axis IO Board (2/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005557B CABLE ASSY-FY1_FY2_DRV_COMMAND 2 SM471-VM003
2 AM03-020620A CABLE ASSY-FY1 MOTOR PWR_90 1 AM03-008735A SM471-MD005_80
3 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471-MD006_80
4 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471_MD028
5 AM03-005493B CABLE ASSY-FY1_FY2_SERVO_POWER 2 AM03-005493A SM471_PW018
6 AM03-020618A CABLE ASSY-FY2 MOTOR PWR_90 1 AM03-008744A SM471-MD007_80
7 AM03-020617A CABLE ASSY-FY2 MOTOR ENC_90 1 AM03-008739A SM471-MD008_80
8 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD029
9 AM03-020621A CABLE ASSY-RY1 MOTOR PWR_90 1 AM03-008745A SM471-MD009_80
10 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD010_80
11 AM03-020619A CABLE ASSY-RY2 MOTOR PWR_90 1 AM03-008747A SM471-MD011_80
12 AM03-020614A CABLE ASSY-RY2 MOTOR ENC_90 1 AM03-008748A SM471-MD012_80
13 AM03-005558B CABLE ASSY-RY1_RY2_DRV_COMMAND 2 SM471-VM004
14 AM03-005494B CABLE ASSY-RY1_RY2_SERVO_POWER 2 AM03-005494A SM471_PW019
15 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032
16 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD031
Page
+$1:+$
158
SM471
PLUS
Axis IO Board (3/13)
SM511_PW016_LIQI
SM511_PW017_LIQI
SM471C_MD004
SM471-FL001 # 12
10
SM471-FL001 # 12
10
