Page +$1:+$ 161 SM471 PLUS Axis IO Board (4/13) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-0055 73B CABLE ASSY -MS1_WS1_DRV_ COMMAN 2 SM471_VM0 13 2 AM03-010080 A S HUTTLE_WIDT…
Page
+$1:+$
160
SM471
PLUS

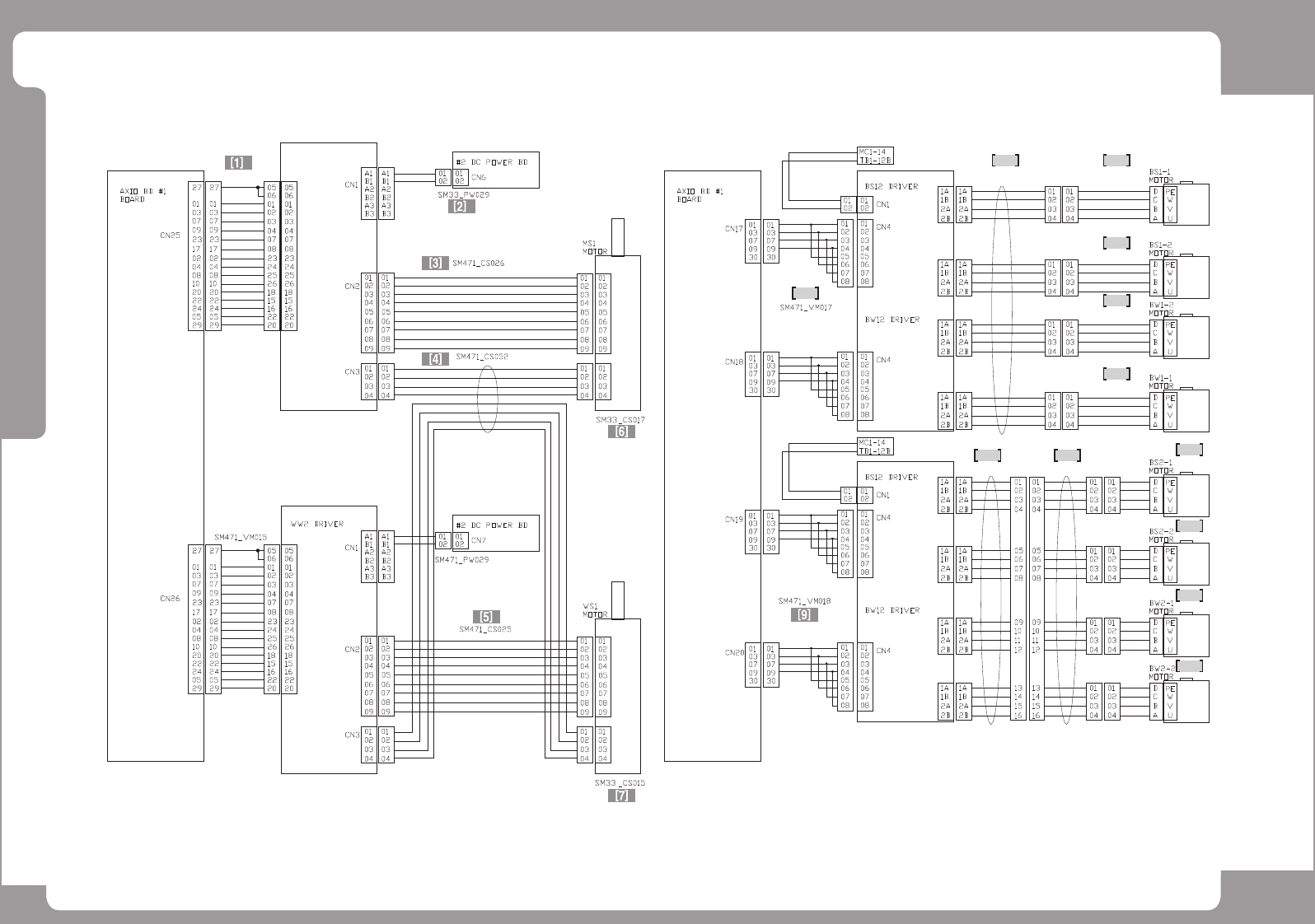

Axis IO Board (4/13)
CN22
SM511C_VM013
WS1
5
SM33-CS016
13
2
CN23
SM511C_VM014
Page
+$1:+$
161
SM471
PLUS
Axis IO Board (4/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005573B CABLE ASSY-MS1_WS1_DRV_COMMAN 2 SM471_VM013
2 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 4 J90831091C SM471_PW029
3 AM03-008897A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS021
4 AM03-008896A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS054
5 AM03-002180A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016
6 AM03-008899A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS022
7 AM03-008023A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012
8 AM03-008900A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS023
9 AM03-008898A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS020
10 AM03-006636A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33_CS013
11 AM03-014696B CABLE ASSY-WW1_MS2_DRV_COMMAND 2 AM03-005574B SM471_VM014
12 AM03-008024A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014
Page
+$1:+$
162
SM471
PLUS
Axis IO Board (5/13)
SM511C_VM015
13
14
15
16
10
8
CN2
SM48_CS229_LT
12
SM411_CS251-1
11
17
18
19
20
SM411_CS251
SM411_CS020
SM411_CS021
SM411_CS022
SM411_CS023
SM411_CS026
SM411_CS027
SM411_CS024
SM411_CS025
CN2
CN3
CN3
CN2
CN3
CN2
CN3
