Page +$1:+$ 165 SM471 PLUS Axis IO Board (6/13) NO. Lev . P ART NO. P ART NAME Q'T Y Old No. Supply Supply L T Reference 1 AM03-020644 A CABLE ASSY -FR_STEP_DR V_PWR-EXT1 1 AM03-008731A SM47 1-SC007 2 AM03-005505A C…
Page
+$1:+$
164
SM471
PLUS

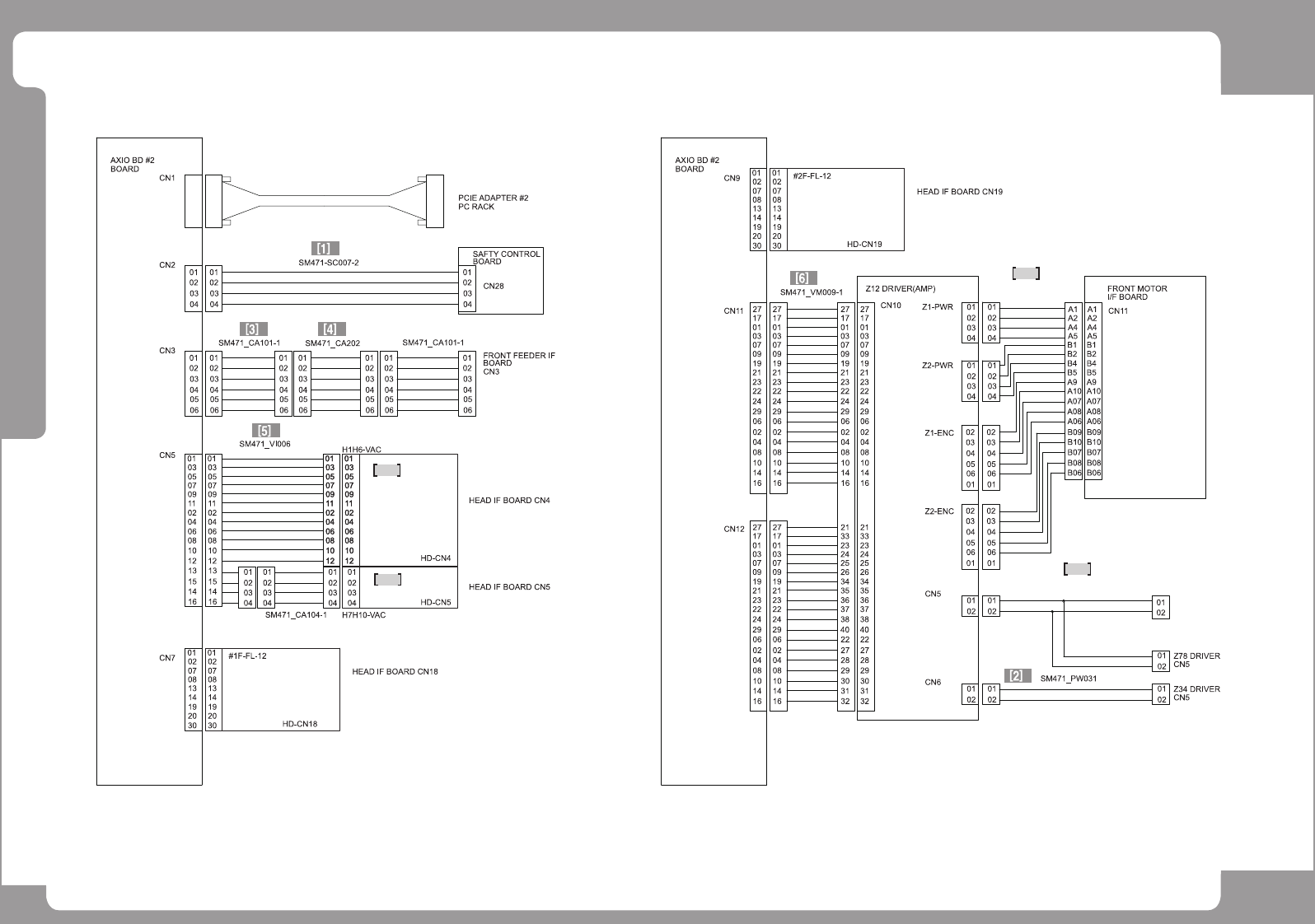

Axis IO Board (6/13)
7
SM471C-PW123
DC P.S #5
9
SM471_FL001 #3,4
9
SM471_FL001 #11
8
SM471_FL002 #11
Page
+$1:+$
165
SM471
PLUS
Axis IO Board (6/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-020644A CABLE ASSY-FR_STEP_DRV_PWR-EXT1 1 AM03-008731A SM471-SC007
2 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
3 AM03-005392B CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 3 SM471_CA101-1
4 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201
5 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006
6 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1
7 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1
8 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123
Page
+$1:+$
166
SM471
PLUS

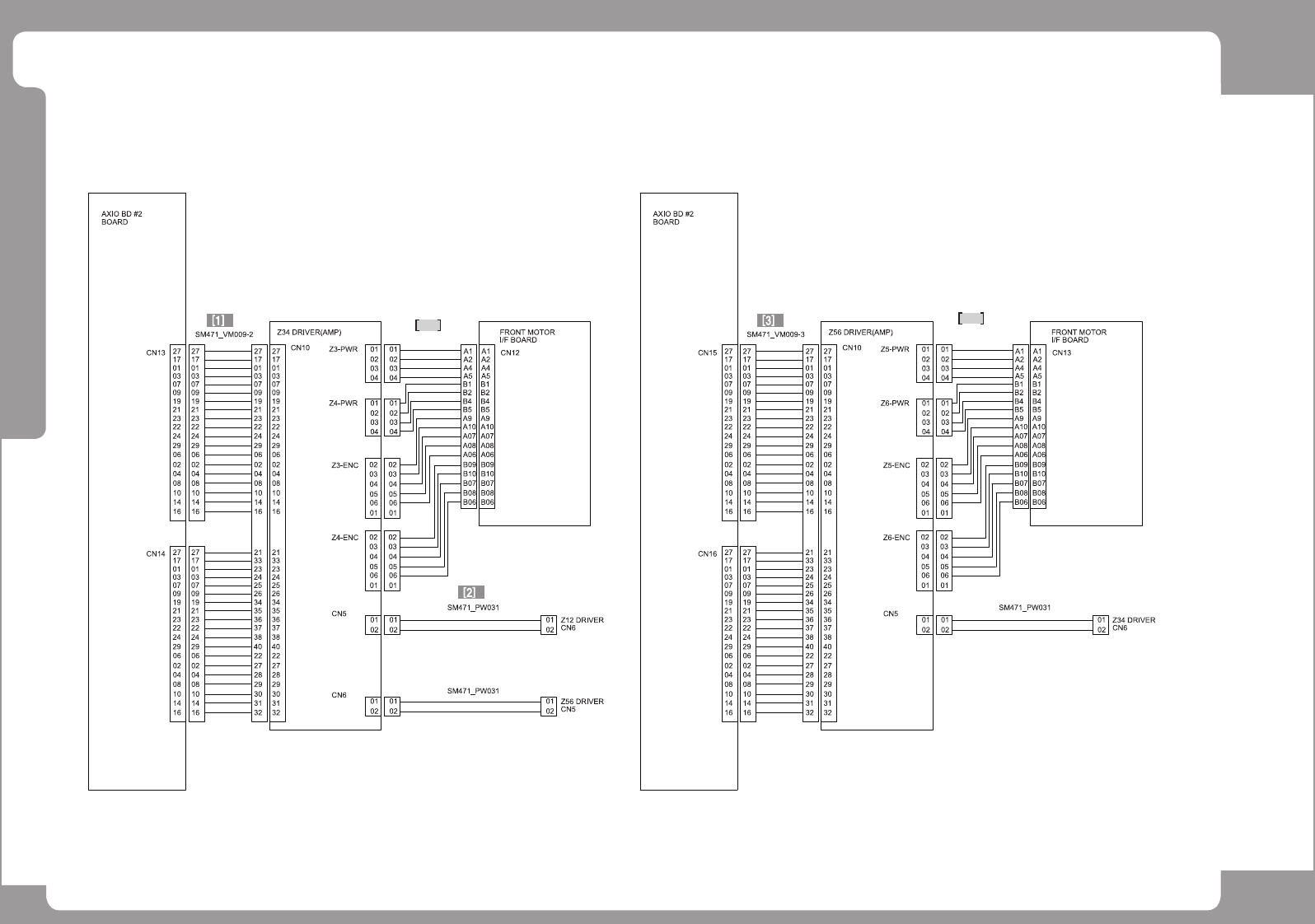

Axis IO Board (7/13)
4
SM471_FL001 #5,6
4
SM471_FL001 #7,8
