Page +$1:+$ 171 SM471 PLUS Axis IO Board (9/13) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005570A CABLE ASSY -R4_R5 DRV COMMAND 1 SM47 1-VM01 1-1 2 AM03-005570A CABLE ASSY -R4…
Page
+$1:+$
170
SM471
PLUS

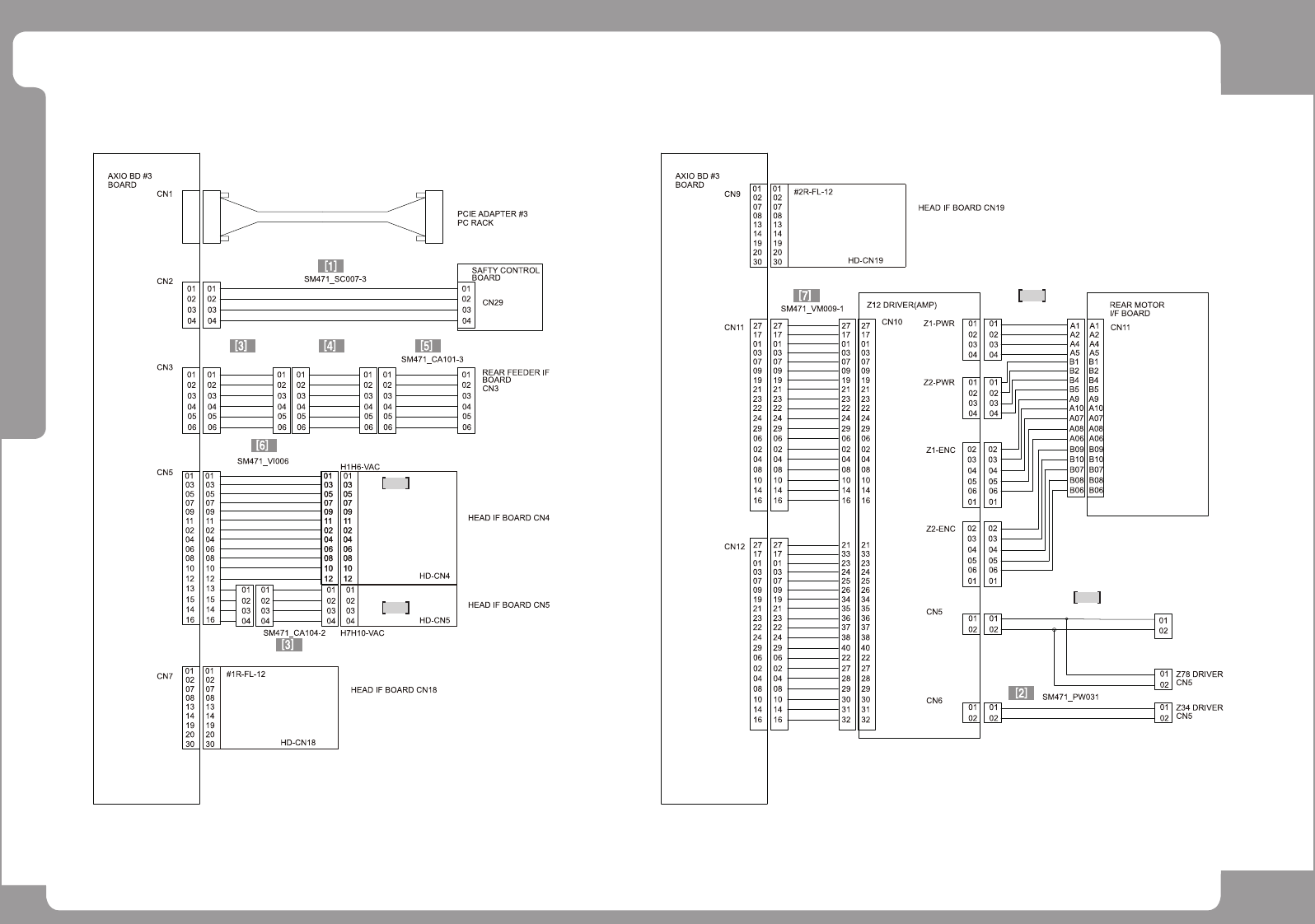

Axis IO Board (9/13)
7
SM471_FL002 #9
SM471-VM006_LIQI
SM471_PW016_LIQI
SM471-MD013_LIQI
SM471C-MD014
8
SM471_FL001 #9,10
Page
+$1:+$
171
SM471
PLUS

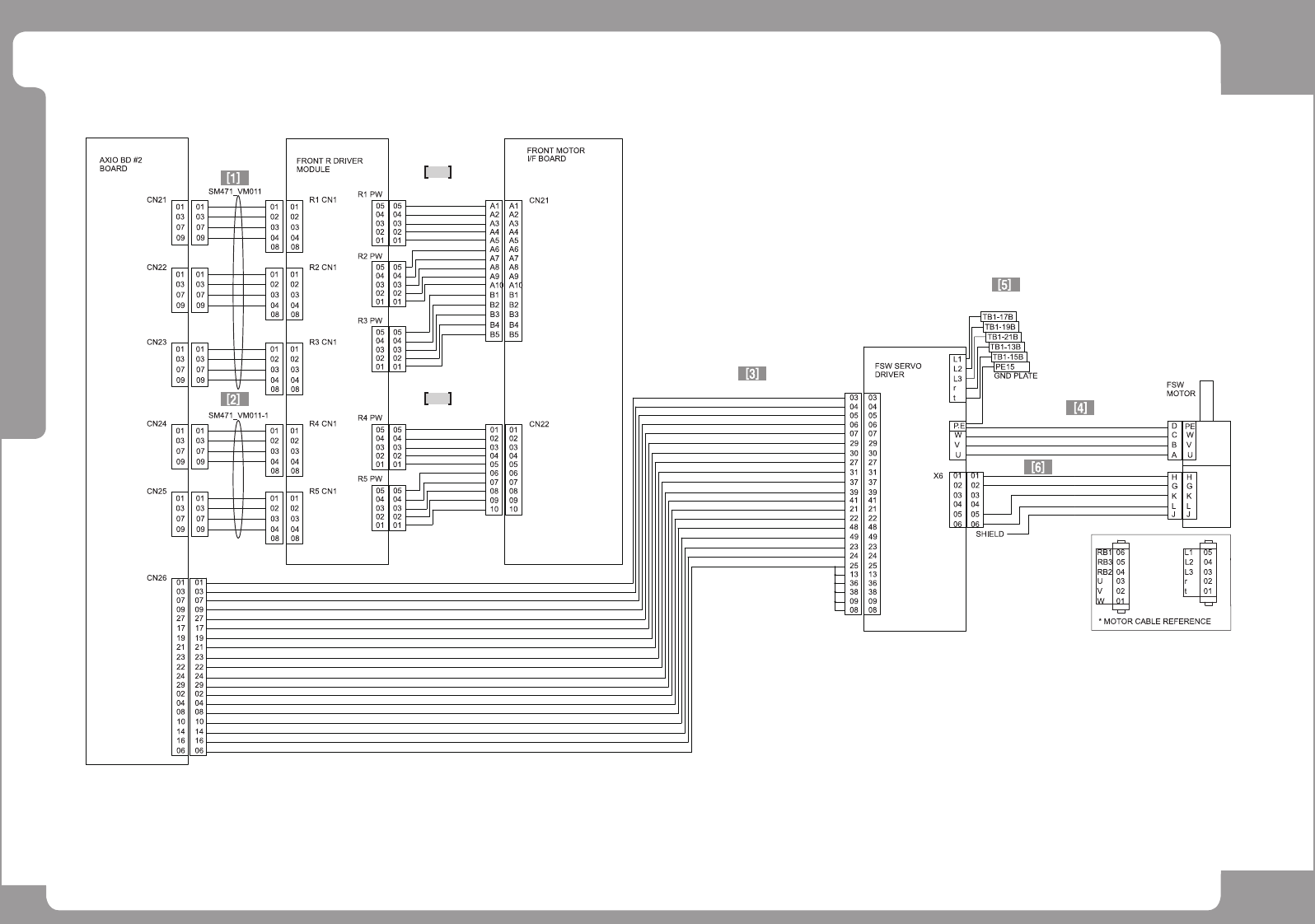

Axis IO Board (9/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1
2 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1
3 AM03-008913A CABLE ASSY-FSW_DRV_COMMAND 1 SM471-VM006
4 AM03-008749A CABLE ASSY-FSW_MOTOR_PWR 1 SM471-MD013
5 AM03-014723 CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A SM471_PW016
6 AM03-008750A CABLE ASSY-FSW_MOTOR_ENC 1 SM471-MD014
Page
+$1:+$
172
SM471
PLUS
Axis IO Board (10/13)
SM471C_PW124
DC P.S #5
8
10
9
SM471_CA102-4_LT SM471_CA202
SM471_FL001 #11
SM471_FL002 #11
10
SM471_FL001 #8,9
