SM471_PLUS_TRM(Ver2.5_CS20.12) - 第178页
Page +$1:+$ 174 SM471 PLUS Axis IO Board (11/13) SM471_FL001 # 10,1 1 4 SM471_FL001 # 12,13 4
Page
+$1:+$
173
SM471
PLUS
Axis IO Board (10/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008732A SM471_SC007-3
2 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
3 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005395B SM471_CA102-4
4 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201
5 AM03-020642A CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1 AM03-005394B SM471_CA101-3
6 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006
7 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1
8 AM03-005503B CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471-PW124-1
9 AM03-005502A CABLE ASSY-RZ1-RZ10 DC24V PW 1 SM471-PW124
Page
+$1:+$
174
SM471
PLUS
Axis IO Board (11/13)
SM471_FL001 # 10,11
4
SM471_FL001 # 12,13
4

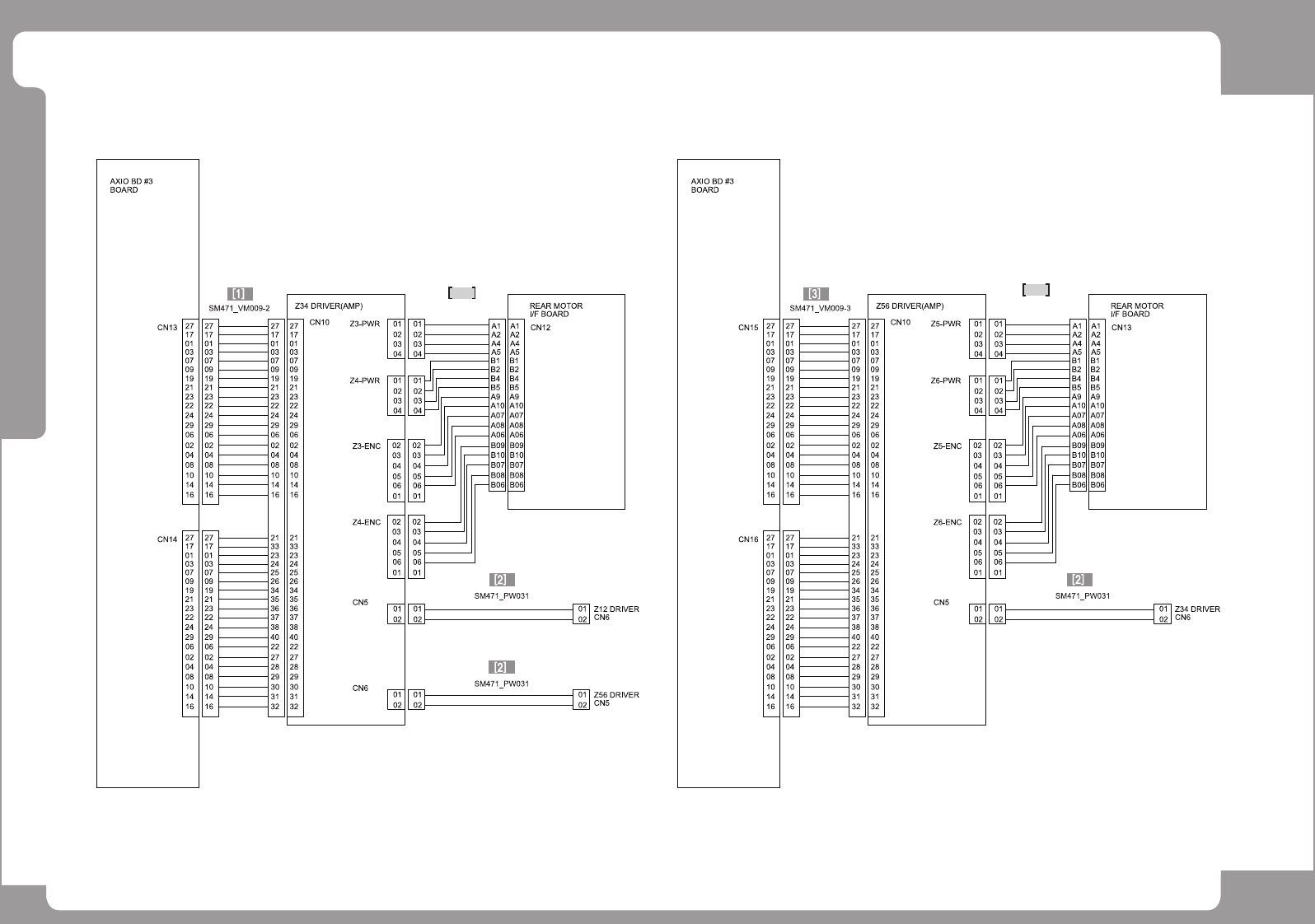

Page
+$1:+$
175
SM471
PLUS
Axis IO Board (11/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2
2 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
3 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3
