Page +$1:+$ 177 SM471 PLUS Axis IO Board (12/13) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005567 A CABLE ASSY -Z78_DRV_COM MAND 1 SM471-VM009-4 2 AM03-005501 A CABLE ASSY -FZ…
Page
+$1:+$
176
SM471
PLUS

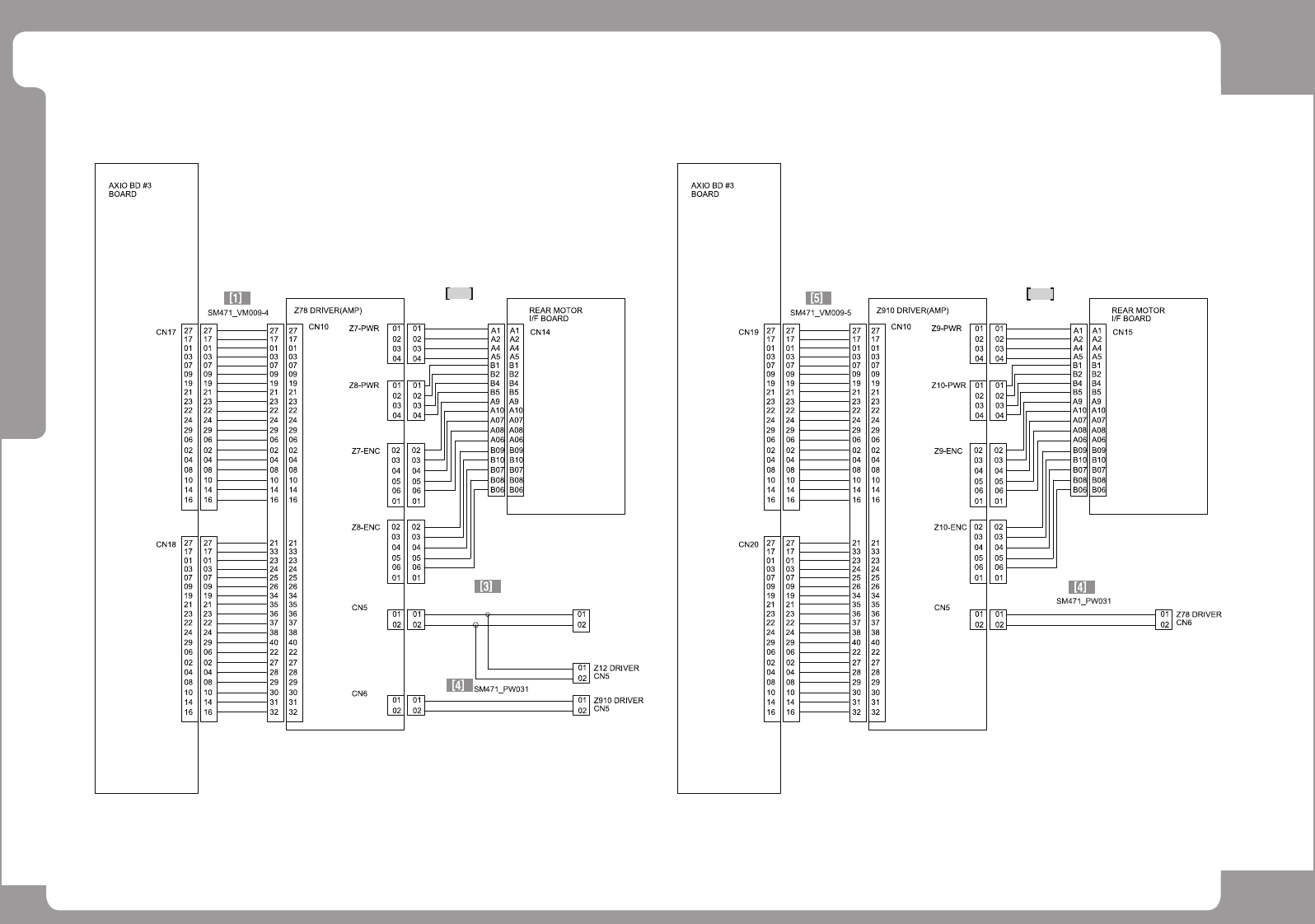

Axis IO Board (12/13)
SM471_FL001 # 3,4
SM471C-PW123
DC P.S #5
2
SM471_FL001 # 5,6
2
Page
+$1:+$
177
SM471
PLUS
Axis IO Board (12/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4
2 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1
3 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123
4 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
5 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5
Page
+$1:+$
178
SM471
PLUS
Axis IO Board (13/13)
7
SM471_FL002 #9
8
9
SM471_FL001 #9,10
SM471-MD015_LIQI
SM471-VM007_LIQI
