Page +$1:+$ 185 SM471 PLUS FR Motor IF Board (2/3) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005618A CABLE ASSY -R1_MOTOR 1 SM4 71_MD038 2 AM03-005619A CABLE ASSY -R2_MOTOR 1 …
Page
+$1:+$
184
SM471
PLUS
FR Motor IF Board (2/3)
6
SM471_FL001 #3,4
6
SM471_FL001 #7,8
CN13
6
SM471_FL001 #5,6
Page
+$1:+$
185
SM471
PLUS

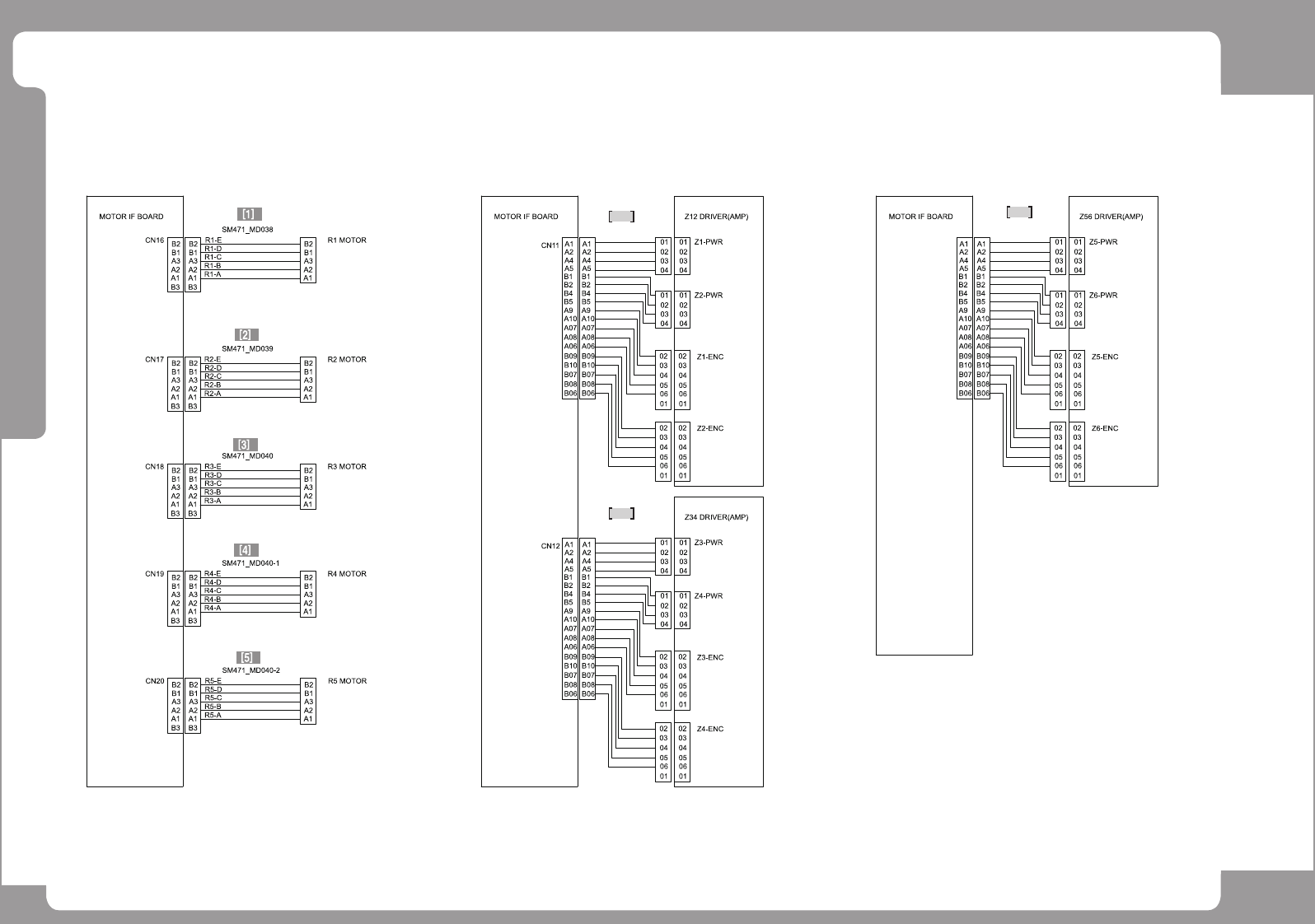

FR Motor IF Board (2/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005618A CABLE ASSY-R1_MOTOR 1 SM471_MD038
2 AM03-005619A CABLE ASSY-R2_MOTOR 1 SM471_MD039
3 AM03-005620A CABLE ASSY-R3_MOTOR 1 SM471_MD040
4 AM03-005621A CABLE ASSY-R4_MOTOR 1 SM471_MD040-1
5 AM03-005622B CABLE ASSY-R5_MOTOR 1 AM03-005622A SM471_MD040-2
Page
+$1:+$
186
SM471
PLUS
FR Motor IF Board (3/3)
1
SM471_FL002 #3,4
1
SM471_FL002 #5,6
1
SM471_FL002 #9
2
SM471_FL001 #9,10
