Page +$1:+$ 27 SM471 PLUS Entry Shuttle Conveyor (1/3) NO. P ART NO. P ART NAME Q'TY Old N o. Reference 1 EP08 -003194A MOTOR,STEP-CONV SH UTTLE MOTOR+PULLEY 1 EP08-0002 04(Old No.: J71531 009A) + J71531 190A 3 MC05…
Page
+$1:+$
26
SM471
PLUS
Entry Shuttle Conveyor (1/3)
Front side
Front side
Rear side
Rear side
4
9
6
14
13
12
11
10
3
1
8
7
6
5
Page
+$1:+$
27
SM471
PLUS
Entry Shuttle Conveyor (1/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 EP08-003194A MOTOR,STEP-CONV SHUTTLE MOTOR+PULLEY 1 EP08-000204(Old No.: J71531009A)
+ J71531190A
3 MC05-000151 TIMING BELT 1
4 J70531402A SHUTTLE_HOME_SENSOR_BKT 1
5 EP19-900109 PHOTO SENSOR 1
6 MC13-900069 LM_GUIDE 2 J2101818
7 FC05-000084A BASE-PULLEY 1
8 MC03-900081 BEARING 2
9 J70531570A SHUTTLE_BELT_TENSION_BKT 1
10 J71531190A PULLEY 1
11 J70531392A SHUTTLE_PULLEY_SHAFT 1
12 FC18-903151 SPACER 1
13 MC03-900081 BEARING 2
14 FC09-000764A BRACKET-PULLEY_FIX 1
Page
+$1:+$
28
SM471
PLUS

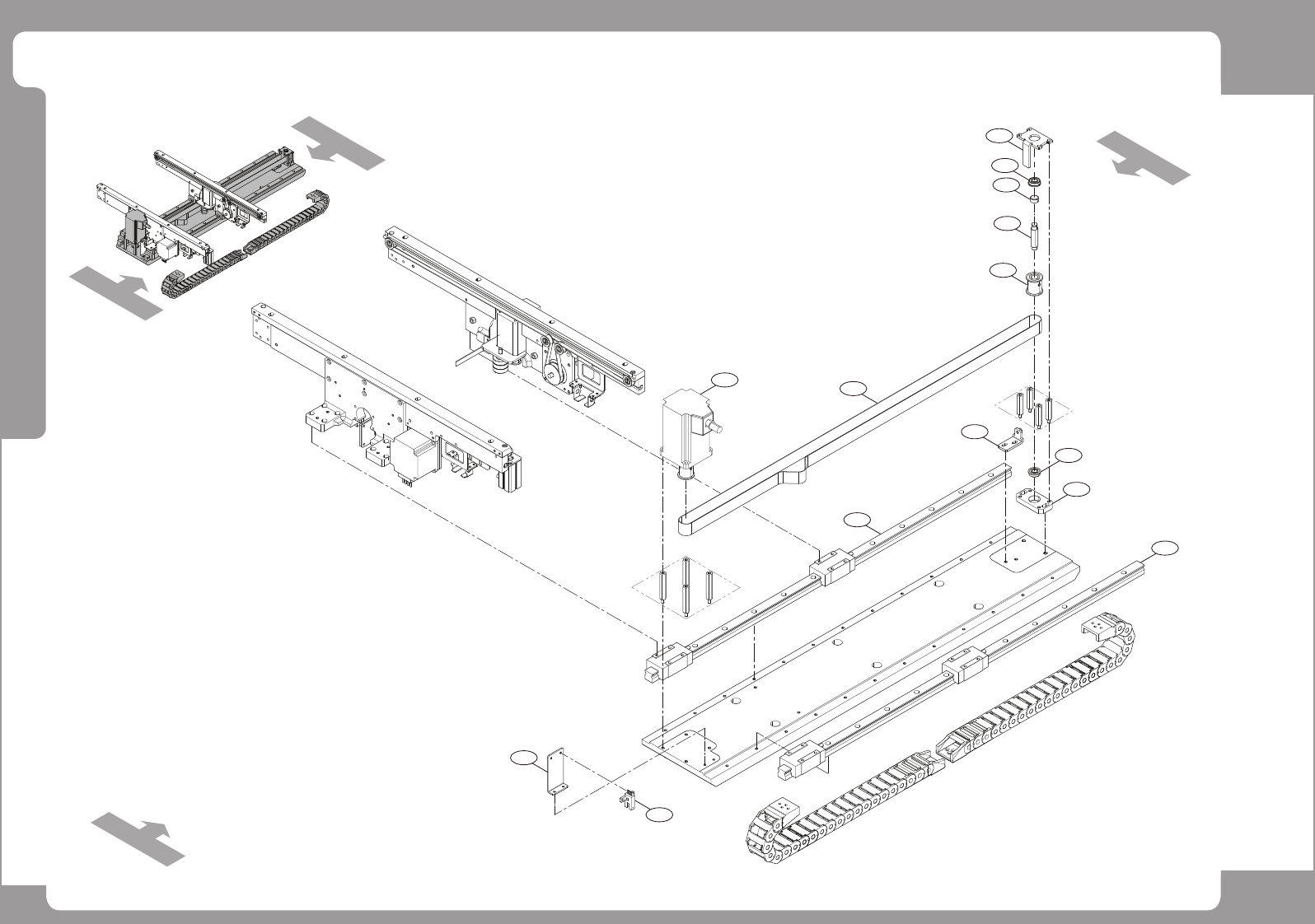

Entry Shuttle Conveyor (2/3)
Front side
Rear side
Rear side
Front side
20
21
22
15
16
2
1
17
18
19
5
23
3
4
6
8
9
10
7
11
12
13
14
6
