Page
+$1:+$
28
SM471
PLUS

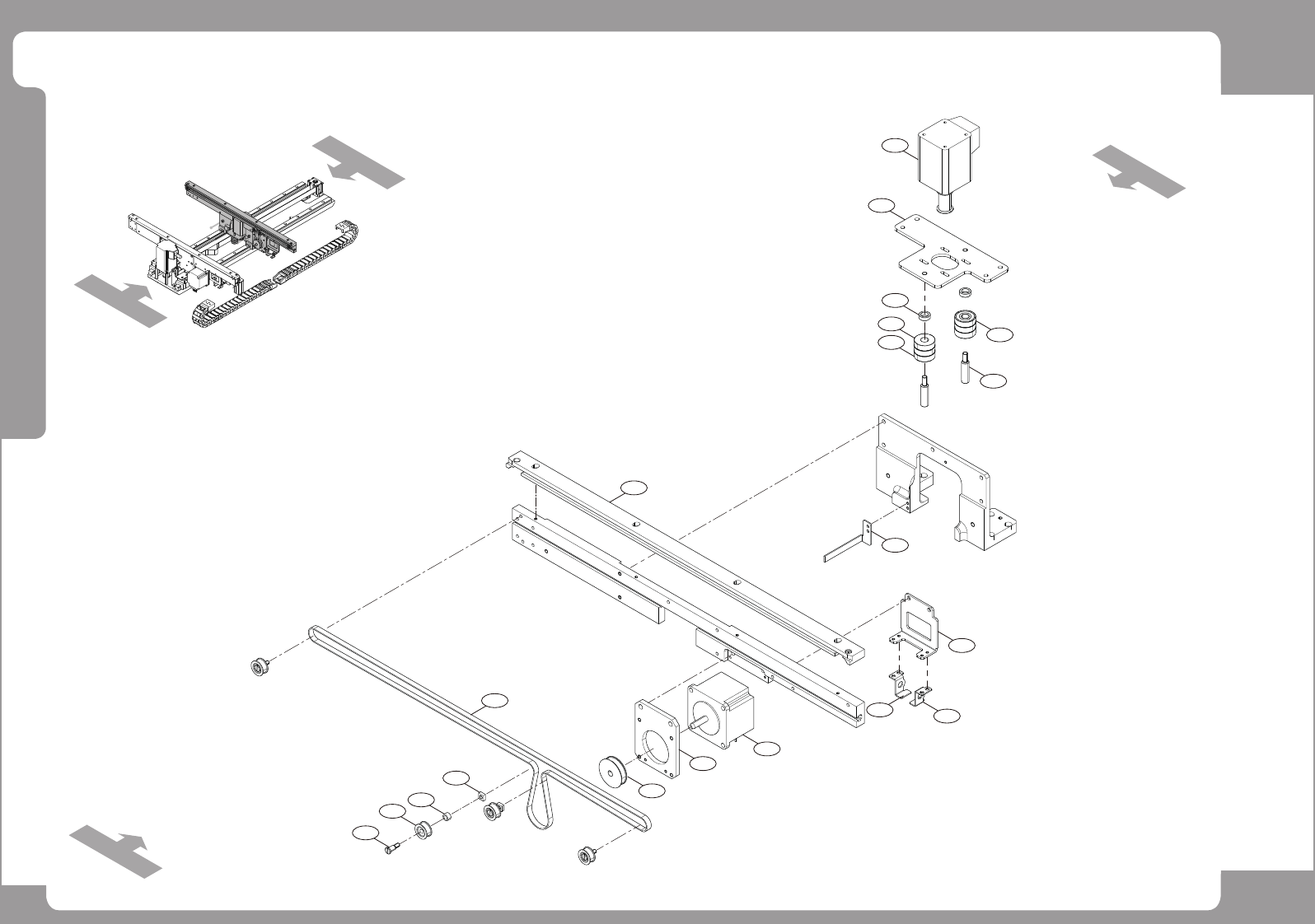

Entry Shuttle Conveyor (2/3)
Front side
Rear side
Rear side
Front side
20
21
22
15
16
2
1
17
18
19
5
23
3
4
6
8
9
10
7
11
12
13
14
6
Page
+$1:+$
29
SM471
PLUS
Entry Shuttle Conveyor (2/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 FC07-001630A BLOCK-BLOCK_SHUTTLE 1
2 FC09-003302A BRACKET-BELT_FIX 1
3 FC30-001630A PLATE-BELT_FIX 1
4 EP19-900108 PHOTO SENSOR 2
5 J71531018A ENTRY_PCB_GUIDE_1650 2
6 FC09-007126A BRACKET-CONV_ST_SENSOR_BKT2;SPCC 2
7 AM03-021739A CABLE ASSY-PCB SENSOR 1
8 AM03-021962A CABLE ASSY-BELT MOTOR(BW2-1) 1
9 J70531038A MOTOR_BRACKET 2
10 MC19-001136A PULLEY-WORK_W_BELT 4
11 J70531505A 180RINK_MOVING_SIDE_BKT1 2
12 J70531506A 180RINK_MOVING_SIDE_BKT2 2
13 J70531072C CNT_PANEL_FRONT 2
14 AM03-021742A CABLE ASSY-PCB SENSOR 1
15 FC09-004598A BRACKET-SHUTTLE_STP;STS304_CP 1
16 HP03-001008 CYLINDER-STOPPER 1
17 HP06-900010 ELBOW FITTING 1
18 HP06-900263 HOSE NIPPLE 1
19 MC05-900059 BELT_SHUTTLE_1650 2
20 J7053184A SQUARE NUT M4 10
21 J70531039A IDLER_SPACER_45 8
22 J72531001A IDLER_2 J72531001A 4
23 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4
24 J70531032A ST_SENSOR_BRACKET_2 1
25 J70531033A ST_SENSOR_BRACKET_1 1
26 J70531036A NUT_HOUSING 1
27 J70531037B MOTOR-BRACKET-SHUTTLE 1
28 J70531038A MOTOR_BRACKET 2
29 J70531039A IDLER_SPACER 6
30 FC09-004598A BRACKET_SHUTTLE_STP 1
31 J70531044A WD_NUT_BEARING_STOPPER 1
