Page
+$1:+$
30
SM471
PLUS

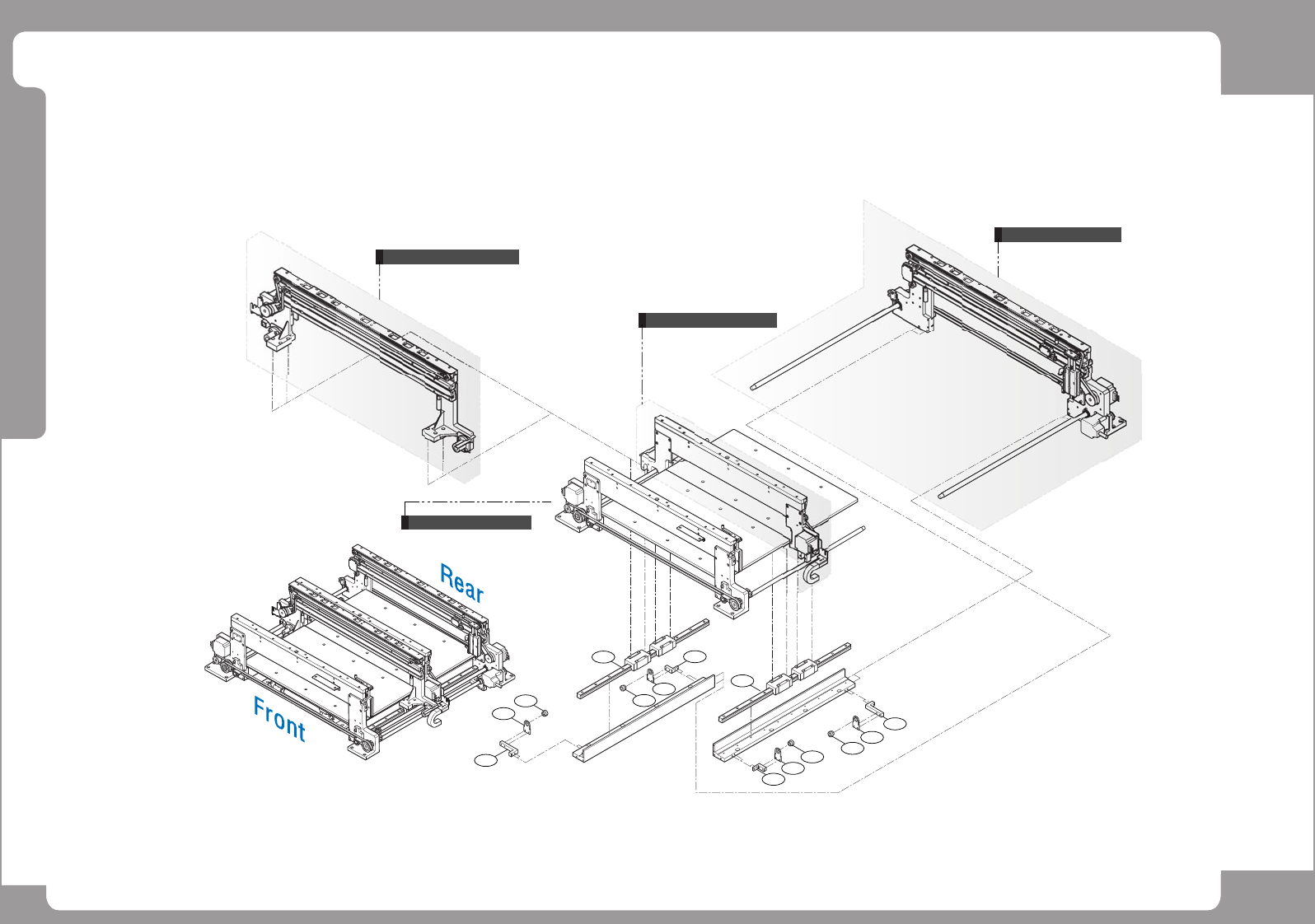

Entry Shuttle Conveyor (3/3)
Front side
Rear side
Front side
Rear side
17
18
19
20
3
4
4
1
2
16
8
13
14
15
5
6
9
10
12
11
Page
+$1:+$
31
SM471
PLUS
Entry Shuttle Conveyor (3/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 EP08-003135A MOTOR,STEP-CONV WIDTH MOTOR+PULLEY[SM] 1 EP08-000203 + MC19-000674A
2 FC09-003304A BRACKET-WIDTH_MOTOR 1
3 J70531495A WASHER 2
4 FC29-004013A GUIDE-BEARING 2
5 MC03-900084 BEARING 4
6 J70531404A MOVING_IDLER_SHAFT 2
8 J71531018A ENTRY_PCB_GUIDE_1650 2
9 FC29-002509B DOG-WIDTH_HOME;STS304_CP 1
10 J70531072C CNT_PANEL_FRONT 2
11 J70531505A 180RINK_MOVING_SIDE_BKT1 J70531505A 2
12 J70531506A 180RINK_MOVING_SIDE_BKT2 J70531506A 2
13 J90831207B BELT_MOTOR_BS1-1_CABLE_ASSY 1
14 J70531038A MOTOR_BRACKET 2
15 MC19-001136A PULLEY-WORK_W_BELT,MIGRATION 4
16 MC05-900059 BELT_SHUTTLE 2
17 J7053184A SQUARE NUT 10
18 J70531039A IDLER_SPACER_45 8
19 J72531001A IDLER_2 20
20 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4
