Work zone Conveyor (3/4)
NO. PART NO. PART NAME Q'TY Old No. Reference
32 J7053047A IDLER SPACER-S 4
33 AM03-020159A CABLE ASSY-PCB SENSOR 1
34 J70531028A TENSION_BEARING_PIN 4
35 FC09-004587A BRACKET-TENSION_CONV 4
36 MC05-900058 TIMMING_BELT_WIDTH 2
37 J71531008A PULLEY_W_MOTOR 2
38 J71531024A WIDTH_PULLEY 2
39 FC29-002509B DOG-WIDTH_HOME;STS304_CP 1
40 MC05-900057 BELT_WORK 4
41 J90831209B BELT_MOTOR_BW1-1_CABLE_ASSY 1
42 EP03-000170 CABLEVEYOR 2
43 FC18-901355 C-RING DIA11(HOLE) 8
44 FC29-006463A SUPPORT-CV_M_RAIL-2 2
45 EP08-000203 MOTOR,STEP 2
Page
+$1:+$
41
SM471
PLUS
Page
+$1:+$
42
SM471
PLUS

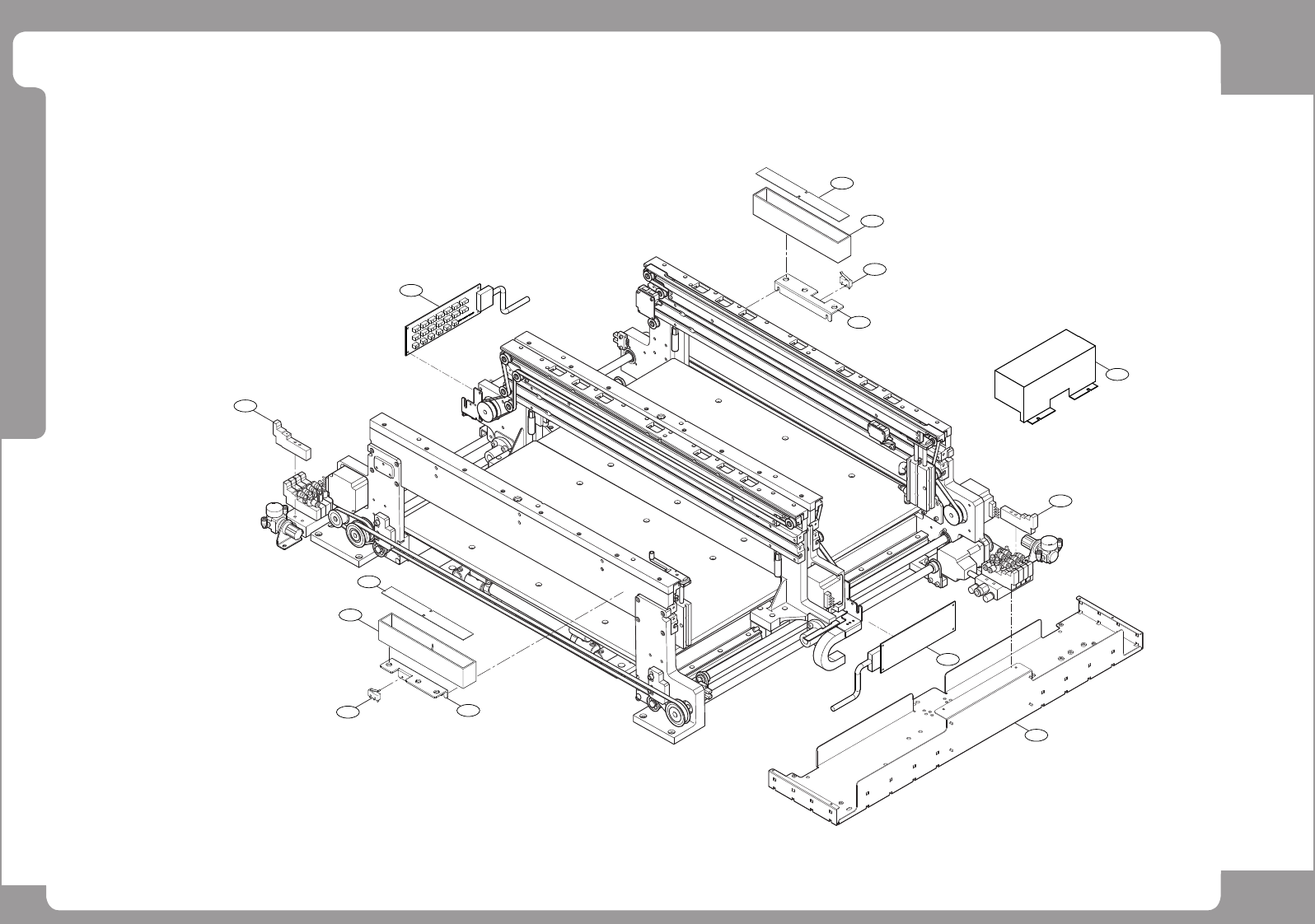

Work zone Conveyor (4/4)
5
4
1
3
5
6
8
2
2
7
4
7
1
3
