Page +$1:+$ 44 SM471 PLUS Exit Shuttle Conveyor (1/3) 10 11 1 2 4 6 12 14 15 3 5 7 8 16 13 9 F ront side Rear side
Page
+$1:+$
43
SM471
PLUS
Work zone Conveyor (4/4)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 J72531005C DUMP_BOX 2
2 FC09-004095B BRACKET-DUMP_BOX_SUPPORT_2;2.0 2
3 J63091001A LOW_ELASTIC_RUBBER_SHEET UNSET 1 2
4 HP14-900033 SOLENOID VALVE 1
5 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 2
HP13-900081 AIR TUBE (POLYURETHANE) 3
HP13-900087 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 3
HP13-900088 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW 3
6 FC30-001289A PLATE-LEFT_2;SPCC 2
7 AM03-013061A DUMPBOX_FLOATDETECT_SENSOR 2
8 J70531105A TOP_COVER_CV J70531105A 2
Page
+$1:+$
44
SM471
PLUS

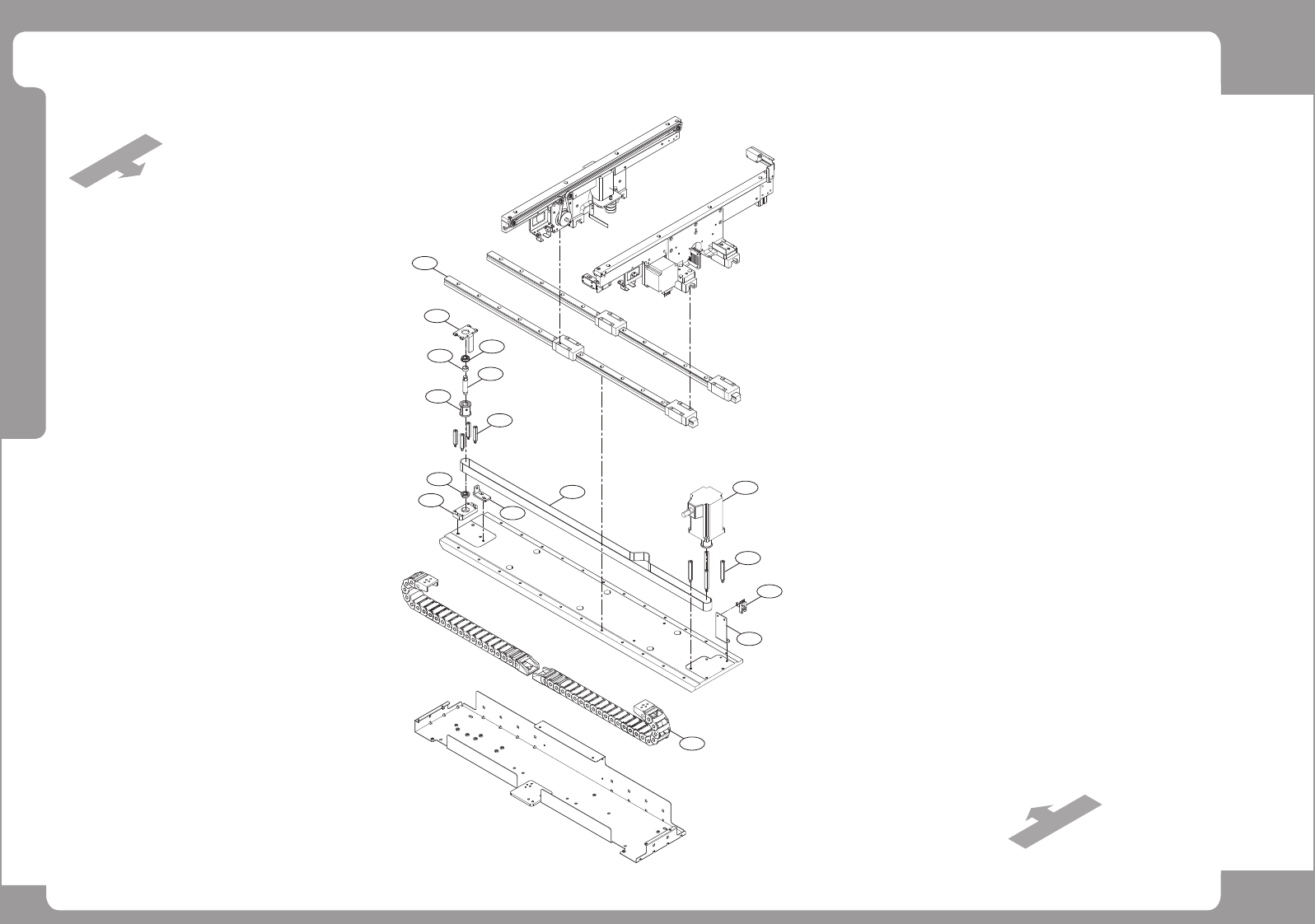

Exit Shuttle Conveyor (1/3)
10
11
1
2
4
6
12
14
15
3
5
7
8
16
13
9
Front side
Rear side
Page
+$1:+$
45
SM471
PLUS
Exit Shuttle Conveyor (1/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 MC13-900069 LM_GUIDE_SHUTTLE 2
2 FC09-000764A BRACKET-PULLEY_FIX 1
3 MC03-900081 BEARING 2
4 FC18-903151 SPACER 1
5 J70531392A SHUTTLE_PULLEY_SHAFT 1
6 J71531190A PULLEY 1
7 FC29-004257A SUPPORT-BAR 4
8 MC05-000151 TIMING BELT 1
9 J70531570A SHUTTLE_BELT_TENSION_BKT 1
10 MC03-900081 BEARING 2
11 FC05-000084A BASE-PULLEY 1
12 EP08-003194A MOTOR,STEP-CONV SHUTTLE MOTOR+PULLEY 1 EP08-000204 + J71531190A
13 EP03-000034 CABLEVEYOR 2
14 FC29-000612B SUPPORT-HEX 4
15 EP19-900109 PHOTO SENSOR 1
16 J70531402A SHUTTLE_HOME_SENSOR_BKT 1
