Page +$1:+$ 48 SM471 PLUS Exit Shuttle Conveyor (3/3) Rear side F ront side F ront side Rear side 21 4 15 16 10 5 6 7 2 12 20 21 9 3 1 14 11 13 17 18 19 8
Page
+$1:+$
47
SM471
PLUS
Exit Shuttle Conveyor (2/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 EP08-003135A MOTOR,STEP-CONV WIDTH MOTOR+PULLEY[SM] 1 EP08-000203 + MC19-000674A
2 FC09-003304A BRACKET-WIDTH_MOTOR 1
3 J70531495A WASHER 2
4 FC29-004013A GUIDE-BEARING 2
5 MC03-900084 BEARING 4
6 J70531404A MOVING_IDLER_SHAFT 2
8 J71531018A ENTRY_PCB_GUIDE_1650 2
9 J70531072C CNT_PANEL_FRONT 2
10 J70531505A 180RINK_MOVING_SIDE_BKT1 2
11 J70531506A 180RINK_MOVING_SIDE_BKT2 2
12 J90831207B BELT_MOTOR_BS1-1_CABLE_ASSY 1
13 J70531038A MOTOR_BRACKET 2
14 MC19-001136A PULLEY-WORK_W 4
15 FC29-002509B DOG-WIDTH_HOME 1
16 MC05-900059 BELT_SHUTTLE_1650 2
17 MC19-001112A SHAFT-S_IDLER_CONV 4
18 J72531001A IDLER_2 20
19 J70531039A IDLER_SPACER_45 8
Page
+$1:+$
48
SM471
PLUS

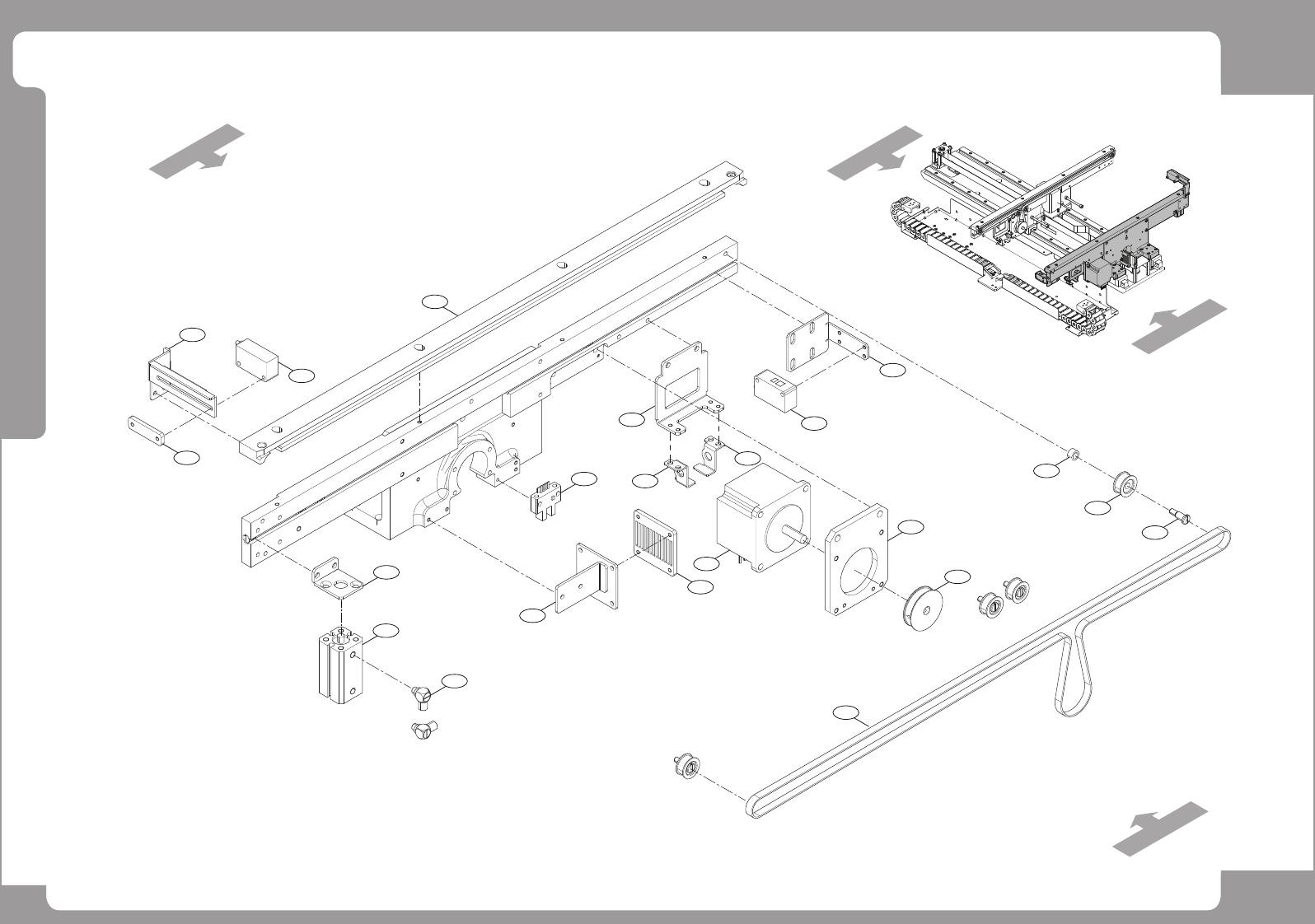

Exit Shuttle Conveyor (3/3)
Rear side
Front side
Front side
Rear side
21
4
15
16
10
5
6
7
2
12
20
21
9
3
1
14
11
13
17
18
19
8
Page
+$1:+$
49
SM471
PLUS
Exit Shuttle Conveyor (3/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 AM03-020159A CABLE ASSY-PCB SENSOR 1
2 J70531076B BRACKET_BD_OUT_SENSOR 1
3 J70531607A #N/A #N/A
4 J71531018A ENTRY_PCB_GUIDE_1650 2
5 FC09-004598A BRACKET-SHUTTLE_STP 1
6 HP03-001008 CYLINDER-STOPPER 1
7 HP06-900010 ELBOW FITTING 1
8 FC09-003302A BRACKET-BELT_FIX 1
9 FC30-001630A PLATE-BELT_FIX 1
10 EP19-900108 PHOTO SENSOR 2
11 J70531505A 180RINK_MOVING_SIDE_BKT1 2
12 J70531506A 180RINK_MOVING_SIDE_BKT2 2
13 J70531072C CNT_PANEL_FRONT 2
14 J90831208B BELT_MOTOR_BS1-2_CABLE_ASSY 1
15 J70531038A MOTOR_BRACKET 2
16 MC19-001136A PULLEY-WORK_W_BELT 4
17 MC19-001112A SHAFT-S_IDLER_CONV 4
18 J72531001A IDLER_2 20
19 J70531039A IDLER_SPACER_45 8
20 AM03-020159A CABLE ASSY-PCB SENSOR 1 SM411-CS001 [SS1-2]
21 MC05-900059 BELT_SHUTTLE_1650 2
