Page +$1:+$ 50 SM471 PLUS Backup Table Ass’y 8 7 17 15 24 2 22 22 23 26 24 6 6 22 1 16 31 24 26 26 22 24 30 3 4 5 8 26 9 11 33 11 12 14 15 14 18 18 26 19 26 32 32 19 19 20 21 12 33 23 26 15 25 15 10 15 25 15 26
Page
+$1:+$
49
SM471
PLUS
Exit Shuttle Conveyor (3/3)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 AM03-020159A CABLE ASSY-PCB SENSOR 1
2 J70531076B BRACKET_BD_OUT_SENSOR 1
3 J70531607A #N/A #N/A
4 J71531018A ENTRY_PCB_GUIDE_1650 2
5 FC09-004598A BRACKET-SHUTTLE_STP 1
6 HP03-001008 CYLINDER-STOPPER 1
7 HP06-900010 ELBOW FITTING 1
8 FC09-003302A BRACKET-BELT_FIX 1
9 FC30-001630A PLATE-BELT_FIX 1
10 EP19-900108 PHOTO SENSOR 2
11 J70531505A 180RINK_MOVING_SIDE_BKT1 2
12 J70531506A 180RINK_MOVING_SIDE_BKT2 2
13 J70531072C CNT_PANEL_FRONT 2
14 J90831208B BELT_MOTOR_BS1-2_CABLE_ASSY 1
15 J70531038A MOTOR_BRACKET 2
16 MC19-001136A PULLEY-WORK_W_BELT 4
17 MC19-001112A SHAFT-S_IDLER_CONV 4
18 J72531001A IDLER_2 20
19 J70531039A IDLER_SPACER_45 8
20 AM03-020159A CABLE ASSY-PCB SENSOR 1 SM411-CS001 [SS1-2]
21 MC05-900059 BELT_SHUTTLE_1650 2
Page
+$1:+$
50
SM471
PLUS

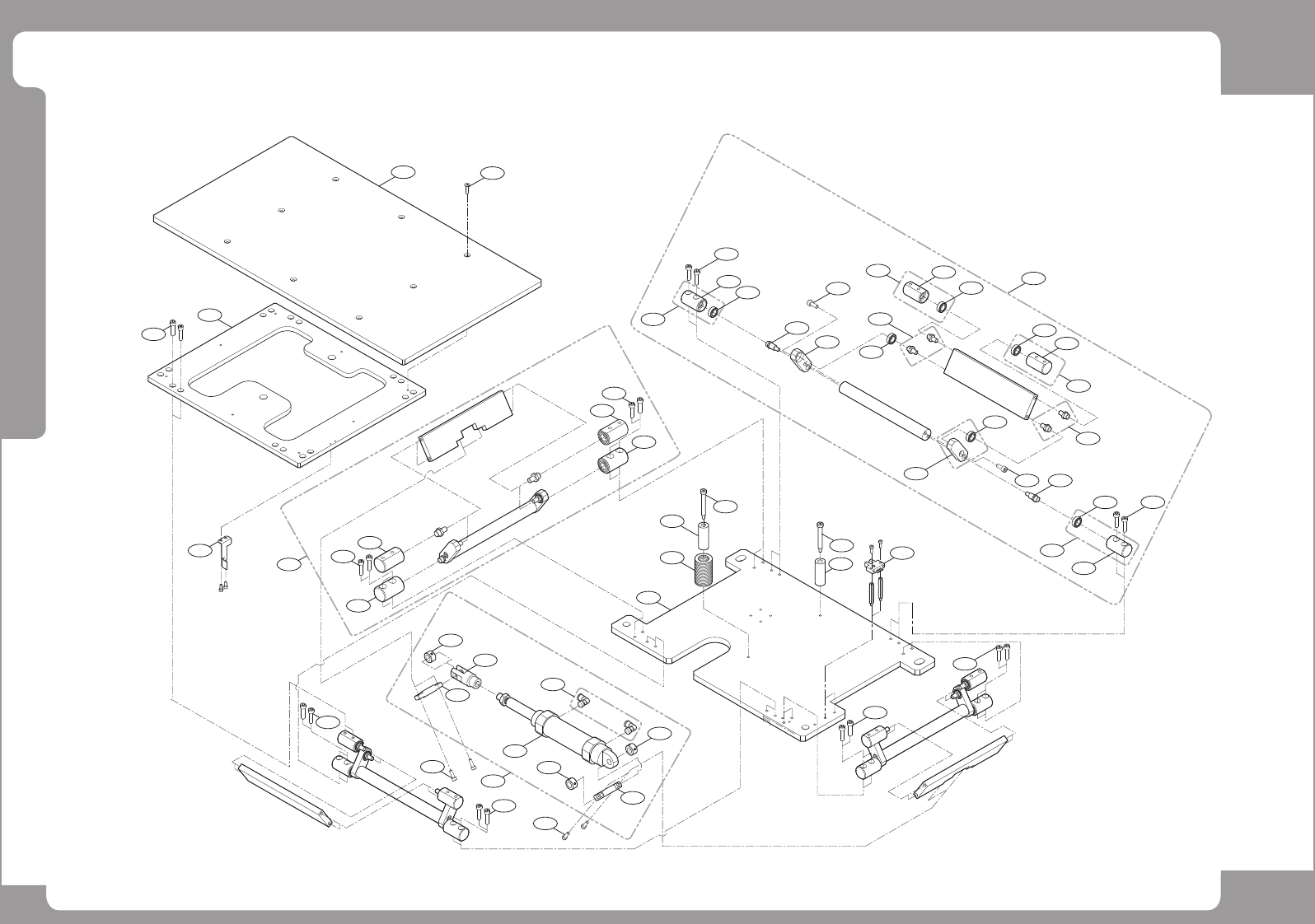

Backup Table Ass’y
8
7
17
15
24
2
22
22
23
26
24
6
6
22
1
16
31
24
26
26
22
24
30
3
4
5
8
26
9
11
33
11
12
14
15
14
18
18
26
19
26
32
32
19
19
20
21
12
33
23
26
15
25
15
10
15
25
15
26
Page
+$1:+$
51
SM471
PLUS
Backup Table Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-004259B DOG-BUT_SENSOR;STS304_CP 1
2 J70531052C LOWER_PLATE 1 J70531052B
3 J70531051C BACK_UP_PLATE 1 J70531051B
4 J70531053C UPPER_PLATE 1 J70531053B
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 SHOULDER SCREW 2
7 FC38-900013 SPRING 1
8 FC29-900536 URETHAN CUSHION 1
9 HP06-900056 ELBOW FITTING 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN 4
12 J7053793A LOWER LINK PIN 2
13 J7053796A LOWER LINK SHAFT 1
14 J70530797B LOWER LINK END 1 J7053797A
15 MC03-900098 BALL_BEARING 1 MC03-900022
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER 3
20 FC14-900506 CYLINDER JOINT 1
21 HP03-900013 CYLINDER 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER 1
26 FC18-902761 SHC [M5 x 20] 16
30 FC18-902835 FHCS [M4 x 15] 8
31 FC18-902761 SHCS [M5 x 20] 16
