Page
+$1:+$
56
SM471
PLUS

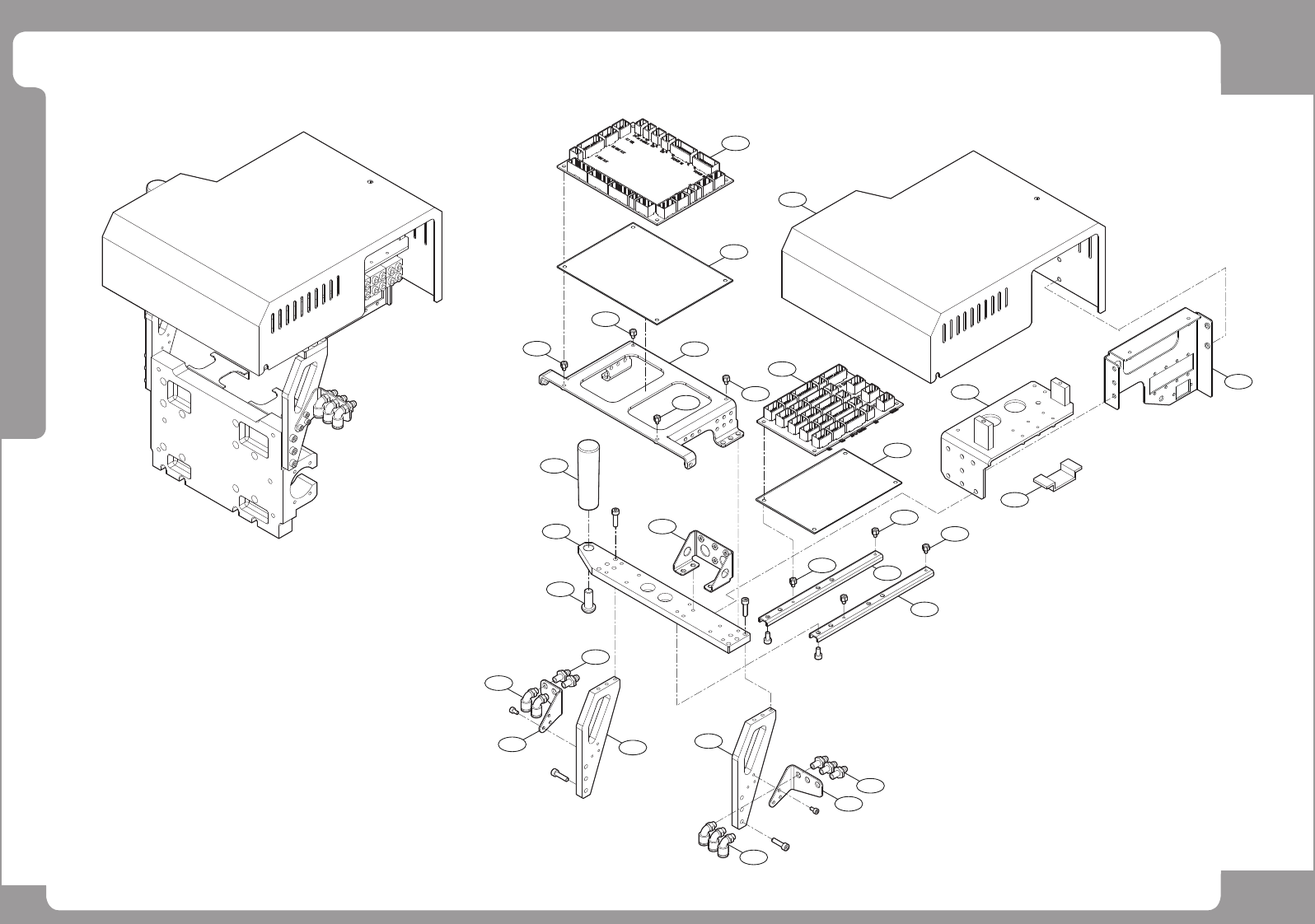

Head Ass’y (1/5)
12
2
18
3
4
19
13
4
4
4
4
11
11
16
13
14
15
7
1
6
5
4
4
8
14
15
9
20
10
17
Page
+$1:+$
57
SM471
PLUS
Head Ass’y (1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-005199A COVER-HEAD TOP COVER UNIV;STD 1
2 AM03-018404B ASSY,BOARD-HEAD_IF_BD_ARM 1
3 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A
4 FC29-900610 HEX SUPPORT 8
5 AM03-005341B ASSY,BOARD-MOTOR IF BOARD VER1.1 1 AM03-005341A
6 FC09-001568A BRACKET-FLAT_CABLE_BKT 1
7 FC09-003535B BRACKET-HEAD_BKT_PANEL 1 FC09-001573A
8 FC29-900148 HANDLE BG-10 1
9 FC09-001575A BRACKET-HARNESS_PLATE 1
10 FC09-001690A BRACKET-HEAD_BKT_FIX 1
11 FC09-001576B MOTOR_IF_BOARD_BKT 2 FC09-001576A
12 AM03-022591A ASSY,HEAD-FITTING_SUB 1
13 FC28-900369 GREASE NIPPLE 5
14 HP06-900079 ELBOW_UNION_FEMALE 5
15 J71541016B HARNESS_SUPPORT 2
16 FC09-004659 BRACKET-3-NIPPLE 1
17 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A
18 FC30-000990A PLATE-IO_BOARD_SHEET 1
19 FC30-000991A PLATE-MOTOR_IF_BOARD_SHEET 1
20 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1
Page
+$1:+$
58
SM471
PLUS

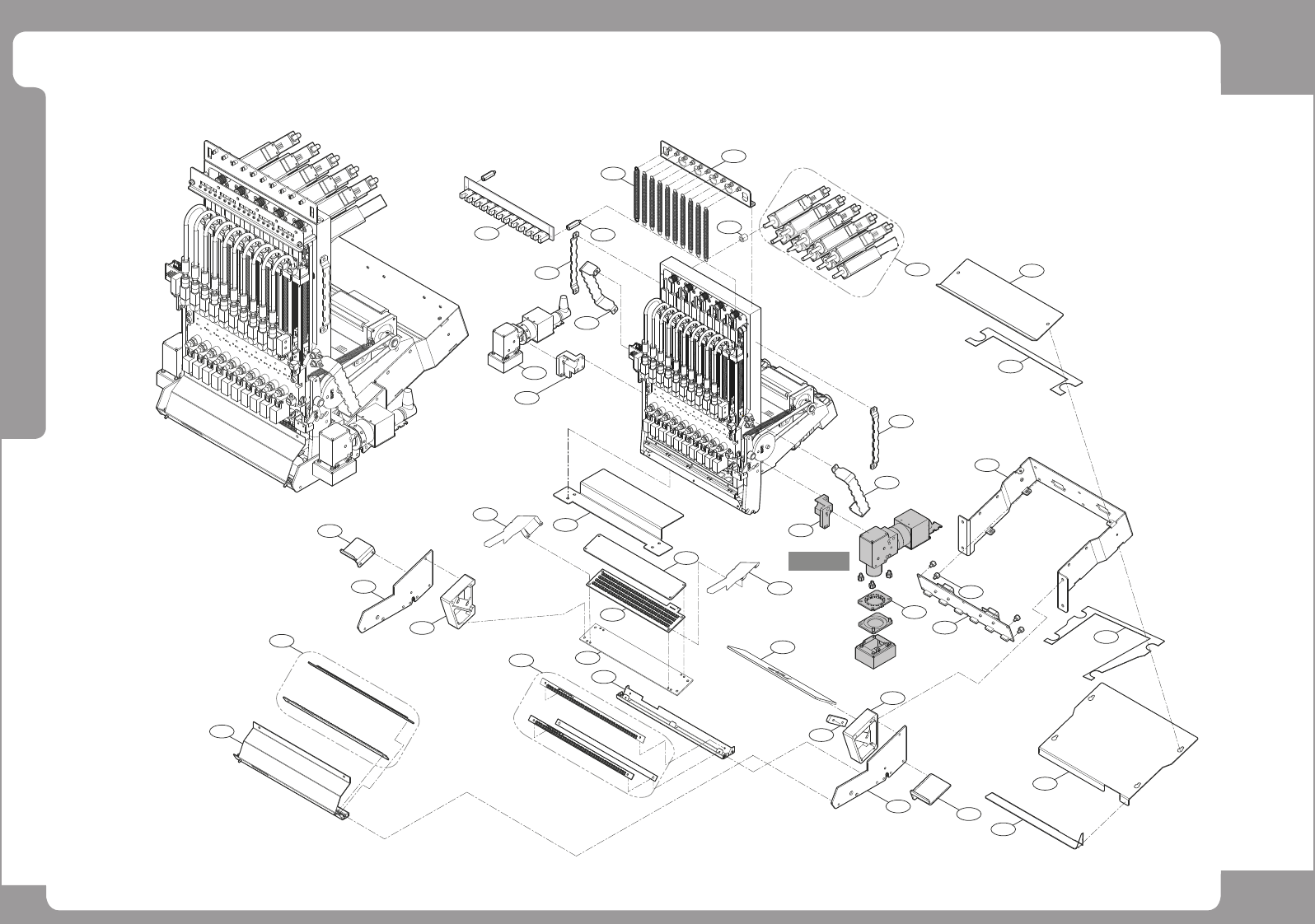

Head Ass’y (2/5)
