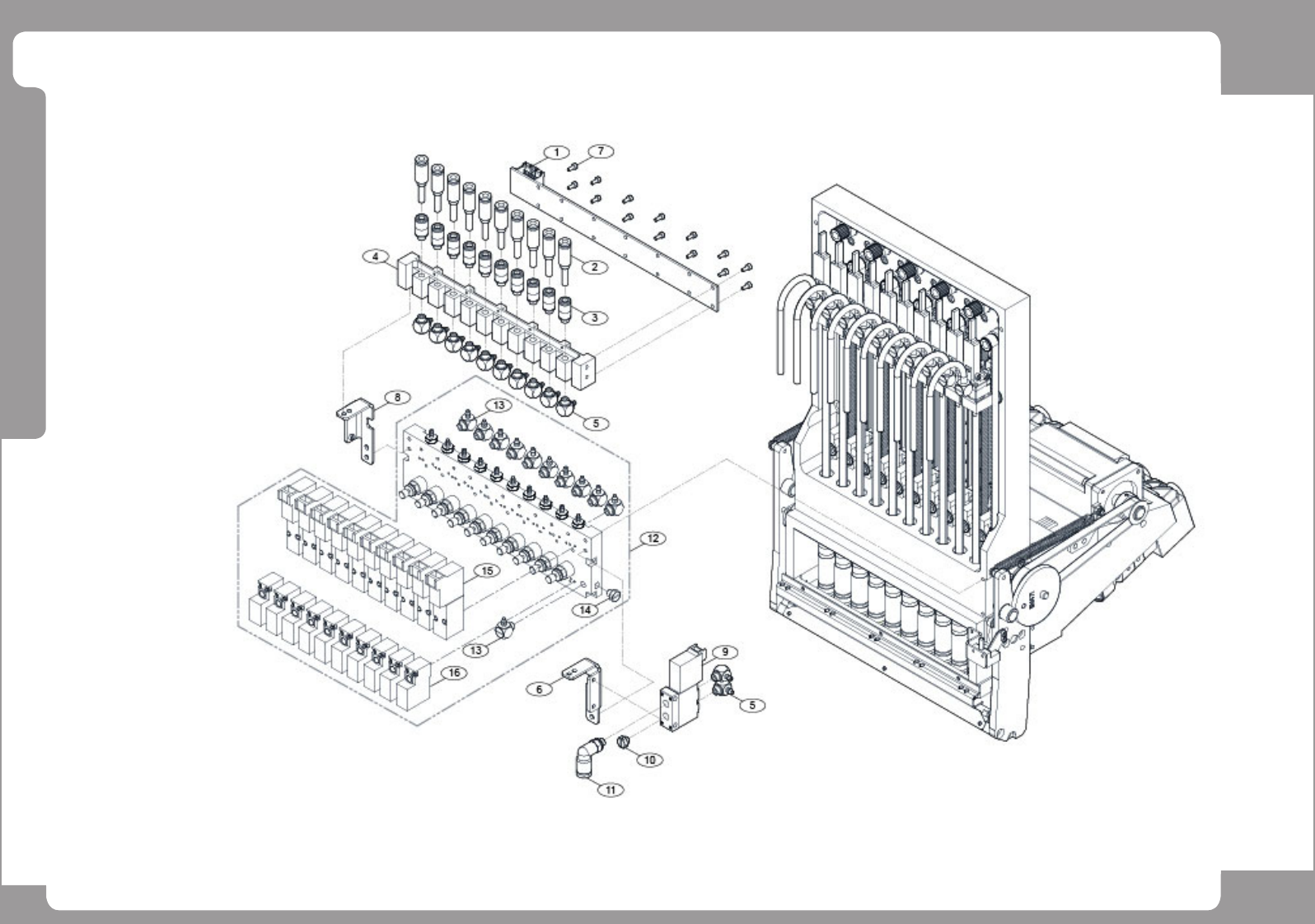

Head Ass’y (2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 AM08-004291A ASSY-FID7_LENS_ASSY 1 STANDARD
AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 1 BLUE FILTER OPTION
31 AM03-005925A ASSY,HEAD-FLY_OUTER_ASSY 1
32 FC30-000976A PLATE-FID_CAM1_COVER 1
33 FC30-000971A COVER-COVER CHAIN Y 1
34 FC09-001515A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_A 1
35 FC09-004160A BRACKET-FID_BRACKET_2 1 FC09-001554A
36 FC30-000975A PLATE-FID_CAM2_COVER 1
37 EP12-001025F MIRROR,OPTICS-COAXIAL_MIRROR_LEFT-F 1
38 EP12-001026F MIRROR,OPTICS-COAXIAL_MIRROR_RIGHT-F 1
