Page +$1:+$ 64 SM471 PLUS Head Ass’y (4/5) 26 5 4 21 8 9 7 26 36 36 37 10 17 11 12 12 13 26 27 28 25 8 38 2 30 31 20 34 18 17 19 45 16 16 32 33 6 35 22 15 31 20 3 29 13 12 15 14 3 27 26 38 12 11 10 23 24 1
Page
+$1:+$
63
SM471
PLUS
Head Ass’y (3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005340A ASSY,BOARD-SM471 VACUUM SENSOR BD VER1.0 1
2 HP04-900036 SUCTION_FILTER 10
3 HP06-000074 FITTING-STRAIGHT 10
4 HP09-000328A MANIFOLD-P_SENSOR_BLOCK 1
5 HP06-900059 BOB ELBOW FITTING 12
6 FC09-001523A BRACKET-MANIFOLD_PLATE_2 1
7 FC18-902704 SOCKET HEAD CAP SCREW [M2*5 (BL/ZN)] 14
8 FC09-001522A BRACKET-MANIFOLD_PLATE_1 1
9 HP14-000344 VALVE-OVER_BLOW_VALVE 1
10 FC14-900638 PLUG FITTING 1
11 HP06-900194 ELBOW_FITTING 1
12 HP09-000129 MANIFOLD-HEAD_AIR_MODULE 1
13 HP06-900021 BOB FITTING 11
14 FC14-900638 DUMY PLUG 1
15 HP14-000173 VALVE,SOLENOID-SOLENOID_VALVE 10
16 HP14-000206 VALVE-BLOW_VALVE 10
Page
+$1:+$
64
SM471
PLUS

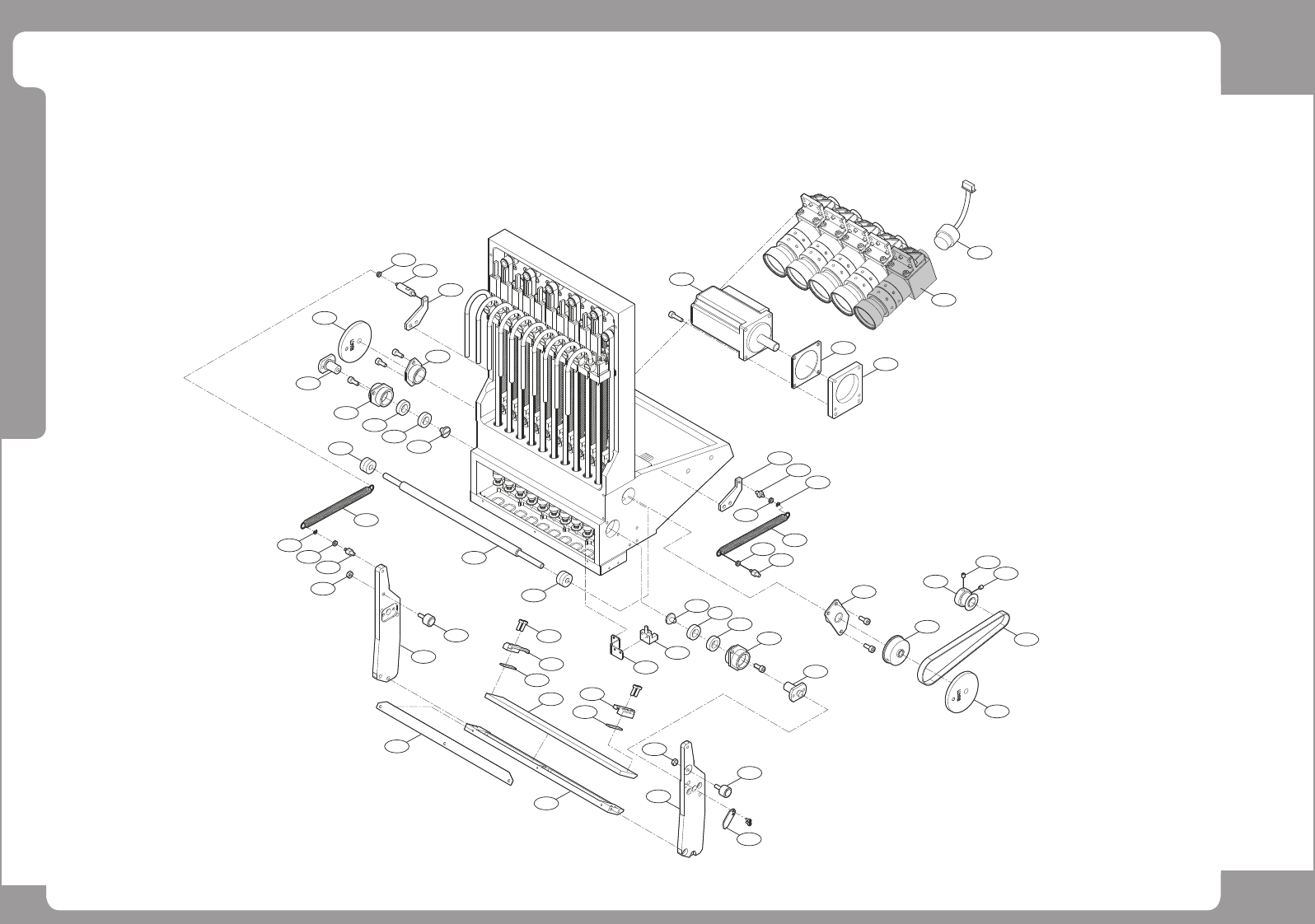

Head Ass’y (4/5)
26
5
4
21
8
9
7
26
36
36
37
10
17
11
12
12
13
26
27
28
25
8
38
2
30
31
20
34
18
17
19
45
16
16
32
33
6
35
22
15
31
20
3
29
13
12
15
14
3
27
26
38
12
11
10
23
24
1
Page
+$1:+$
65
SM471
PLUS
Head Ass’y (4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-020421A ASSY,OPTICS-FLYING_CAMERA_ONE KIT 5
2 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 5 AM03-005553A
3 FC18-901044 HEX NUT [M3 (BL/ZN) ] 2
4 FC30-000805A PLATE-MIRROR_MOTOR_BKT 1
5 J7255081A MIRROR MOTOR ISOLATOR 1
6 AM03-015237A CABLE ASSY-SWING MOTOR_AS 1
7 FC09-001553B BRACKET-MIRROR_PIN_3 1 FC09-001553A
8 J7055560A MIRROR SPRING BRACKET 1
9 J7055205A MIRROR JOINT-LEFT 1
10 J7055204A ARM JOINT 2
11 J7055205A MIRROR JOINT-LEFT 1
12 MC03-900034 BALL BEARING 4
13 FC18-001484A MIRROR SCREW 2 J7055153A
14 MC19-000345A HEAD,SPINDLE-MIRROR_SHAFT 1
15 MC03-900033 BALL BEARING 4
16 FC38-900011 SPRING 2
17 MC11-900055 CAM FOLLOWER 2
18 FC30-000804A PLATE-MIRROR_LINK_2 1
19 FC09-001519A BRACKET-MIRROR_CLAMP_2 1
20 FC09-001521A BRACKET-MIRROR_CUSHION 1
21 EP12-000030A MIRROR,OPTICS-FOLDING_MIRR 1
22 FC09-001518A BRACKET-MIRROR_CLAMP_1 1
23 FC15-001001A COVER-MIRROR_COVER 1
24 FC09-001517A BRACKET-MIRROR_PLATE 1
25 J7055559A MIRROR PIN 2 2
26 J7455026A SPRING BUSH 2
27 FC29-004275A SPRING_POST-MOVING 2 J70551042A
28 J71551026A PULLEY-S_AXIS1 1
29 J7155523A PULLEY (S-AXIS 2) 1
30 MC05-900048 TIMING BELT 1
31 MC11-000434A CAM-SM411PLUS_CAM 2
