Page +$1:+$ 69 SM471 PLUS Head Ass’y (5/5) NO. PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-008031A CABLE ASSY -R1_MOT OR_MD038 5 2 FC09-001493A BRACKET -Z_SENSOR_DOG 1 3 FC29 -004278A PIN…
Page
+$1:+$
68
SM471
PLUS

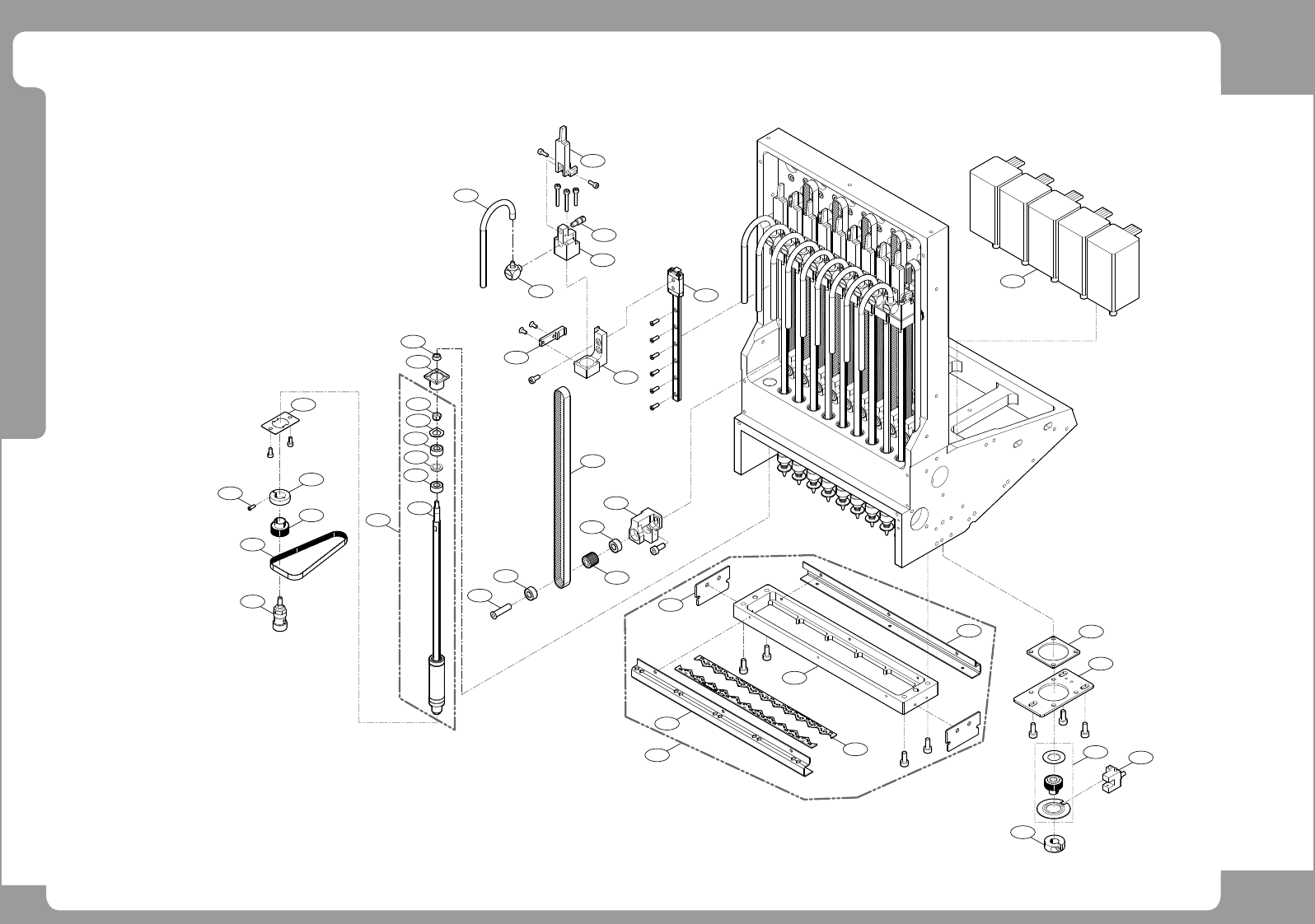

Head Ass’y (5/5)
5
34
1
8
9
43
42
45
15
2
3
4
6
7
18
33
19
16
17
17
26
29
27
28
20
24
25
31
30
44
10
42
11
12
13
14
22
21
23
23
32
Page
+$1:+$
69
SM471
PLUS
Head Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-008031A CABLE ASSY-R1_MOTOR_MD038 5
2 FC09-001493A BRACKET-Z_SENSOR_DOG 1
3 FC29-004278A PIN 1 J7155541A
4 FC09-001491A Z_CAP 1
5 HP06-900059 BOB ELBOW FITTING 1
6 MC13-000268 LM GUIDE 1 MC13-000116
7 FC29-001047C HOUSING-Z_ROD_HOUSING 1 FC29-001047A/ FC29-001047B
8 FC09-001492B BRACKET-Z_BELT_CLAMP 1 FC09-001492A
9 FC09-001504A BRACKET-REF_PLATE 1
10 FC30-000797A PLATE-INSULATION_PLATE 1
11 FC30-000798A PLATE-STEP_MOTOR_PLATE 5 FC30-000927A
12 MC19-000340A PULLEY-R_MOTOR_PULLEY 1
13 AM03-015566A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1 EP19-900134 / AM03-005582
14 MC05-000117 TIMING BELT 1 FC09-001501A Z1.3.5.7.9
15 MC05-000119 TIMING BELT 1 MC05-000117 Z2.4.6.8.10
16 FC09-001502B BRACKET-Z_IDLE_BODY 1 FC09-001502A
17 J6601140 BALL BEARING 2 J66011095A
18 J71551848A Z_IDLER_PULLEY 1 MC19-000341A
19 J70551874A Z_IDLE_SHAFT 1
20 HP07-000094A Y_PACKING 1
21 FC09-001490A BRACKET-LOCK_NUT_Z 1
22 FC18-001724A COVER-OPEN_DOOR_A 1 FC18-000960
23 MC03-900127 BALL BEARING 2
24 FC09-001489A BRACKET-Z_TOP_HOUSING 1
25 MC13-000172 SPLINE,BALL 1 MC13-000124
26 FC30-000927A PLATE-BEARING_P_PLATE 1
27 FC09-001494A BRACKET-S_PULLEY_CLAMP 1
28 FC18-000967 SCREW-T_SPINDLE_SCREW 1
29 MC19-000339A PULLEY-SPINDLE_PULLEY 1
30 MC05-000120 TIMING BELT 1 MC05-900171
31 J90551225A_AS NOZZLE_HOLDER_ASSY 10
Page
+$1:+$
70
SM471
PLUS
Head Ass’y (5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC29-000176 SHIM-SHIM_RING 1
33 AM03-005923A ASSY,HEAD-SIDE_PCB_ASSY 1
34 HP13-000044 TUBE-VACUUM_TUBE 1M Cut this air tube by 100mm then use
42 FC09-001513A BRACKET-FLY_SIDE_BRACKET 2
43 FC09-001514A BRACKET-MIRROR_BRACKET 2
44 AM03-014140A HEAD_BALL_SPLINE_SUB_ASSY 1
45 AM03-006142A ASSY,HEAD-SIDE_ILL_ASSY 1
