Page +$1:+$ 75 SM471 PLUS Air Ass’y (2/6) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC14-900724 PLUG 3 2 HP06-900014 FITTING 5 3 HP14-900026 SOLENOID V AL VE 2 4 HP14-900092 CHECK …

100%1 / 220
Page
+$1:+$
74
SM471
PLUS

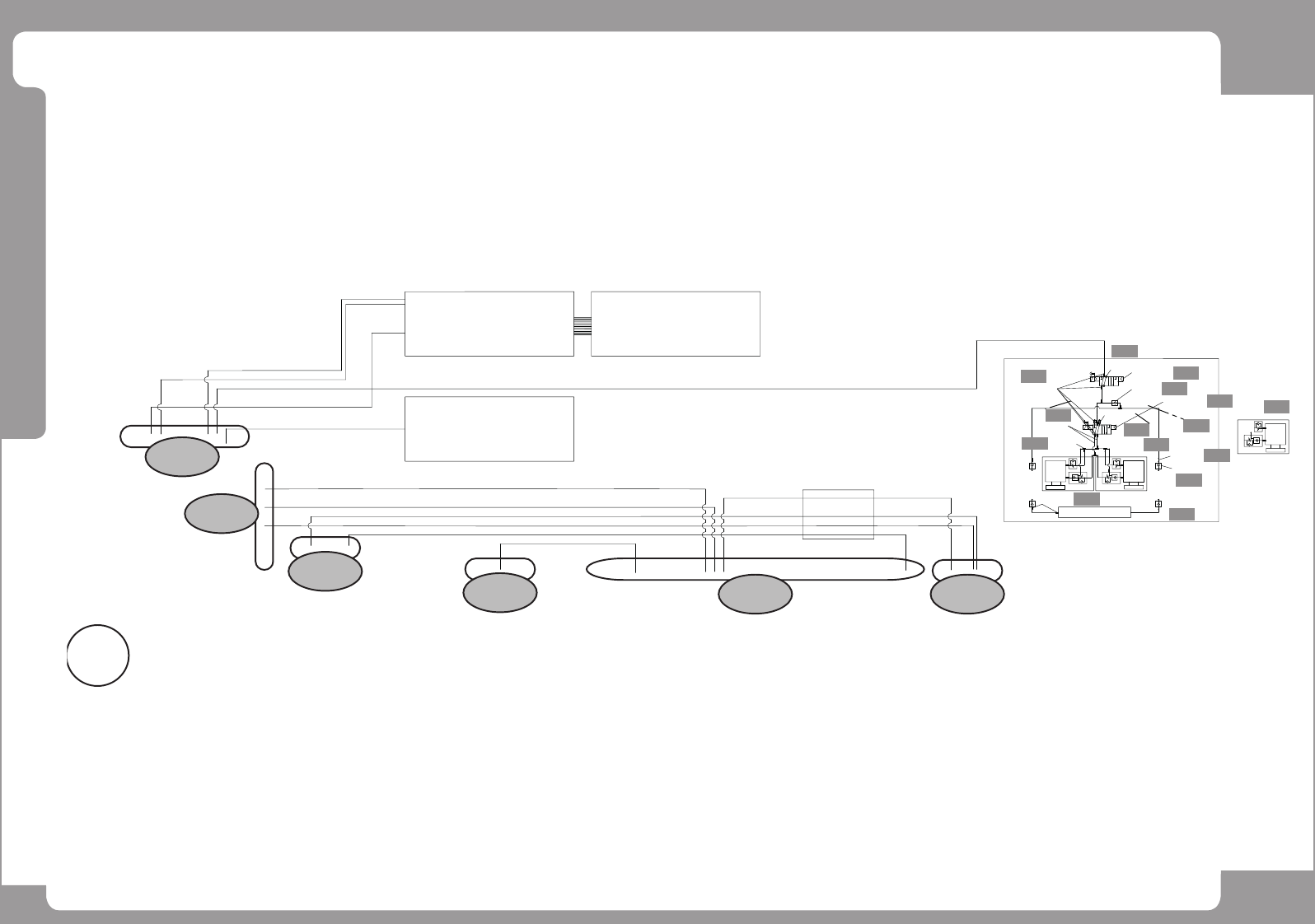

Air Ass’y (2/6)
]
_
^
REAR CONVEYOR ASSY
Rear HEAD Air Module
Y CABLE DUCT ASSY
Feeder Base (DC)
4-HP06-900018
RIGHT
CABLE DUCT ASS'Y
LEFT CABLE DUCT ASS'Y
REAR
DOCKING CART ASS'Y (OPTION)
FRONT도 DC OPTION 일 때, 동일 구조
2-HP03-900011
AIR CYLINDER
HP03-900011
AIR CYLINDER
4-HP06-900027
U2-4-4*2.5
2-HP06-900300
U2-4-4*2.5
U2-4-4*2.5
5-HP06-900014
U2-4-4*2.5
2-HP06-900299
2-HP06-900047
HP14-900026
HP14-900026
HP14-900092
2-HP09-900162
HP06-900018
HP06-900050
3-FC14-900724
PT
U2-4-6*4
U2-4-8*5
U2-4-12*8, BLACK
U2-4-6
*4, BLACK
U2-4-6*4, YELLOW
U2-4-8
*5, BLACK
U2-4-12*10, BLACK
U2-4-4*2.5, BLACK
U2-4-6*4, BLACK
U2-4-6*4,
YELLOW
U2-4-8*5, BLACK
U2-4-10*6.5, BLACK
U2-4-6*4
U2-4-6*4
U2-4-6*4
U2-4-12*8
U2-4-8*5
U2-4-6*4
U2-4-6*4
A-B
A
A-B
A-B
A-B
A-D A-E
X
Y
Z
[
Z
XW
XZ
\
XY
XX
XW
`
Page
+$1:+$
75
SM471
PLUS
Air Ass’y (2/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC14-900724 PLUG 3
2 HP06-900014 FITTING 5
3 HP14-900026 SOLENOID VALVE 2
4 HP14-900092 CHECK VALVE 1
5 HP06-900300 PLUG 2
6 HP06-900050 UNION Y FITTING 1
7 HP06-900018 FITTING 1
8 HP09-900162 SILENCER 2
9 HP06-900018 FITTING 4
10 HP03-900011 AIR CYLINDER 3
11 HP06-900047 ELBOW FITTING 2
12 HP06-900299 COUPLER 2
13 HP06-900027 FITTING 4
Page
+$1:+$
76
SM471
PLUS

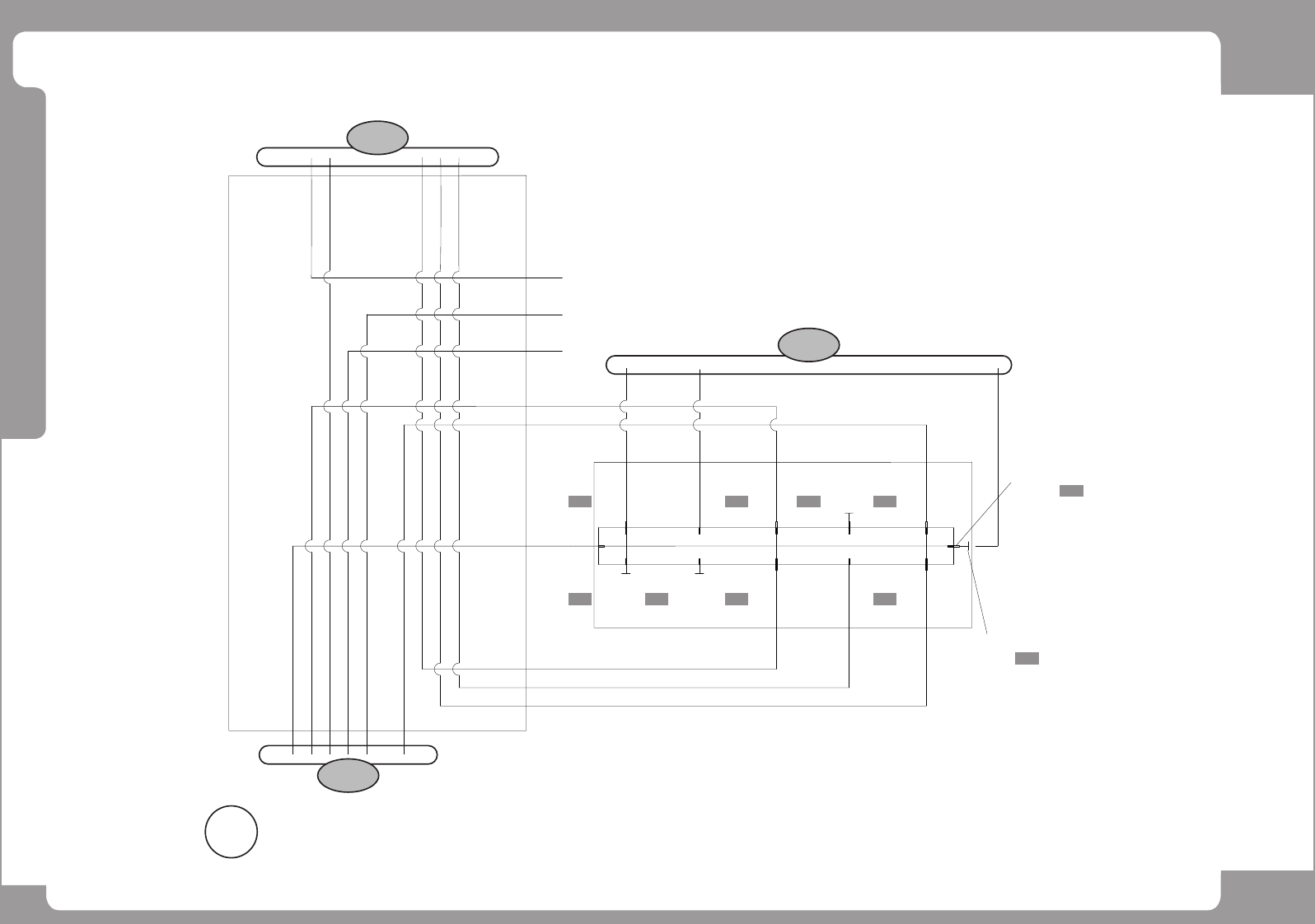

Air Ass’y (3/6)
B
HP09-000007
MAIN MANIFOLD ASS'Y
VACUUM GENERATOR (AIR OPTION)
VACUUM PUMP (AIR OPTION)
HP06-900282
HP06-900282
HP06-900282
FC14-900644
PLUG
HP06-000226
FITTING
U2-4-12*8
FC14-900644
PLUG
HP06-900282
U2-4-6*4
HP06-900282
FC14-900641
PLUG
U2-4-8*5, BLACK
U2-4-6*4, BLACK
U2-4-6*4, BLACK
U2-4-4*2.5, BLACK
U2-4-12*8, BLACK
U2-4-6*4, YELLOW
U2-4-6*4, YELLOW
U2-4-6*4, YELLOW
U2-4-6*4, BLACK
U2-4-12*8, BLACK
U2-4-6*4
U2-4-6*4
U2-4-6*4
U2-4-8*5
FC14-900644
A-B
B-C
A-B
[1] [1] [2] [1]
[3]
[4]
[2] [2] [1] [1]
