Page +$1:+$ 79 SM471 PLUS Air Ass’y (4/6) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 HP09-000150 DIGIT AL GAUGE 1 2 HP06-9000 43 JOINT 1 3 HP06-900255 STRAIGHT FITTING 1 4 TE07-9000…
Page
+$1:+$
78
SM471
PLUS
Air Ass’y (4/6)
C
FRONT AIR PANEL ASS'Y
FRONT
FEEDER BASE ASS'Y (STANDARD)
REAR
도 STANDARD일 때, 동일 구조
Feeder Base
HP06-900043
FITTING
TE07-900096
ANALOG GAUGE (VACUUM)
HP09-001019
REGULATOR
U2-4-4*2.5
HP06-900050
U2-4-4*2.5
2-HP06-900027
U2-4-6*4
U2-4-12*8
U2-4-4*2.5
U2-4-6*4
HP06-900195
FITTING
HP04-001016
AIR FILTER
U2-4-12*8
U2-4-12*8
HP09-000150
DIGITAL GAUGE
U2-4-4*2.5
HP06-900255
FITTING
B-C
X
Y
[Z
\
]
^
`
_
Page
+$1:+$
79
SM471
PLUS
Air Ass’y (4/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP09-000150 DIGITAL GAUGE 1
2 HP06-900043 JOINT 1
3 HP06-900255 STRAIGHT FITTING 1
4 TE07-900096 ANALOG GAUGE 1
5 HP06-900195 UNION_Y_FITTING 1
6 HP09-001019 REGULATOR 1
7 HP04-001016 FILTER,AIR 1
8 HP06-900050 UNION Y FITTING 1
9 HP06-900027 FITTING 2
Page
+$1:+$
80
SM471
PLUS

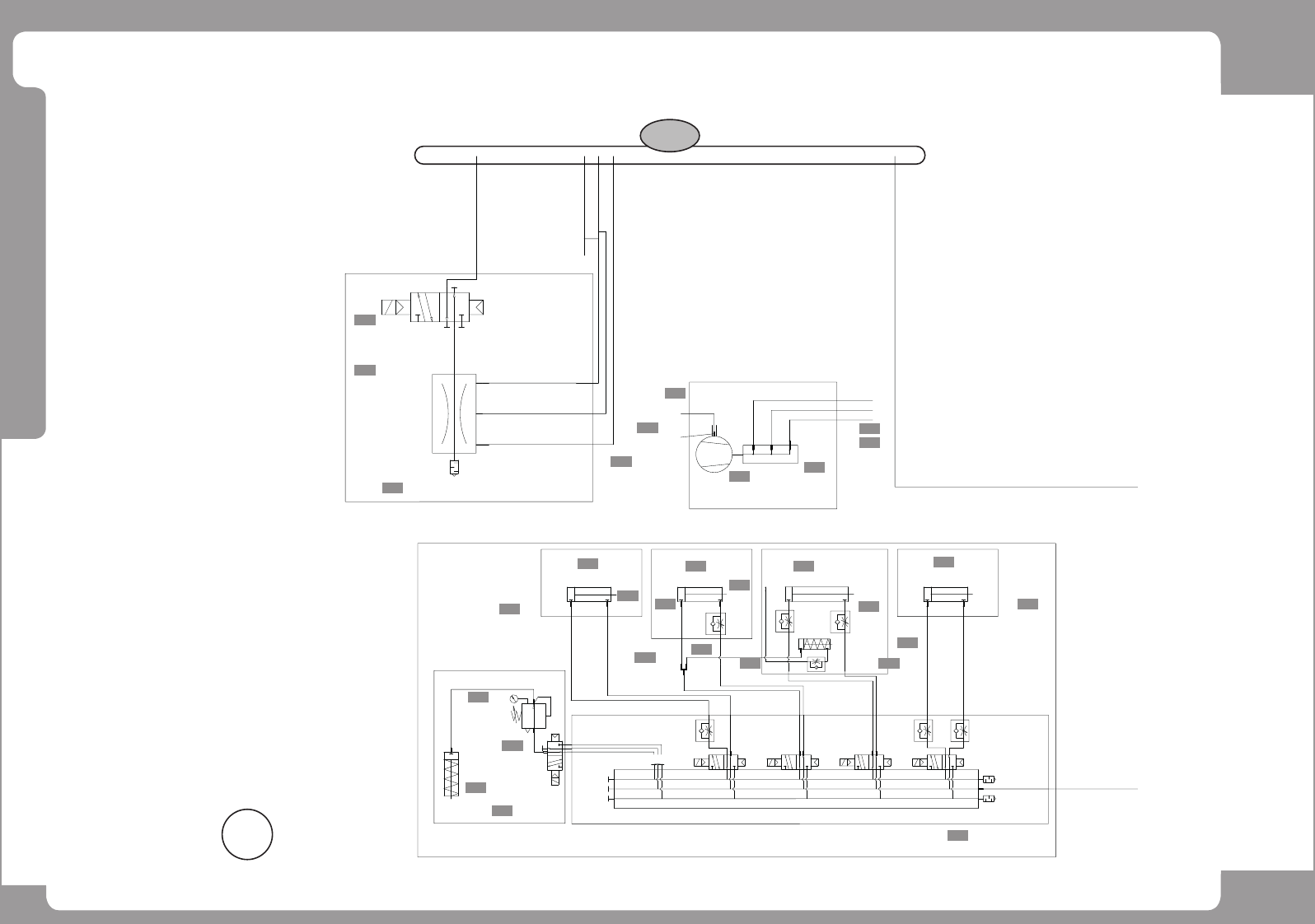

Air Ass’y (5/6)
D
A-B
VACUUM GENERATOR (AIR OPTION)
VACUUM GENERATOR (AIR OPTION)
HP03-001008
HP03-900015
HP03-900013
HP06-900010
HP06-900047
2-HP06-900056
HP06-900263
VACUUM PUMP (AIR OPTION)
초기
진공도달압 : -93.3 kPa
이하
교체 기준 : -87 kPa
VACUUM PUMP (OPTION)
HP06-900054
3-HP06-900027
FRONT CONVEYOR ASS'Y
HP11-000058
HP06-900204
HP03-900017
HP14-000718
SOLENOID VALVE ASS'Y
U2-4-4*2.5(BLUE)
U2-4-4*2.5(YELLOW)
U2-4-4*2.5(BLACK)
HP03-900054
2-HP14-900085
HP06-900027
HP14-900083
3-KPT18
U2-4-8*5
'a'
'b'
'a'
'b'
'c'
'c'
ADAPTER
ELBOW FITTING
ADAPTER
ELBOW FITTING
ELBOW FITTING
HP11-000059
VA
CUUM PUMP
HP06-000250
HP06-000234
HP06-900046
FC28-000105
STRAIGHT NIPPLE
J67191083A
HOSE BAND
HP13-000042
EB
P
EA
A
B
A
B
A
B
A
B
U2-4-4*2.5(BLUE)
HP14-900088
HP06-900255
U2-4-4*2.5(BLUE)
U2-4-4*2.5(BLACK)
U2-4-4*2.5(BLUE)
U2-4-4*2.5(BLACK)
A
B
HP14-000725
SOLENOID VALVE
HP09-900109
REGULATOR
HP03-900044
HP14-000978
SOLENOID VALVE
STOPPER ASSY(WORK)
STOPPER ASSY(IN or OUT)
ANC ASSY
BUT ASSY
EDGE FIXER OPTION (SPECIAL)
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[10]
[8]
[9]
[11]
[12]
[13]
[16]
[14]
[15]
[10]
[17]
[23]
[22]
[18]
[19]
[20]
[24]
[25]
[26]
[27]
[28]
[21]
[29]
